LEYBOLD MAG Series User Manual

GA05141_0702 - 09/2004
25
Description
113
109.5
D
35
Ø 260
A
Ø 262
163
Ø 175
50
72
Forevacuum
connection
16
31
103
98
50°
30
°
30°
30°
30
°
20°
40°
R114,7
8.3
85
Ø 243
M8
G x
F
(=360
° )
B
C
E
11
F

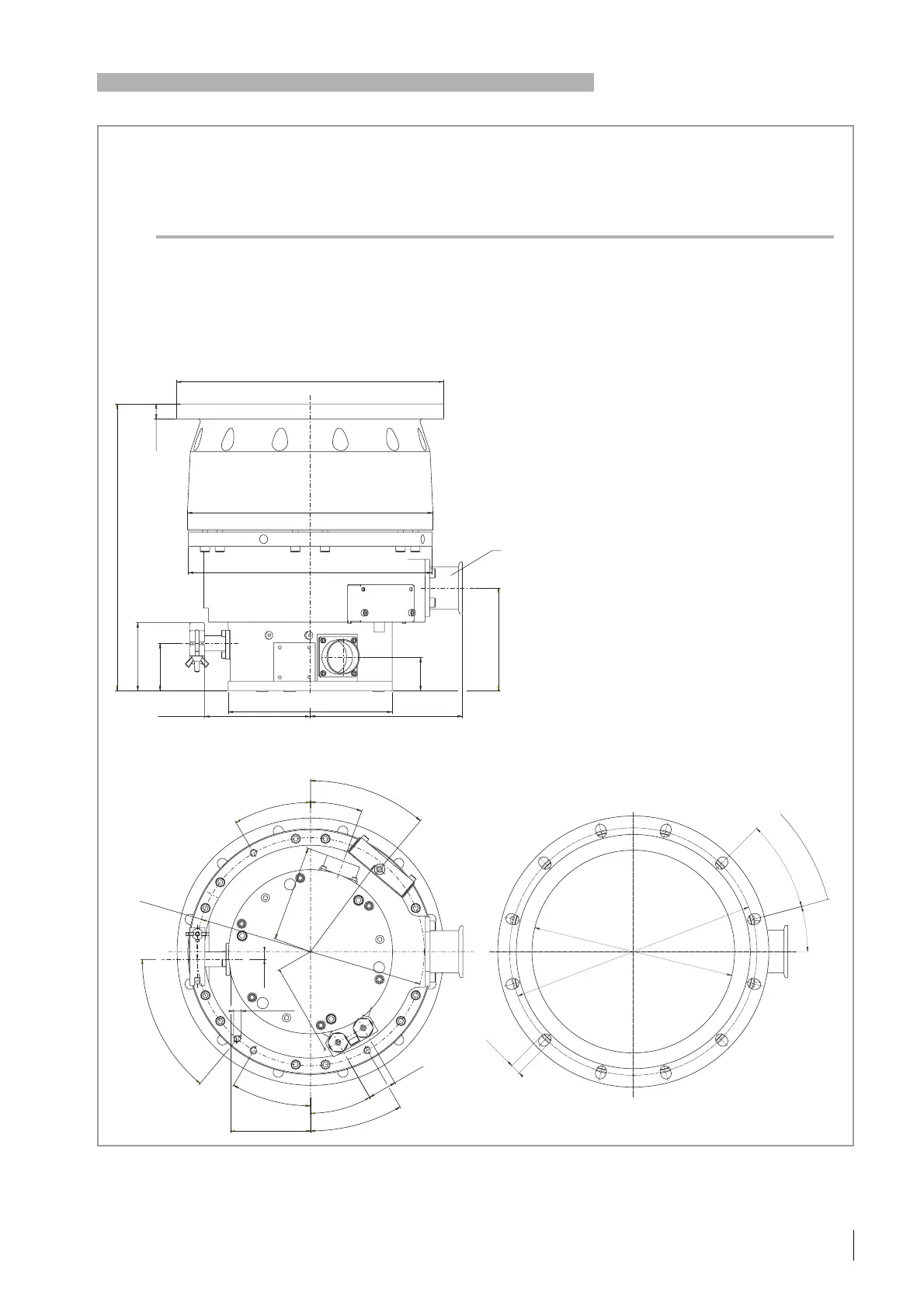

Fig. 11 MAG W 830 C and MAG W 1300 C, dimensions in mm
Inlet flange A B C D E F G Forevacuum connection
MAG W 830 C 160 ISO-F 225 200 151 353 15° 45° 8 DN 40 KF
MAG W 1300 C 200 ISO-F 285 260 213 306 15° 30° 12 DN 40 KF / DN 25 KF
MAG W 1300 C 250 ISO-F 335 310 261 306 15° 30° 12 DN 40 KF
MAG W 1300 C 250 ISO-K 290 – 261 306 – – – DN 40 KF
MAG W 830 C
MAG W 1300 C
