Installation

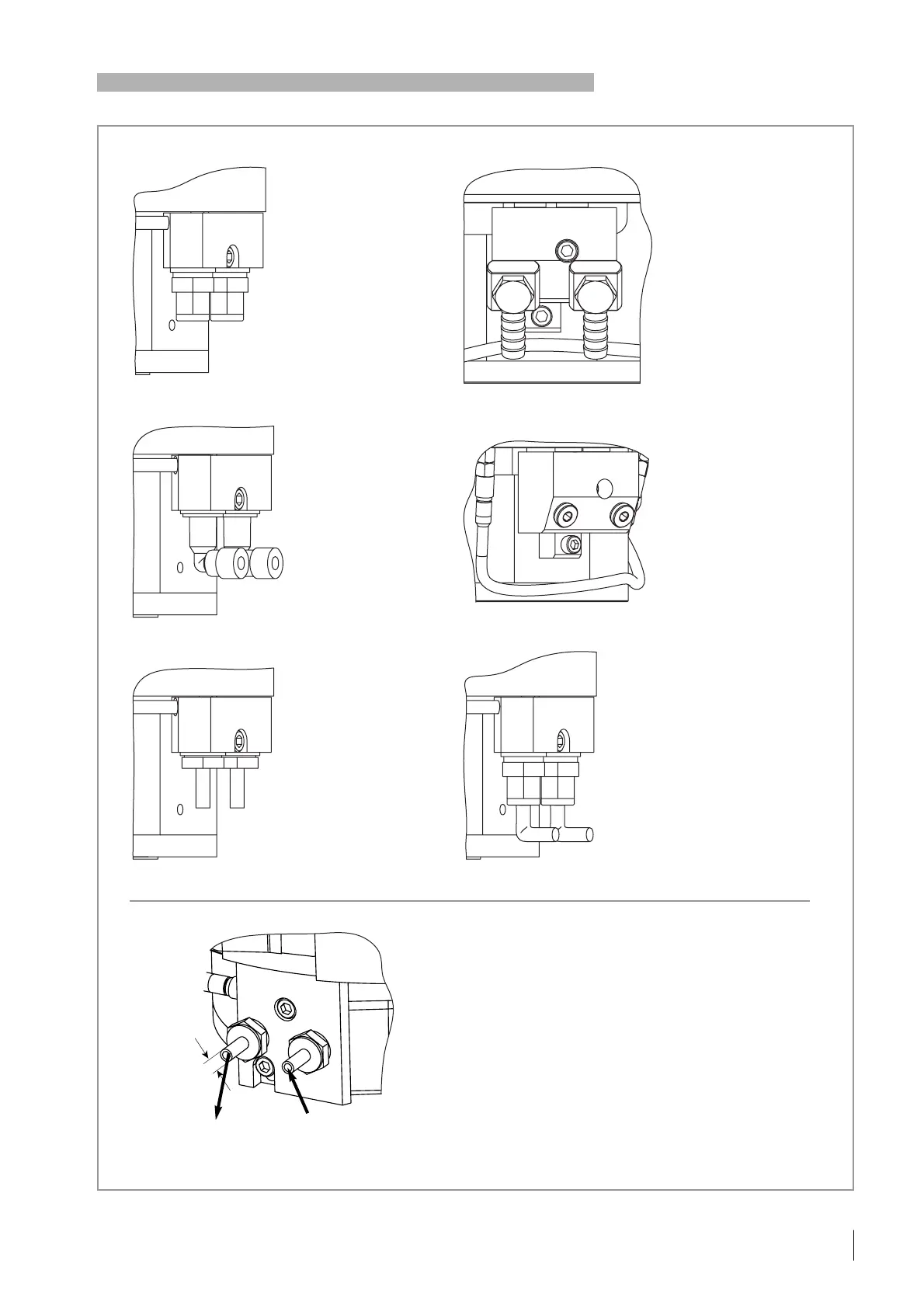

Fig. 37 Connecting the cooling water
Cooling water Cooling water
out in
Ø 1/4“ (6.4 mm)
Do not mix up the inlet and the outlet!
Stainless steel
hose nipples 1/2“
John Guest fitting
for hose
6 mm OD
Swagelock tube fitting
for tube 1/4“
Swagelock tube 1/4“
Swagelock tube 1/4“
Swagelock tube 1/4“
(bended)
Thread G 1/8“
