LEYBOLD MAG Series User Manual

GA05141_0702 - 09/2004
61
Installation

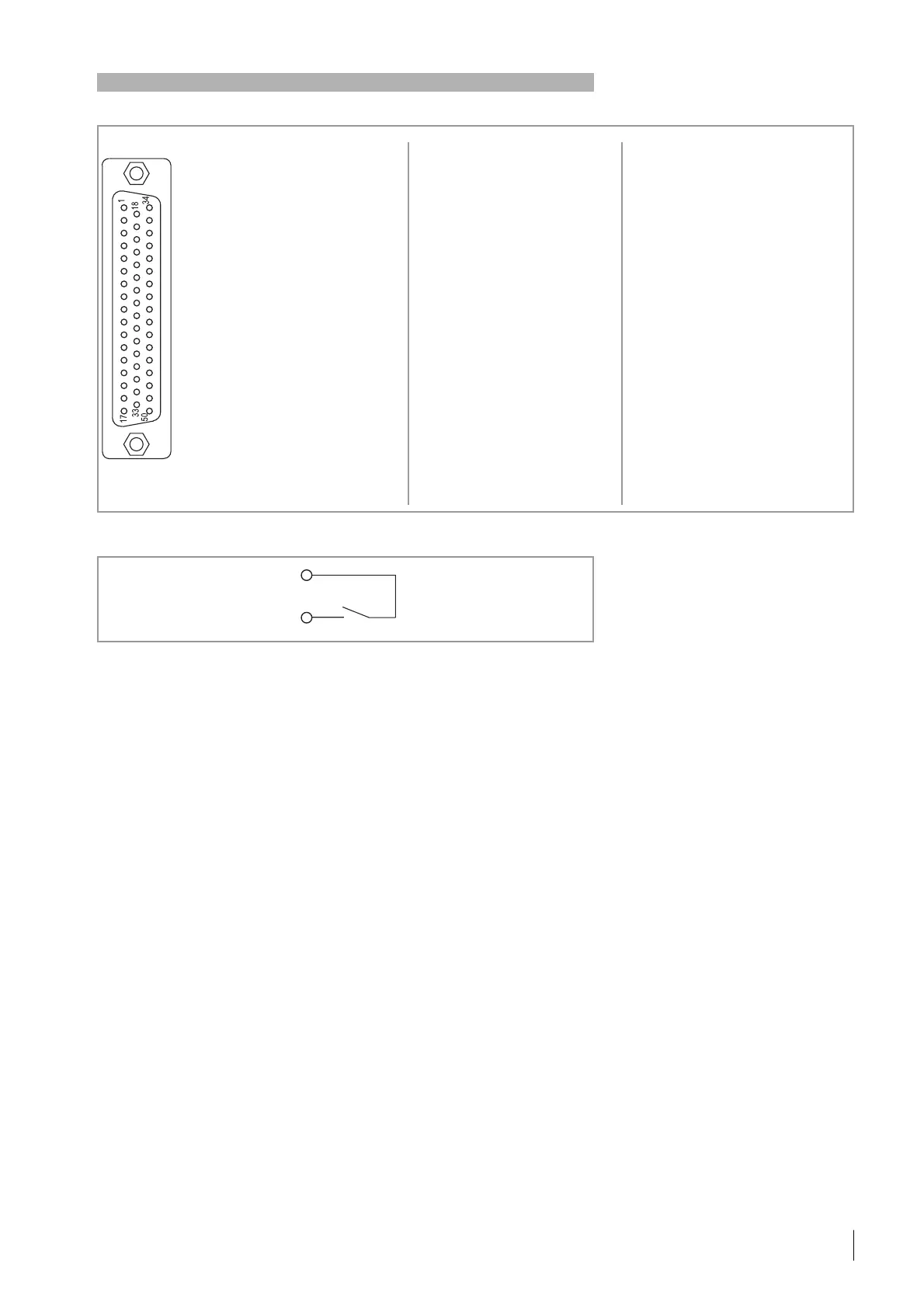

Fig. 44 Assignment control plug X14
X14 50 pole Sub-D I/O
PIN SIGNAL
1 Relay 1 n.o. FAILURE
2 Relay 2 n.o. NORMAL
OPERATION
3 Relay 3 n.o. WARNING
4 Relay 4 n.o. ACCELERATION
5 Relay 5 n.o. DECELERATION
6 Relay 6 n.o. OPTION
7 Relay 7 n.o. OPTION
8 Relay 8 n.o. OPTION
9 Relay 9 n.o. OPTION
10 GND
11 Dig. input REMOTE/LOCAL
12 Dig. input START/STOP
13 Dig. input TMS OFF
14 Dig. input PURGE GAS OFF
15
16 Analog input 1
17 Analog input 2
18 Relay 1 com. FAILURE
19 Relay 2 com. NORMAL
OPERATION
20 Relay 3 com. WARNING
21 Relay 4 com. ACCELERA-
TION
22 Relay 5 com. DECELERA-
TION
23 Relay 6 com. OPTION
24 Relay 7 com. OPTION
25 Relay 8 com. OPTION
26 Relay 9 com. OPTION
27 GND
28 +15V
29 +15V
30 GND
31 GND
32 Analog_GND
33 Analog_GND
34 Relay 1 n.c. FAILURE
35 Relay 2 n.c. NORMAL
OPERATION
36 Relay 3 n.c. WARNING
37 Relay 4 n.c. ACCELERATION
38 Relay 5 n.c. DECELERATION
39 Relay 6 n.c. OPTION
40 Relay 7 n.c. OPTION
41 Relay 8 n.c. OPTION
42 Relay 9 n.c. OPTION
43 GND
44 Dig. input VENTING ON
45 Dig. input Option 1
46 Dig. input Option 2
47 Dig. input EMERGENCY OFF
48 Dig. input EMERGENCY OFF
49
50 Analog output
n.o. = normally open
com. = common
n.c. = normally closed
Fig. 45 Control plug X14: Emergency off
EMERGENCY OFF X14.47
EMERGENCY OFF X14.48
EMERGENCY OFF active
The selection of signals for the option relay and the adjustment of their
thresholds can be achieved via the operator control menu; see Section
3.10.4.
Analog output
The converter has an analog output which provides an analog signal (0..10
V) with a 10-bit resolution. The analog output function can be alternatively
used to output
motor current
actual frequency
motor temperature
rotor displacement signals (PW24, PV13, PZ12)
The output value can be increased or reduced by a scale factor; see
Section 3.10.4 Set Converter.
