Operation
TMS status code
The TMS status code is displayed on the operation display.
No. Code Description
1HHeating pump
2H O K Temp. TMS ok, heater ON
3O KTemp. TMS ok
4C O K Temp. TMS ok, cooling ON
5WTemp. TMS > TMS
Set
+5K
O F F TMS cancelled via control plug X14
6H C O K Temp. TMS ok, cooling ON, heater ON
7N O K Temp. TMS not ok, cooling OFF, heater OFF
8H CTemp. TMS not ok, cooling ON, heater ON
9CTemp. TMS not ok, cooling ON
12 3 2 343 2 646 2 34 5 432
T +5 K
T –5 K
T –1 K
T
set
T +1 K
T +2 K
TMS Code
Heater ON
Cooling ON
Warning
Signal TMS OK
T
TMS
T
A

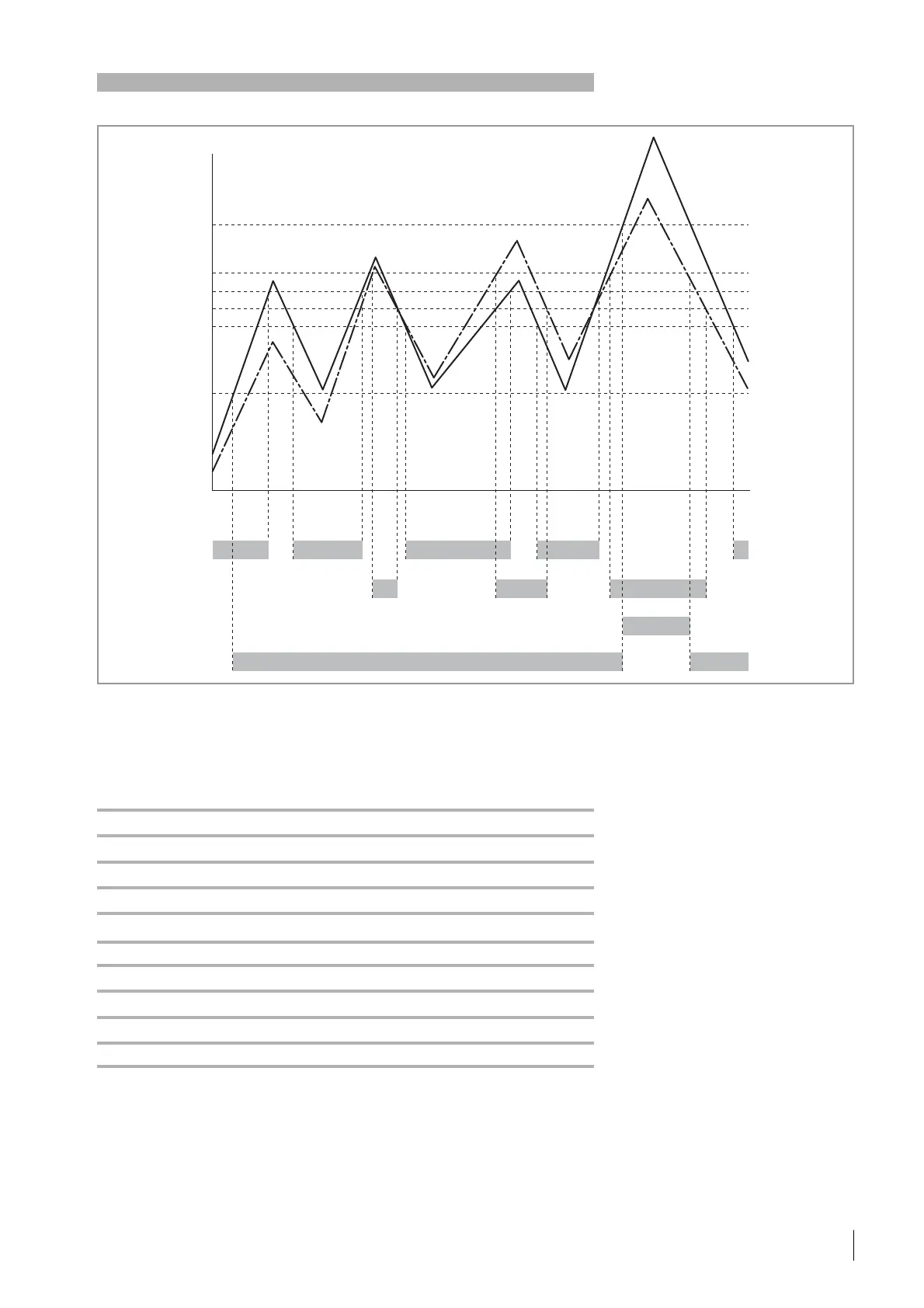

Fig. 51 Typical function diagram TMS for the MAG.DRIVE
digital
