LG MULTI V ARNU12GTRA4

Indoor unit
6 _ Ceiling Cassette 4-way(2)
Indoor Units
Model Gas Liquid

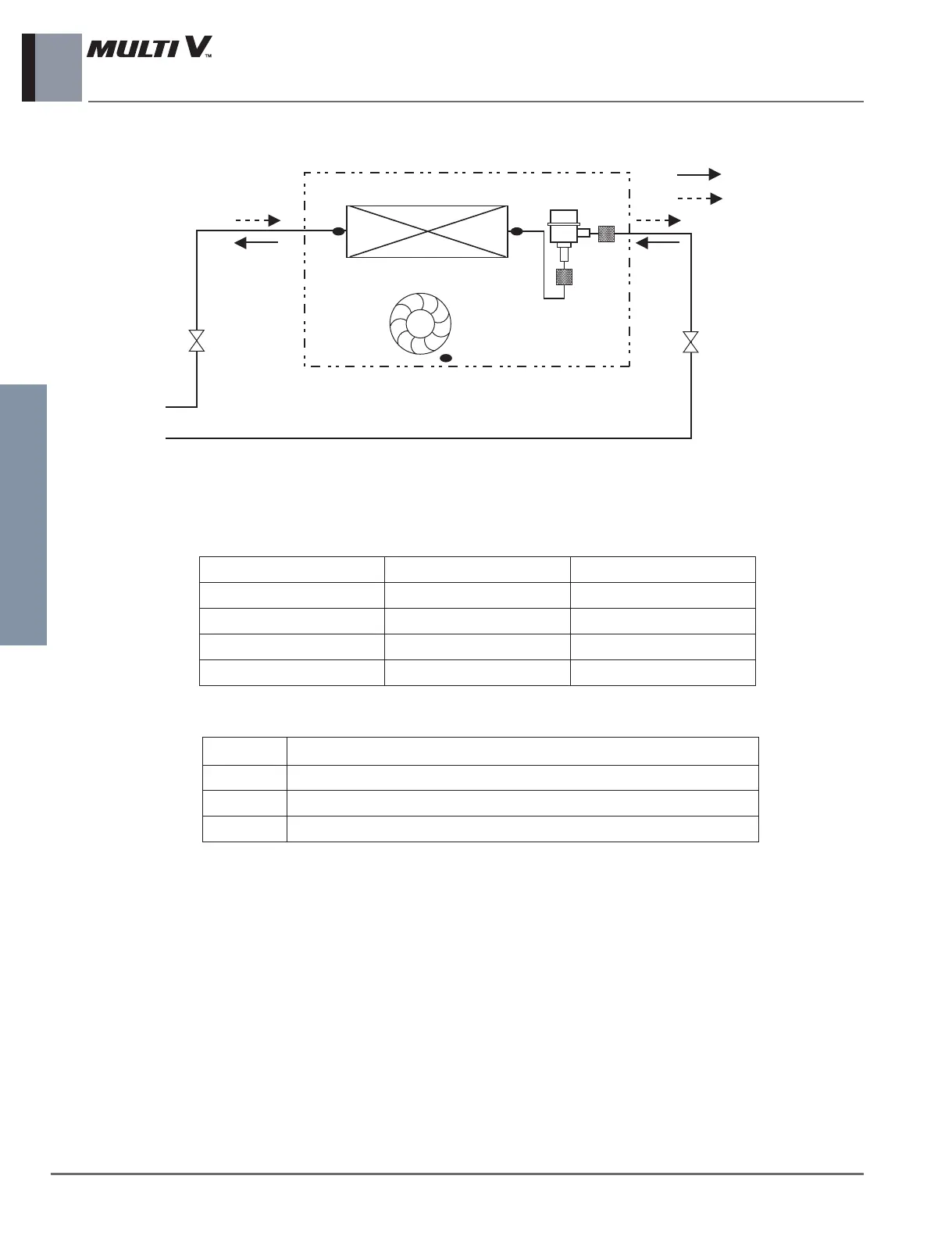

4. Piping Diagrams
Heat Exchanger
Turbo Fan
Th3
Th1
Th2
lndoor unit
EEV
:Heating
:Cooling
Filter
Filter
Refrigerant pipe connection port diameter
[Unit: mm(inch)]
ARNU07GTN*4
ARNU15GTN*4
ARNU18GTN*4
ARNU24GTM*4
Ø15.88(5/8)
Ø15.88(5/8)
Ø15.88(5/8)
Ø15.88(5/8)
Ø9.52(3/8)
Ø9.52(3/8)
Ø9.52(3/8)
Ø9.52(3/8)
LOC. Description
Th1 Room thermistor
Th2 Pipe in thermistor
Th3 Pipe out thermistor
