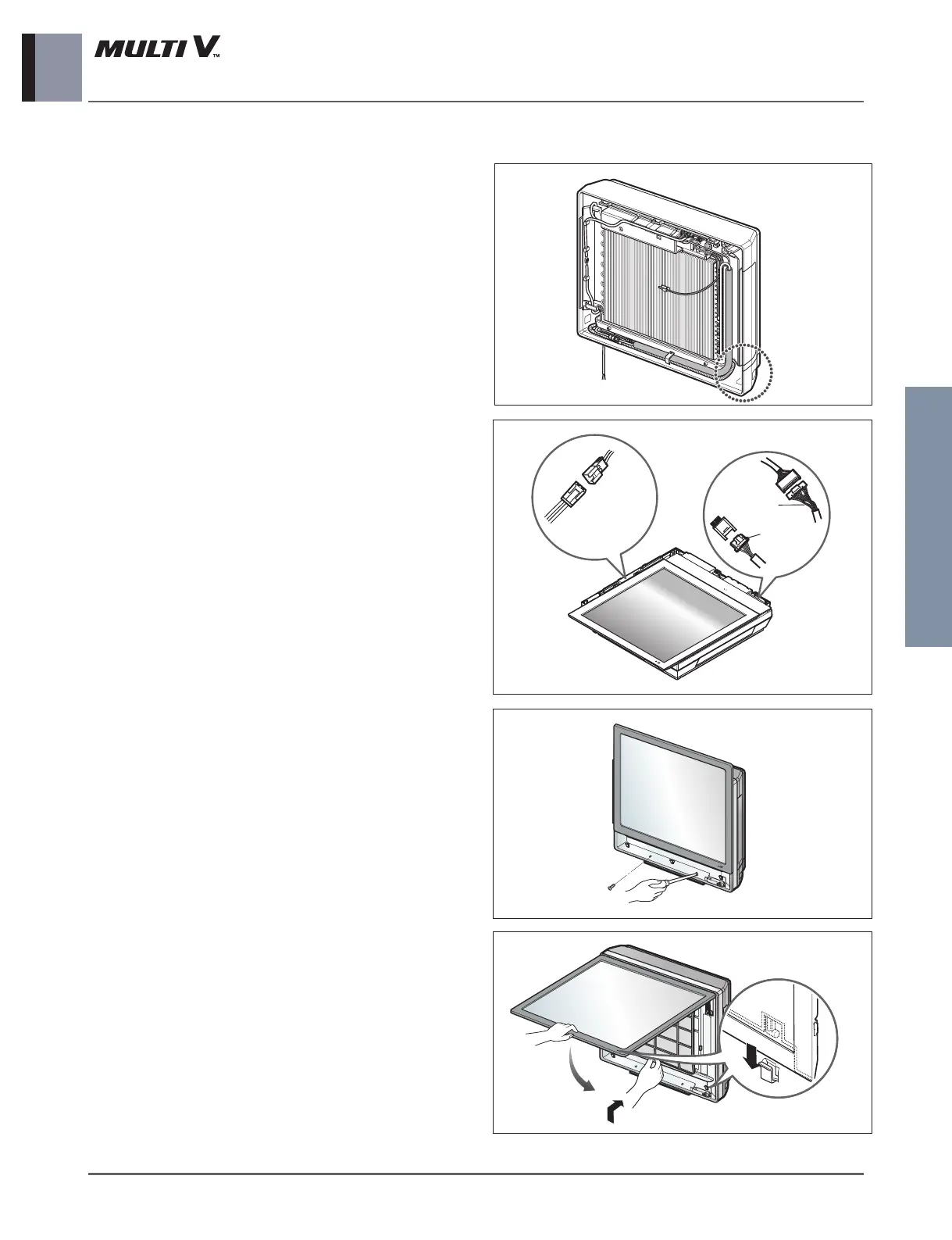

Indoor unit
ARTCOOL (Gallery) _ 17
Indoor Units
1. First, Check the side cover assembly
exactly, and fix the power cord in the
bottom groove of cover side left.
2. Assemble connecting lead wire with
controller, fix the upper part of panel
front, and match the lower part of panel
front.
3. Screw up panel front, and suspend the
hook of panel front in the groove.
10.6 Panel Front Assembly
10. Installation
Comm. PCB
Connector
Panel Front
Connector
Comm. PCB
Connector
