Refrigerant pipe connection port diameter
*Panel color :E(Red), V(Silver), G(Gold), 1(Kiss (Photo changeable))
Model
ARNU07GSF14 Ø12.7(1/2) Ø6.35(1/4)
ARNU09GSF14 Ø12.7(1/2) Ø6.35(1/4)
ARNU12GSF14 Ø12.7(1/2) Ø6.35(1/4)
Gas Liquid
[Unit: mm(inch)]
LOC. Description PCB Connector
Th1 Thermistor for inlet air temperature
CN-TH1
Th2 Thermistor for EVA. in temperature
Th3 Thermistor for EVA. out temperature CN-TH2

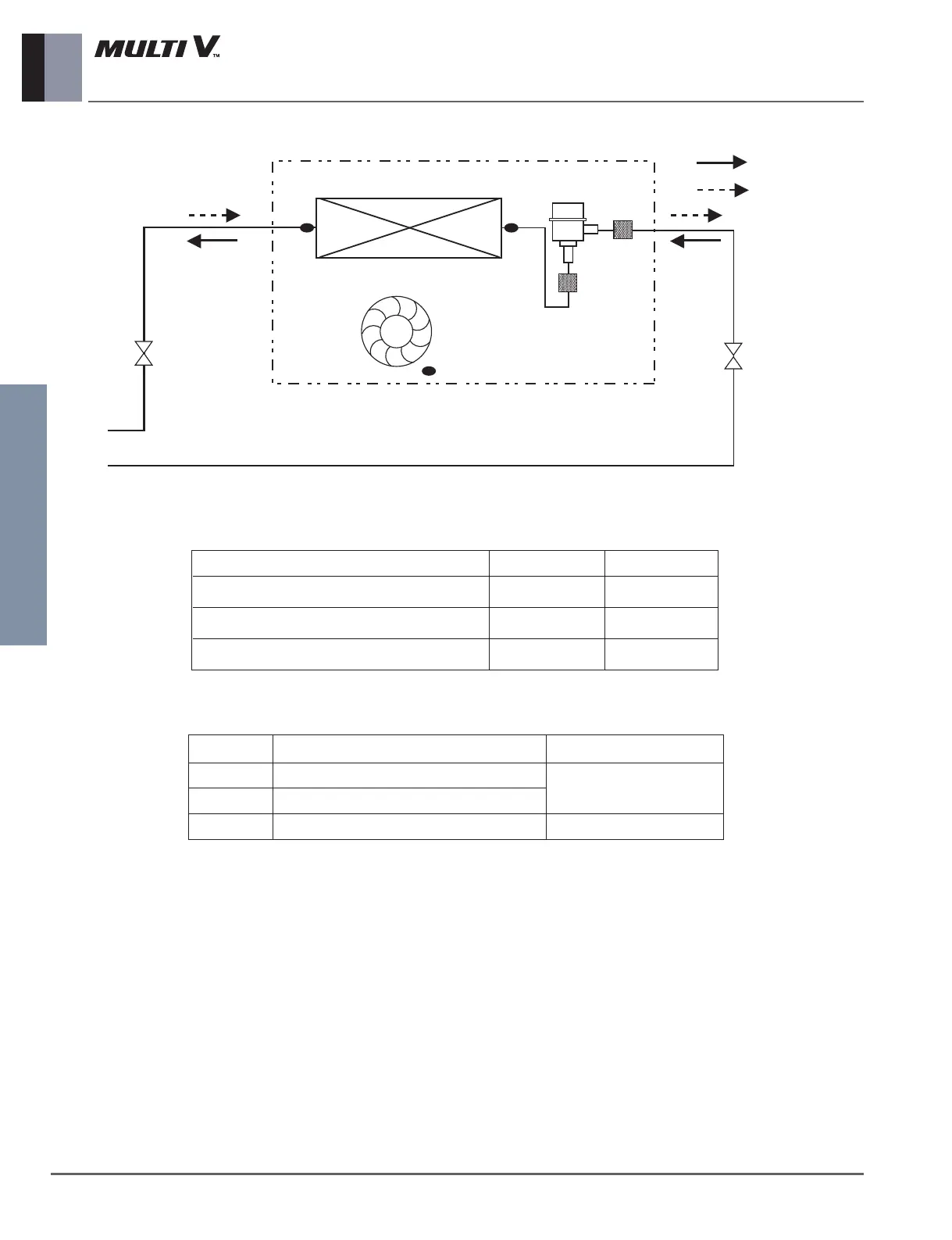

4. Piping Diagrams
4 _ ARTCOOL (Gallery)
