LG MULTI V ARNU12GTRA4

Indoor unit
Ceiling Concealed Duct(Low Static) _ 15
Indoor Units

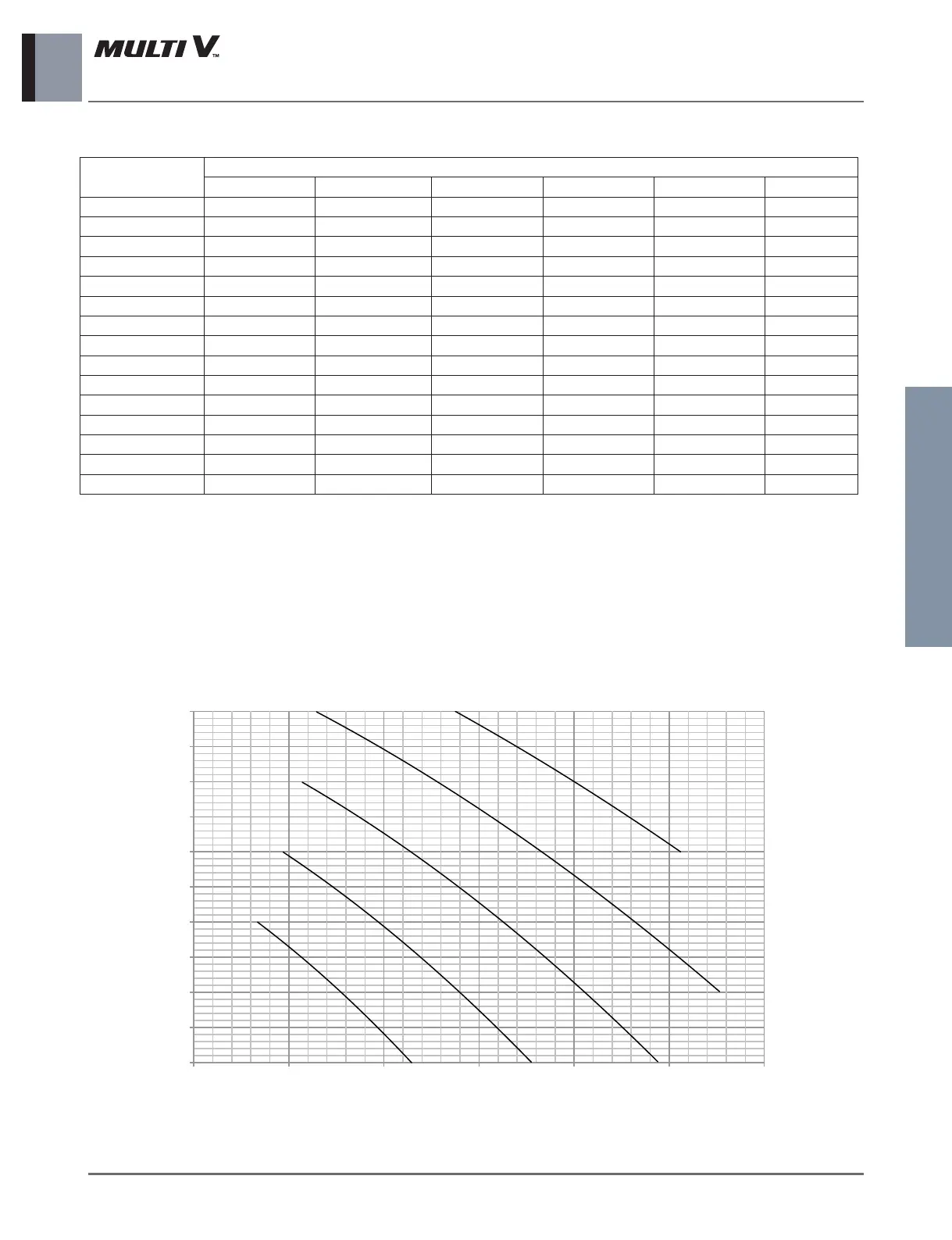

7. External Static Pressure (E.S.P) & Air Flow
Setting Value
Static Pressure(mmAq(Pa))
0 (0) 1 (10) 2 (20) 3 (29) 4 (39) 5 (49)
60 - - - - - -
65 5.03 - - - - -
70 5.60 4.85 - - - -
75 6.19 5.44 4.57 - - -
80 6.79 6.05 5.17 - - -
85 7.41 6.67 5.80 4.80 - -
90 8.05 7.31 6.43 5.44 - -
95 8.71 7.96 7.09 6.09 4.97 -
100 9.38 8.63 7.76 6.76 5.64 -
105 10.07 9.32 8.45 7.45 6.33 5.08
110 - 10.03 9.16 8.16 7.04 5.79
115 - - 9.88 8.88 7.76 6.51
120 - - - 9.62 8.50 7.25
125 - - - 10.38 9.26 8.01
130 - - - - 10.03 8.78
ARNU05GL1G4, ARNU07GL1G4, ARNU09GL1G4
(Unit : CMM)
Note :
1. The above table shows the correlation between the air rates and E.S.P.
ARNU05GL1G4, ARNU07GL1G4, ARNU09GL1G4
Fan Performance
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
External Static Pressure(mmAq)
4.5 5.5 6.5 7.5 8.5 9.5 10.5
Air Flow (CMM)
80 SV 90 SV
120 SV
110 SV
100 SV
