LG MULTI V ARNU12GTRA4

Indoor unit
28 _ Ceiling Concealed Duct(Low Static)
Indoor Units
10. Installation
10.1 Selection of the best location
Install the air conditioner in the location that satisfies the
following conditions.
• The place shall easily bear a load exceeding four times
the indoor unit’s weight.
• The place shall be able to inspect the unit as given in
the
figure.
• The place where the unit shall be leveled.
• The place shall allow easy water drainage.(Suitable
dimension “H” is necessary to get a slope to drain as
figure.)
• The place shall easily connect with the outdoor unit.
• The place where the unit is not affected by an electrical
noise.
• The place where air circulation in the room will be good
.
• There should not be any heat source or steam near the
unit.
• The servicing inspection hole in the ceiling should be as
large as the product.
• The selection of the servicing hole should be approved
by the customer.

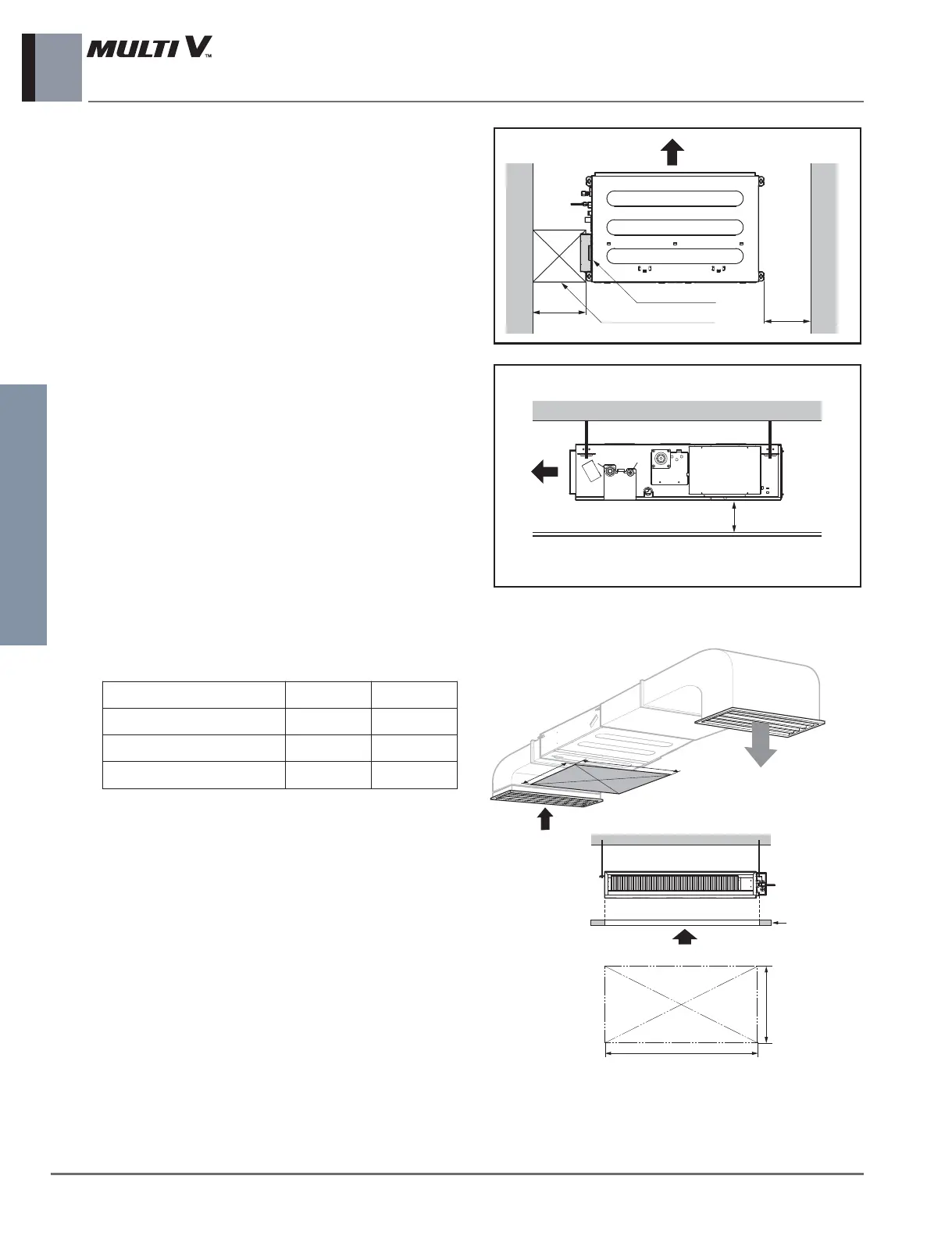

Inspection hole
(600 x 600)
Control box
H=20 or more
• Suitable dimension "H" is necessary to get a slope
to drain as shown in the figure
Side view (unit: mm)
600
600
(Unit: mm)
Top view
A(Min)
Ceiling
Service Space
A
B
B(Min)
(Unit: mm)
[L1 / L2 / L3 Chassis]
Capacity (kBtu/h) A B
5/7/9 800 800
12/15/18 800 1000
21/24 800 1200
