Ceiling Concealed Duct(Low Static) _ 31
Indoor Units
10. Installation
10.5 Checking the Drainage
• Spray one or two glasses of water on the evaporator.
• Ensure that water flows drain hose of indoor unit without any leakage.
10.4 Connecting Cables

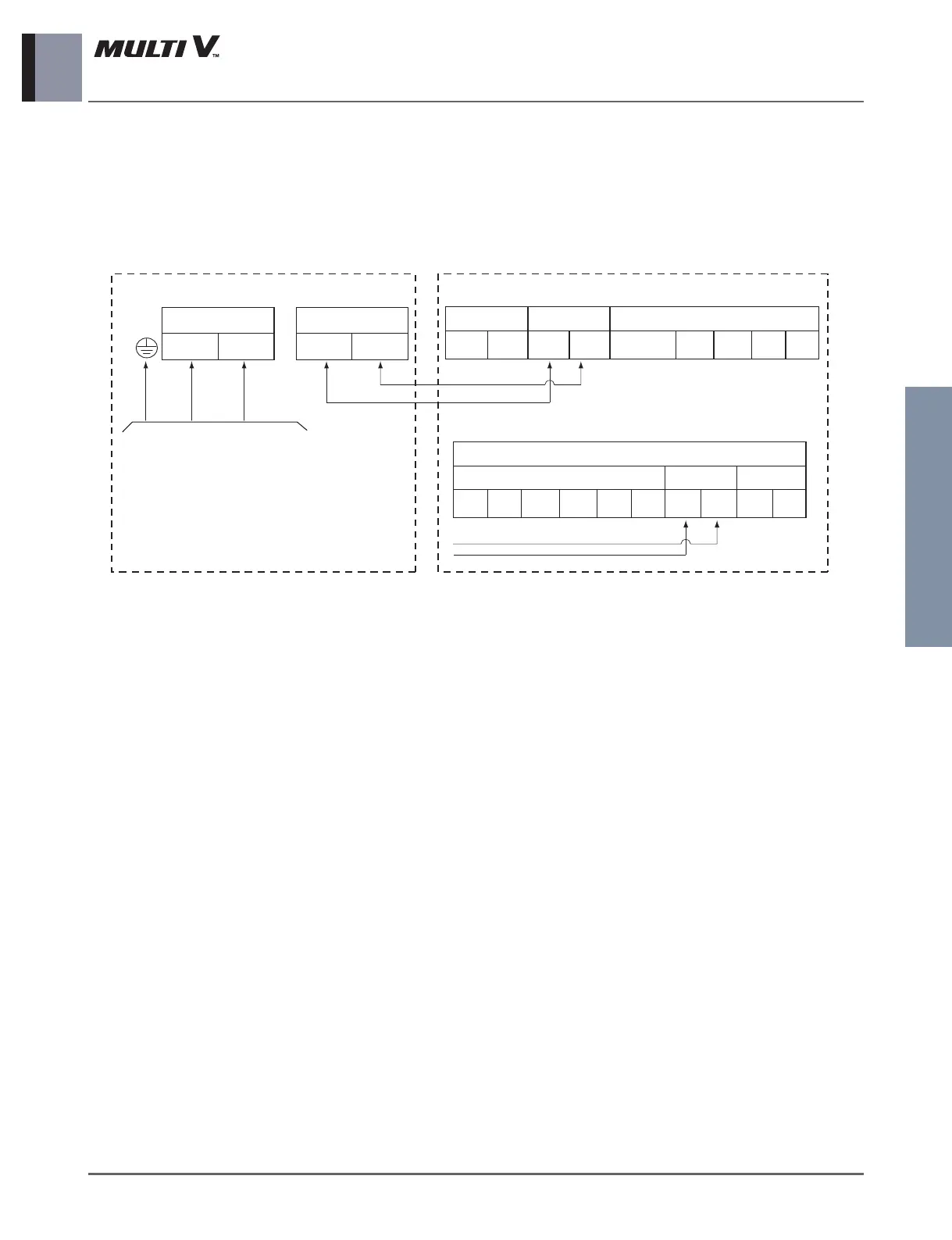

Connect the wires to the terminals on the control board individually according to the outdoor unit connection.
• Ensure that the color of the wires of outdoor unit and the terminal No. are the same as those of indoor unit respectively
Clamping of cables
1) Arrange 2 power cables on the control panel.
2) First, fasten the steel clamp with a screw to the inner boss of control panel.
3)
For the cooling model, fix the other side of the clamp with a screw strongly. For the heat pump model, put the
0.75mm
2
cable(thinner cable) on the clamp and tighten it with a plastic clamp to the other boss of the control panel.
To Next Page
