10.5 Installation of Decoration Panel(Grille Type)
1. Open the air outlet vane, and extract side covers.
2. Remove the air inlet grille from the decoration panel.
3. Hook decoration panel to indoor unit, using hooks attached at the backside of both side of decoration
panel.
4. Arrange wires not to get caught between decoration panel and indoor unit.
5. Screw 7 fixing screws. (7,9,12kBtu : 6 screws)
6. Connect the vane motor connector and display connector. (Plasma connector for plasma model)
7. Install the air inlet grille (including the air filter) and side covers.

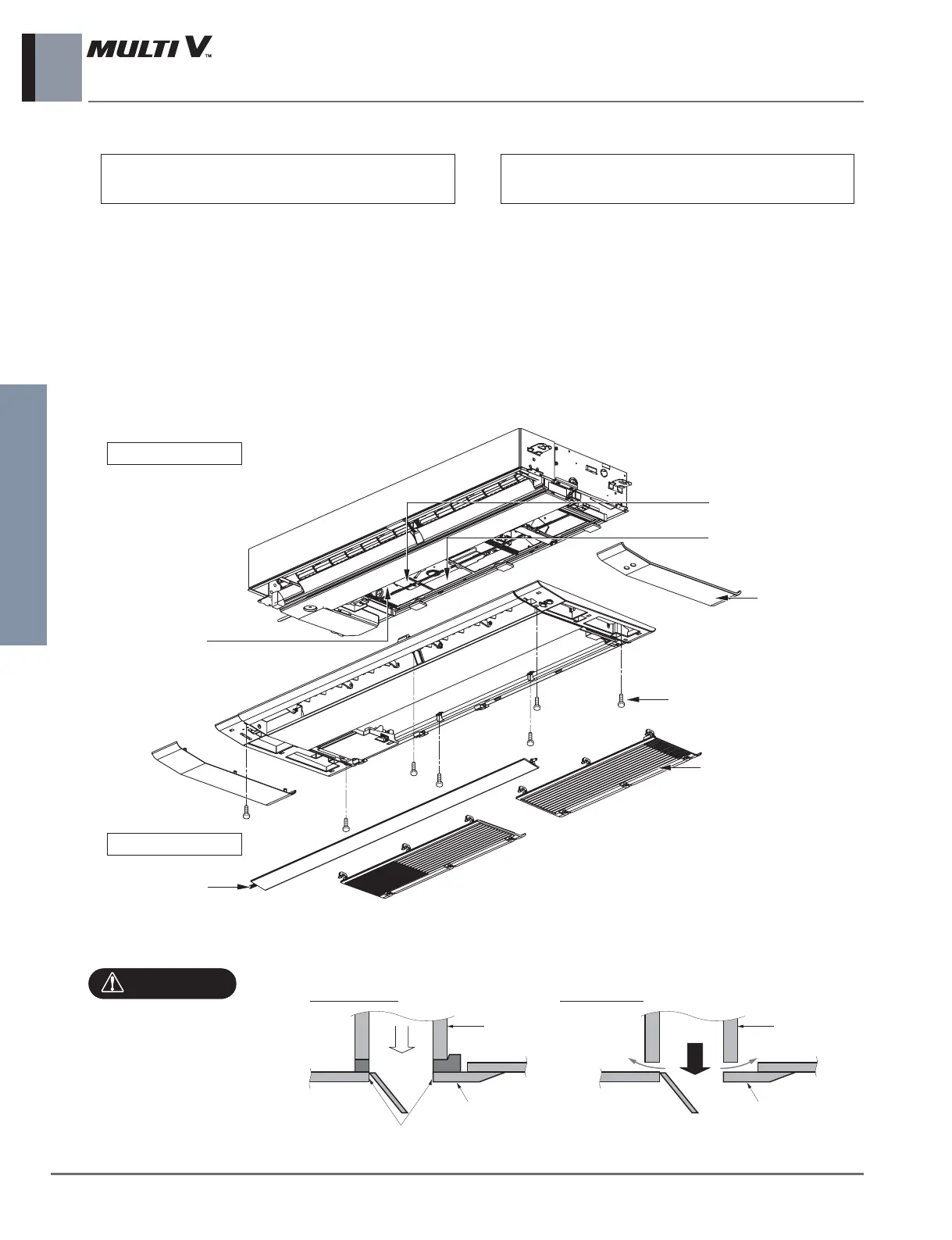

Air conditioner unit
Decorative panel
Plasma filter
(applied only to plasma model)
Mesh
Control box cover
Decorative panel
fixing screws
(hexagon M6 screws)
(tightening about 20mm)
Side cover
Air inlet grille
Air inlet grille
The decoration panel has its installation
direction.
Before installing the decoration panel,
always remove the paper template.
Install certainly the
decoration panel.
Cool air leakage caus-
es sweating.
 Waterdrops fall.
Cool air leakage
(no good)
Decorative panel
Air conditioner
unit
Ceiling
board
Fit the insulator (this part) and
be careful for cool air leakage
Decorative panel
Air conditioner
unit
Ceiling
board
Good example Bad example
