SODU B SODU A
IDU B IDU A INT B INT A
A-- ----BAB
GND 12V
DRY2DRY1
INTERNETIDUSODU
[Type 2]

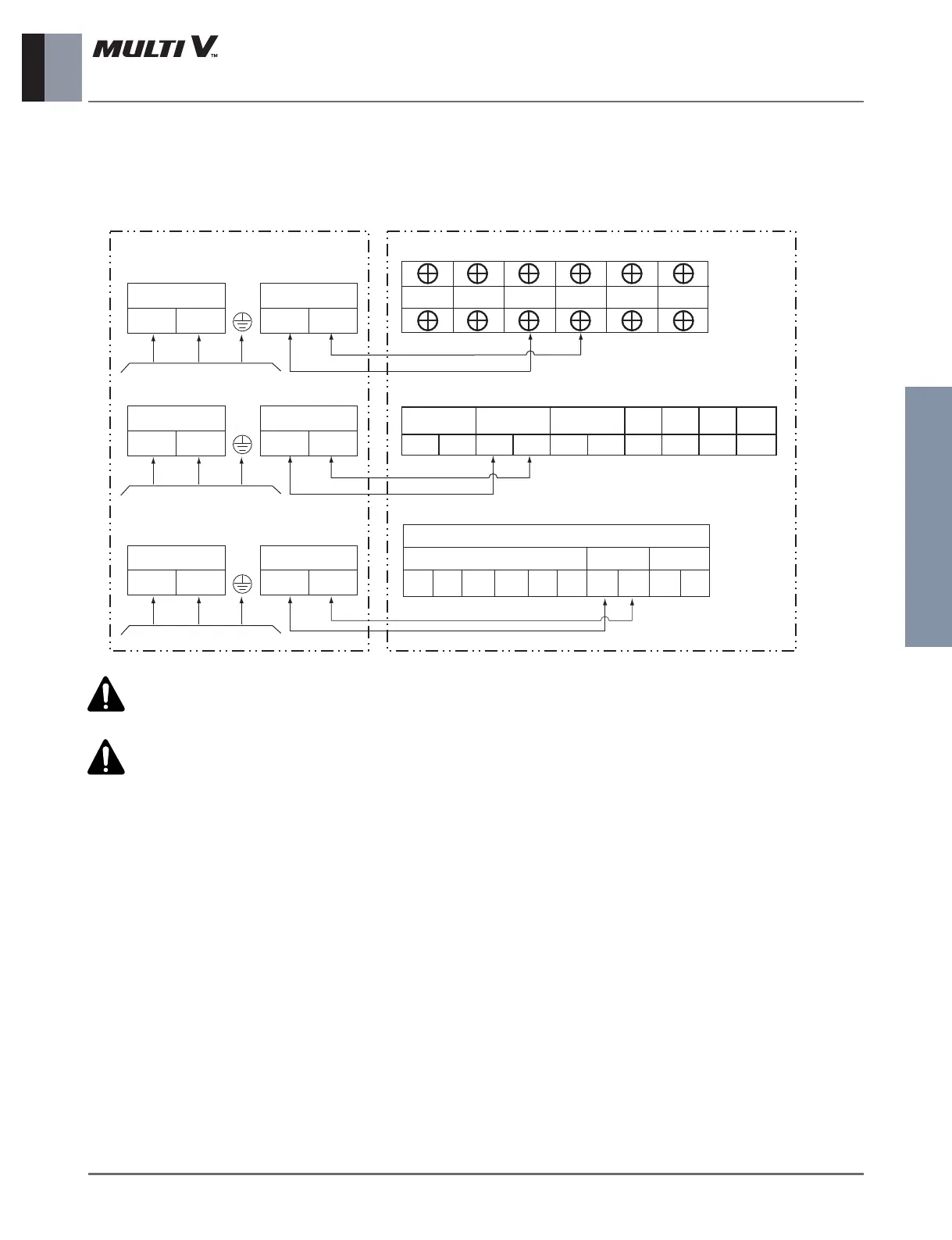

Terminal block of outdoor unit
IDU IDU
Outdoor unit
Indoor unit
Central controller
SODU SODU
DRY2GND12V
DRY1
CEN
CEN
[Type 3]
[Type 1]
[Indoor Unit side]
[Outdoor Unit side]
Terminal Block Indoor Terminal Block Indoor
L(L1) N(L2) 3(A) 4(B)
INDOOR POWER INPUT
Terminal Block Indoor Terminal Block Indoor
L(L1) N(L2) 3(A) 4(B)
INDOOR POWER INPUT
Terminal Block Indoor Terminal Block Indoor
L(L1) N(L2) 3(A) 4(B)
INDOOR POWER INPUT
WARNING : Make sure that the screws of the terminal are free from looseness.
CAUTION:
After the confirmation of the above conditions, prepare the wiring as follows:
1) Never fail to have a separate power circuit specifically for the air conditioner. As for the method of
wiring, follow the circuit diagram posted on the inside of control cover.
2) The screw which fasten the wiring in the casing of electrical fittings are liable to come loose from
vibrations to which the unit is subjected during the course of transportation. Check them and make
sure that they are all tightly fastened. (If they are loose, it could cause burn-out of the wires.)
3) Specification of power source.
4) Confirm that electrical capacity is sufficient.
5) See to that the starting voltage is maintained at more than 90 percent of the rated voltage marked
on the name plate.
6) Confirm that the cable thickness is as specified in the power source specification.
(Particularly note the relation between cable length and thickness.)
7) In a wet or moist area, always install an earth leakage circuit breaker.
8) The following would be caused by voltage drop.
• Vibration of a magnetic switch, which will damage the contact point, fuse breaking, disturbance of the nor-
mal function of the overload.
9) The means for disconnection from a power supply shall be incorporated in the fixed wiring and
have an air gap contact separation of at least 3mm in each active(phase) conductor.
Floor Standing _ 25
10. Installation
