LG MULTI V ARNU12GTRA4

Wall Mounted Unit (Standard) _ 9

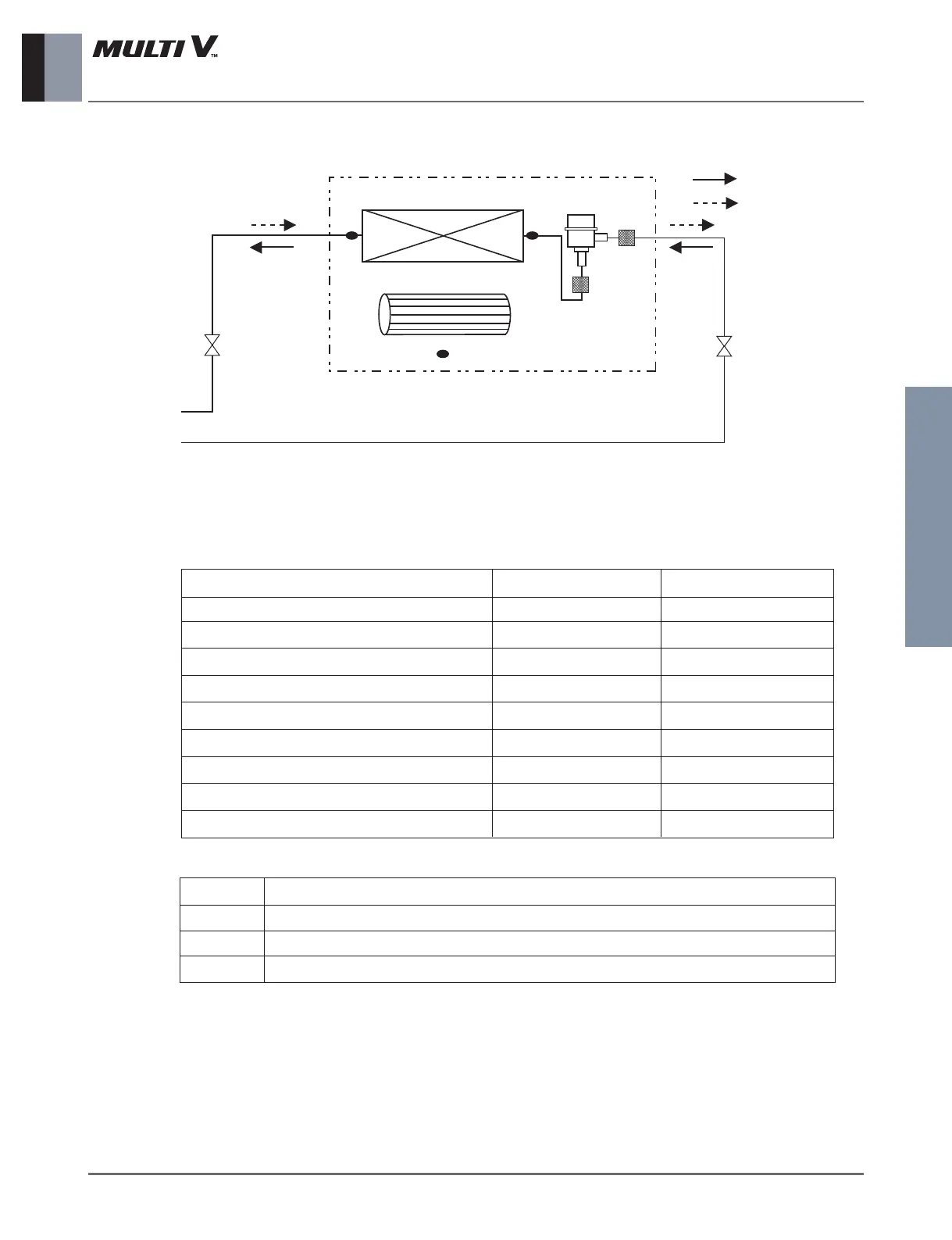

4. Piping Diagrams
Indoor unit
Indoor Units
Heat Exchanger
C.F.F
lndoor unit
EEV
:Heating
:Cooling
Filter
Filter
Th3
Th2
Th1
Refrigerant pipe connection port diameter
MODEL GAS LIQUID
Ø12.7(1/2) Ø6.35(1/4)
Ø12.7(1/2) Ø6.35(1/4)
Ø12.7(1/2) Ø6.35(1/4)
Ø12.7(1/2) Ø6.35(1/4)
Ø12.7(1/2) Ø6.35(1/4)
Ø12.7(1/2) Ø6.35(1/4)
Ø15.88(5/8) Ø9.52(3/8)
Ø15.88(5/8) Ø9.52(3/8)
Ø15.88(5/8) Ø9.52(3/8)
[Unit: mm(inch)]
LOC. Description
Th1 Room thermistor
Th2 Pipe in thermistor
Th3 Pipe out thermistor
ARNU05GSB*4
ARNU07GSB*4
ARNU09GSB*4
ARNU12GSB*4
ARNU15GSB*4
ARNU18GSC*4
ARNU24GSC*4
ARNU30GSVA4
ARNU36GSVA4
