LG MULTI V ARNU12GTRA4

Indoor unit
Ceiling Concealed Duct(Low Static) _ 29
Indoor Units
10. Installation
n Installation of Unit
Install the unit above the ceiling correctly.
• Apply a joint-canvas between the unit and duct to
absorb unnecessary vibration.
• Install the unit leaning to a drainage hole side as
a figure for easy water drainage.

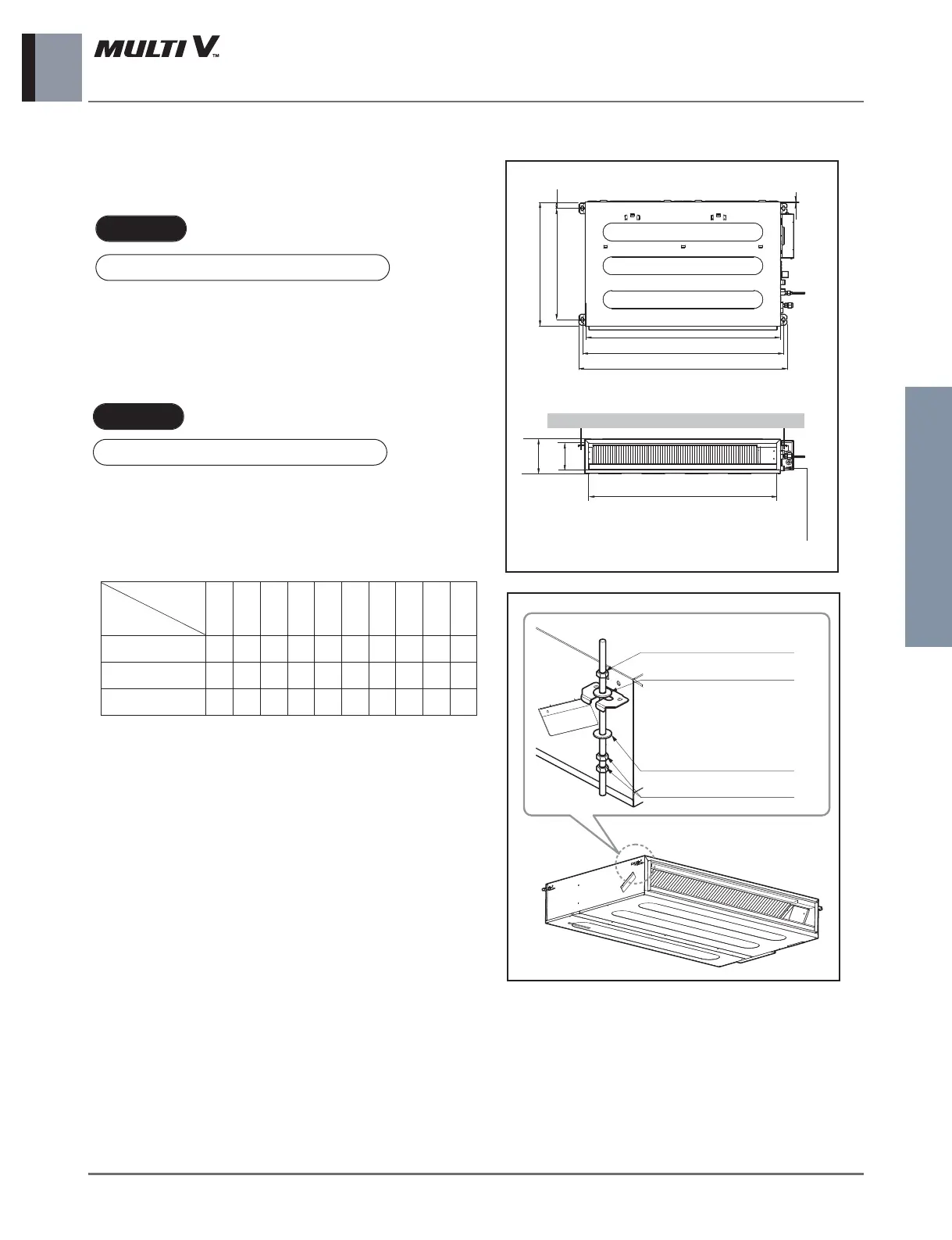

10.2 Ceiling dimension and hanging bolt location
• A place where the unit will be leveled and that can sup-
port the weight of the unit.
• A place where the unit can withstand its vibration.
• A place where service can be easily performed.
CASE 1
POSITION OF SUSPENSION BOLT
CASE 2
POSITION OF CONSOLE BOLT
M10 Nut
M10 washer
X 4
X 4
M10 Nut
M10 washer
X 4
X 8
C
E
G
D
F
I
A
J
B
H
Drainage hole
(Unit:mm)
Dimension
Capacity(kBtu/h)
A B C D E F G H I J
5/7/9 733 772 628 700 36 190 20 660 155 700
12/15/18 933 972 628 700 36 190 20 860 155 900
21/24 1133 1172 628 700 36 190 20 1060 155 1100
