LG MULTI V ARNU12GTRA4

10. Installation
20 _ Ceiling Concealed Duct_Built in (Low Static)
Indoor unit
Indoor Units
Installation of Unit
Install the unit above the ceiling correctly.
• Apply a joint-canvas between the unit and duct to absorb
unnecessary vibration.
• Apply a filter Accessory at air return hole.
• Install the unit leaning to a drainage hole side as a figure
for easy water drainage.
• A place where the unit will be leveled and that can support
the weight of the unit.
• A place where the unit can withstand its vibration.
• A place where service can be easily performed.

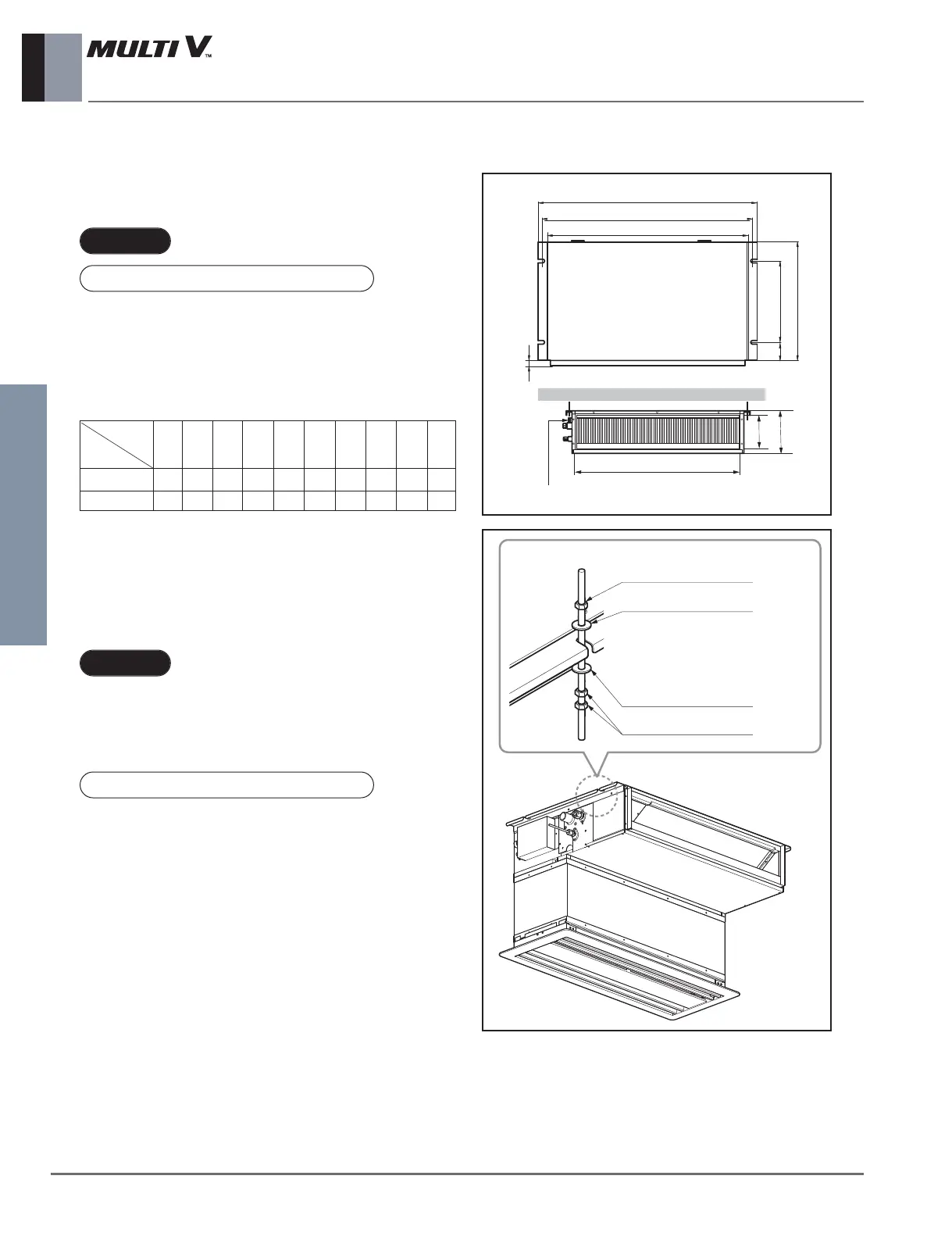

CASE 1
POSITION OF SUSPENSION BOLT
CE
G
D
A
J
B
M10 Nut
M10 washer
X 4
X 4
M10 Nut
M10 washer
X 4
X 8
I
F
H
Drainage hole
Drain Pump use
CASE 2
POSITION OF CONSOLE BOLT
10.2 Ceiling dimension and hanging bolt location
(Unit:mm)
B3 850 900 383 575 93 190 21 795 163 820
B4 1130 1180 383 575 93 190 21 1065 163 1100
Dimension
Chassis
ABCDEFGH I J
