LG MULTI V ARNU12GTRA4

Indoor unit
10. Installation
Ceiling Cassette 2-way _ 19
Indoor Units

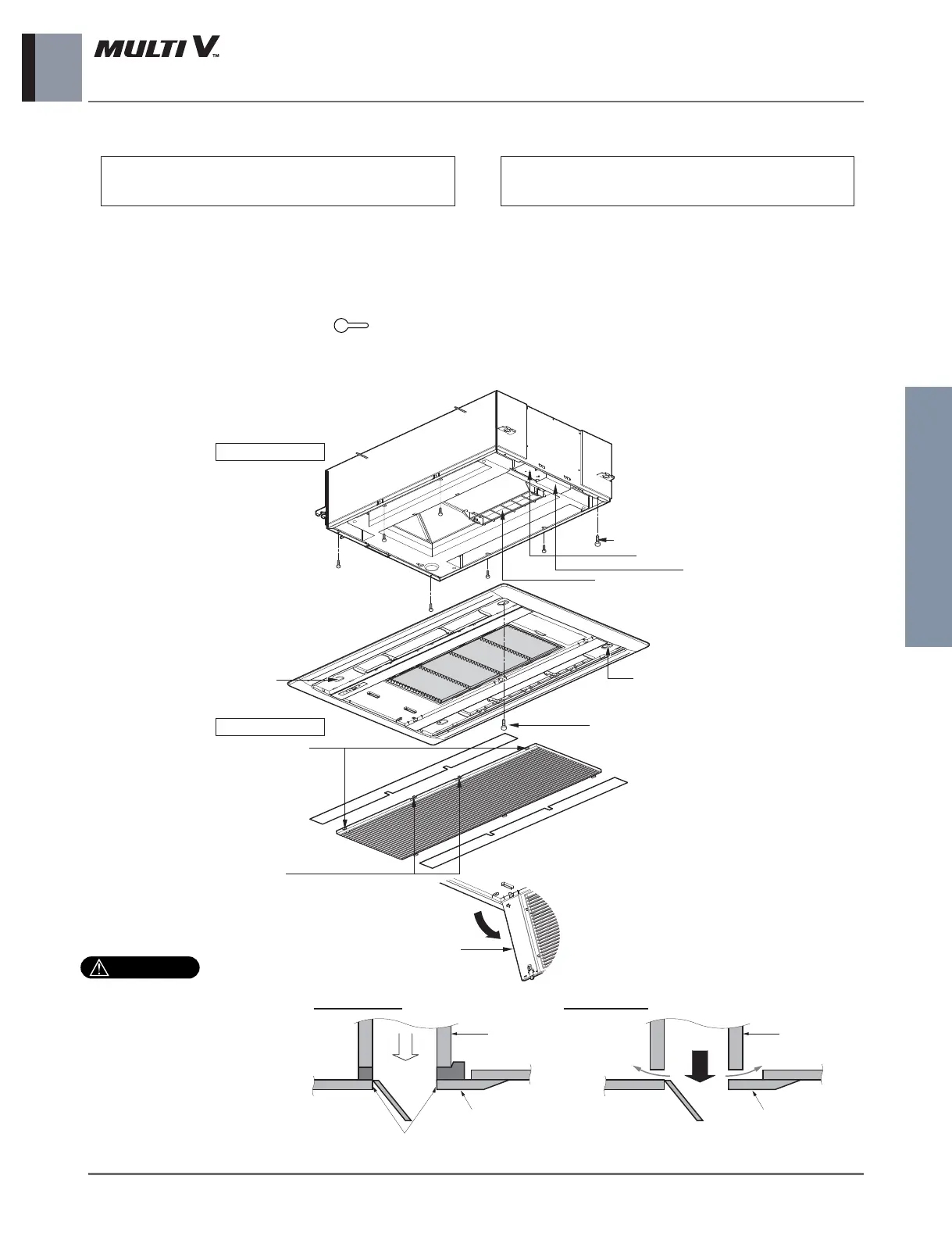

10.4 Installation of Decoration Panel
1. Temporarily fix two decoration panel fixing screws (hexagon M5 screw) on the unit body. (Tighten by amount 10mm in
length.)
The fixing screws (hexagon M5 screw) are included in the indoor unit box.
2. Remove the air inlet grille from the decoration panel. (Remove the hook for the air inlet grille cord.)
3. Hook the decoration panel key hole ( ) on the screws fixed in step above, and slide the panel so that the screws
reach the key hole edge.
4. Retighten completely two temporarily fixed screws and other two screws. (Total 4 screws)
5. Connect the louver motor connector and display connector.
6. After tightening these screws, install the air inlet grille
(including the air filter).
Piping side
Air conditioner unit
Decorative panel
Push
Decorative panel
fixing screws
(hexagon M6 screws)
Temporary fitting
at 2 poles
(Tightening about 10mm)
Control box cover
Cover
Plasma filter
Key holes
Decorative panel
fixing screws
(Hexagon M6 screw)
Louver motor
Ratch
pull
Inlet Grille
The decoration panel has its installation
direction.
Before installing the decoration panel,
always remove the paper template.
CAUTION
Install the decoration panel
otherwise cool air leakage
causes condensation.
 Water drops fall.
Cool air leakage
(no good)
Decoration panel
Air conditioner
unit
Ceiling
board
Fit the insulator (this part) and
be careful for cool air leakage
Decoration panel
Air conditioner
unit
Ceiling
board
Correct method Wrong method
