LG MULTI V ARNU12GTRA4

Indoor unit
10. Installation
Ceiling Cassette 1-Way _ 23
Indoor Units

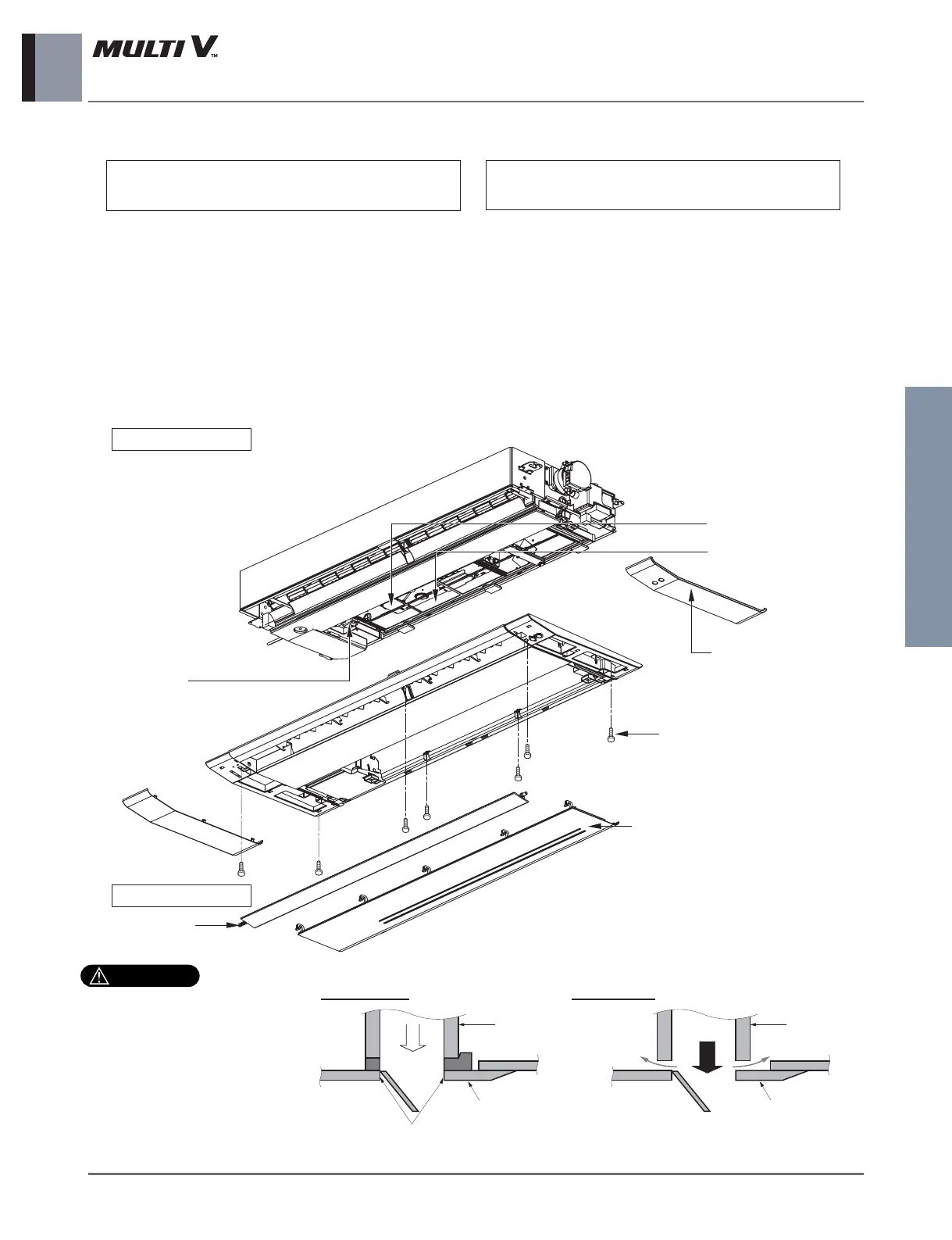

10.4 Installation of Decoration Panel (Panel Type)
1. Open the air outlet vane, and extract side covers.
2. Remove the air inlet panel from the decoration panel.
3. Hook decoration panel to indoor unit, using hooks attached at the backside of both side of decoration
panel.
4. Arrange wires not to get caught between decoration panel and indoor unit.
5. Screw 7 fixing screws. (7,9,12kBtu : 6 screws)
6. Connect the vane motor connector ,display connector and air inlet panel connector.
7. Install the air inlet panel (including the air filter) and side covers.
The decoration panel has its installation
direction.
Before installing the decoration panel,
always remove the paper template.
CAUTION
Install certainly the
decoration panel.
Cool air leakage caus-
es sweating.
 Waterdrops fall.
Air conditioner unit
Decorative panel
Robot kit
Mesh
Control box cover
Side cover
Decorative panel
fixing screws
(hexagon M6 screws)
(tightening about 20mm)
Air inlet panel
Air outlet vane
Cool air leakage
(no good)
Decorative panel
Air conditioner
unit
Ceiling
board
Fit the insulator (this part) and
be careful for cool air leakage
Decorative panel
Air conditioner
unit
Ceiling
board
Good example Bad example
