LG MULTI V ARNU12GTRA4

Indoor unit

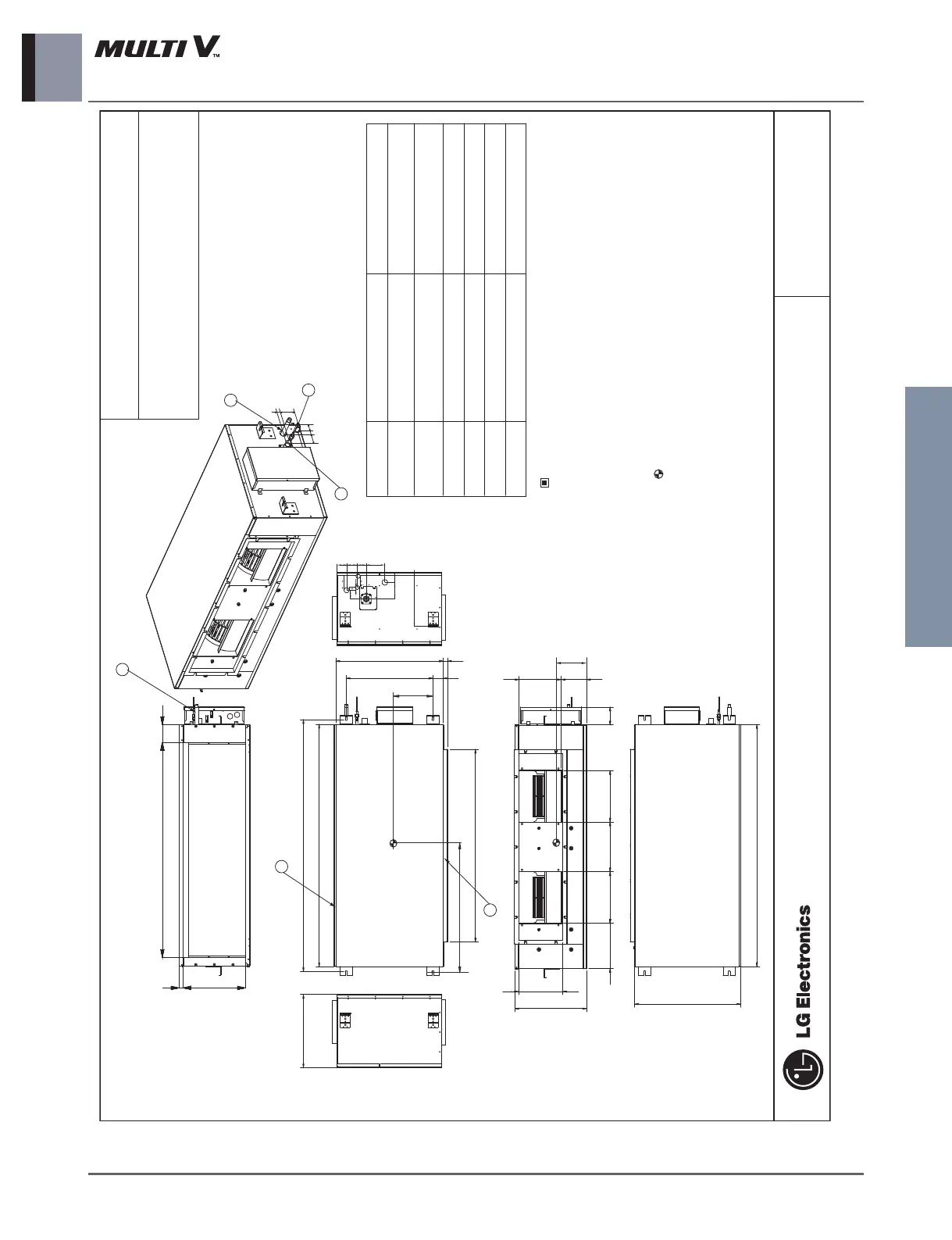

3. Dimensions & Gravity point
Ceiling Concealed Duct(High Static) _ 7
Indoor Units
CHASSIS CODE: B8
Ceiling Concealed Duct (High Static)
ARNU76GB8A4 ARNU96GB8A4
Note
1. Unit should be installed in compliance with the installation manual in the product box. 2. Unit shall be grounded in accordance with the local regulations or applicable national codes.
1,565
1,622460
688
580
64
30
1,122
1,562
329 320 329
118
318
293
460
695
292
161
70
120
99
140
440
20
1,400
115
Name
1
Liquid pipe connection
2
Gas pipe connection
3
Drain pipe connection
4
Power supply connection
5
Air discharge
6
Air suction
Number Descripition
(unit : mm)
Unit size(76k,96k):ø9.52 Unit size(76k):ø19.05 Unit size(96k):ø22.2
3
2
1
4
5
6
64
70
60122
358
109
68
18
58
Gravity point
397
222
819
