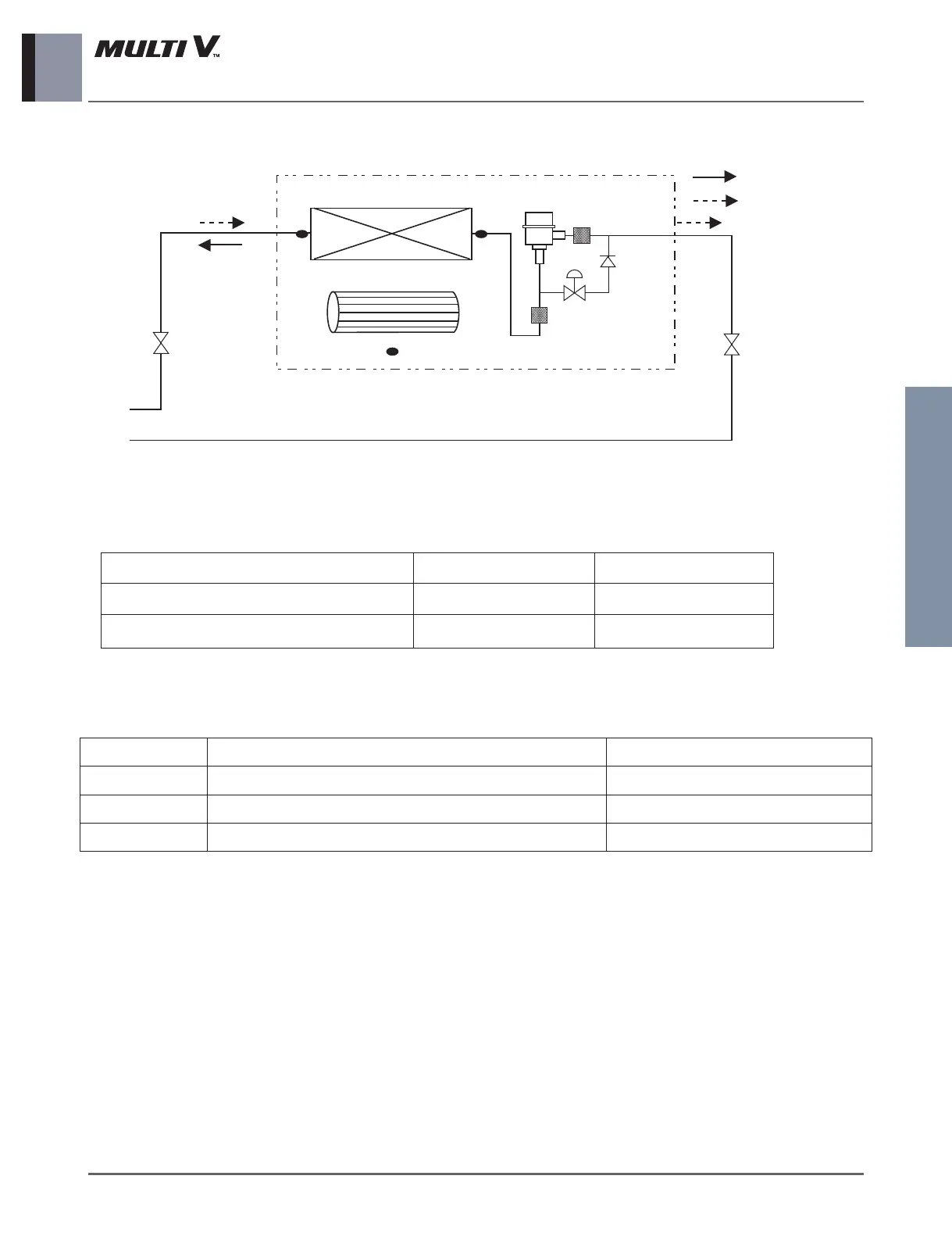

Refrigerant pipe connection port diameter
[Unit: mm(inch)]
MODEL GAS LIQUID
ARNU76GB8A4 Ø19.05(3/4) Ø9.52(3/8)
ARNU96GB8A4 Ø22.2(7/8) Ø9.52(3/8)
LOC. Description PCB Connector (Color)
Th1 Thermistor for room air temperature CN-ROOM (Yellow)
Th2 Thermistor for pipe in temperature CN-PIPE_IN (White)
Th3 Thermistor for pipe out temperature CN-PIPE_OUT (Red)
To Next Page
