Ceiling Concealed Duct (High Sensible)
Indoor Units
10. Installation

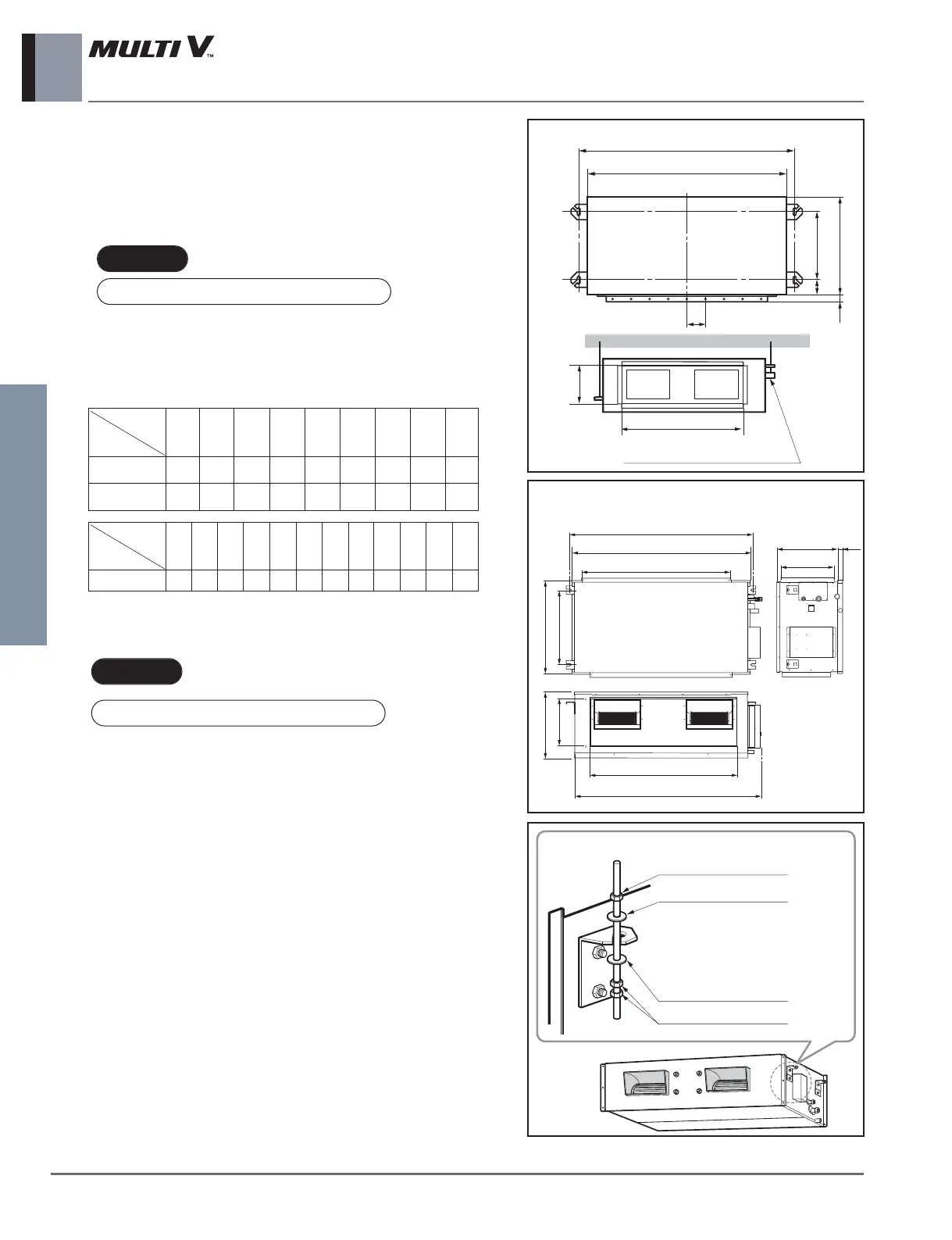

10.2 Ceiling dimension and hanging
bolt location
n Installation of Unit
Install the unit above the ceiling correctly.
• Apply a joint-canvas between the unit and duct to absorb
unnecessary vibration.
• Apply a filter Accessory at air return hole.
• Refer to the Dimensions.
• A place where the unit will be leveled and that can sup-
port the weight of the unit.
• A place where the unit can withstand its vibration.
• A place where service can be easily performed.
• Install the unit leaning to a drainage hole side as a figure
for easy water drainage.
CASE 1
POSITION OF SUSPENSION BOLT
CASE 2
POSITION OF CONSOLE BOLT
NOTE:
• Throughly study the following installation locations:
1. In such places as restaurants and kitchens, considerable amount
of oil steam and flour adhere to the fan, the fin of the heat
exchanger, resulting in heat exchange reduction, spraying, dis-
persing of water drops, etc.
In these cases, take the following actions:
• Make sure that the ventilation fan for smoke-collecting hood on a
cooking table has sufficient capacity so that it draws oily steam
which should not flow into the suction of the air conditioner.
• Make enough distance from a cooking room to install the air
conditioner in such a place where it may not suck in oil steam.
2. Avoid installing air conditioner in such circumstances where cut-
ting oil mist or iron powder is in suspension in factories, etc.
3. Avoid places where inflammable gas is generated, flows in, is
stored or vented.
4. Avoid places where sulfurous acid gas or corrosive gas is generat-
ed.
5. Avoid places near high frequency generators.
(Unit:mm)
A B C D E F (G) H I
BG
1232 1182 355 47 450 30 87 830 186
BR
1282 1230 477 56 590 30 120 1006 294
Dimension
Chassis
A B C D E F G H I J K L
B8
1622 1565 580 292 695 1400 460 1122 1680 390 445 15
Dimension
Chassis
