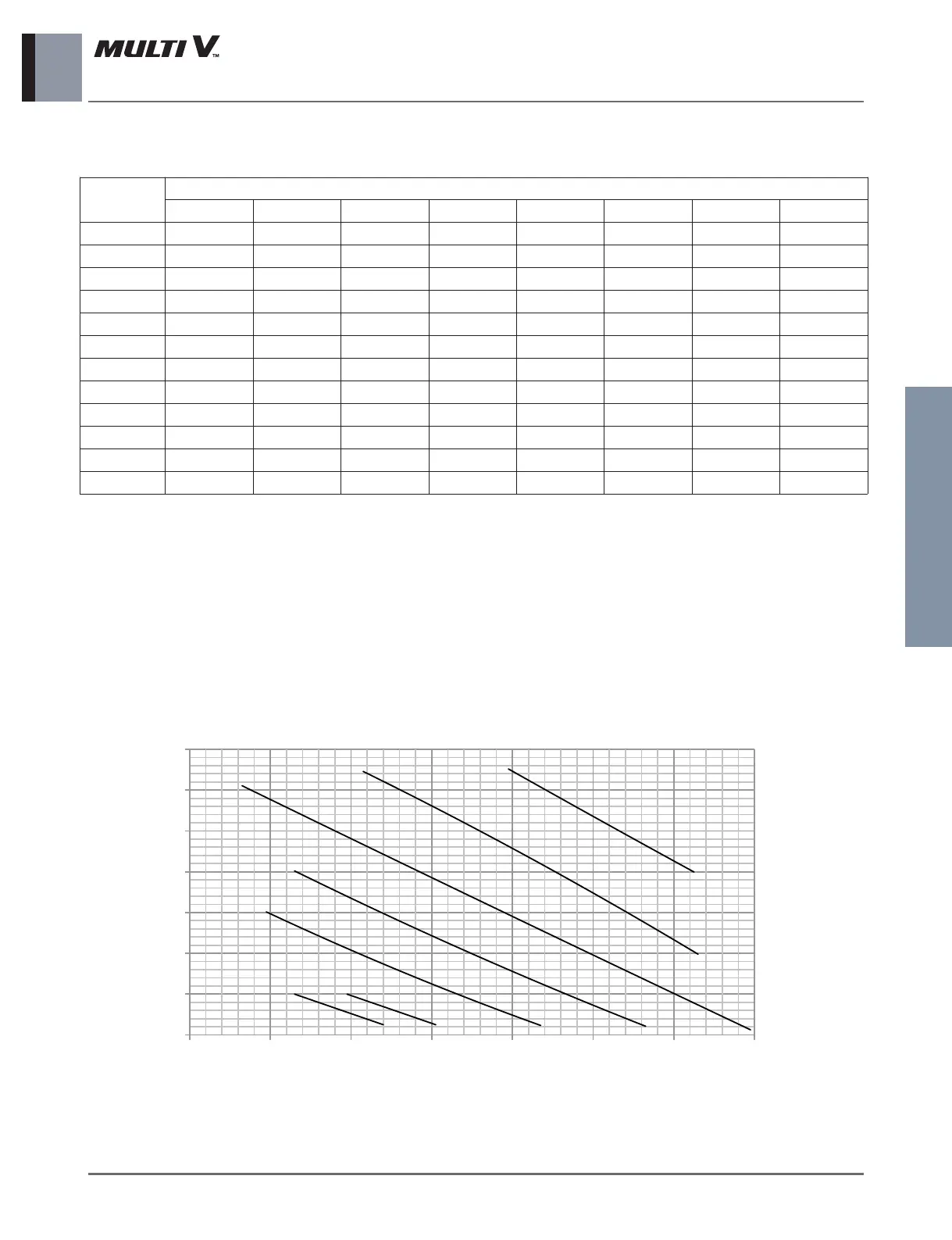

7. External Static Pressure (E.S.P) & Air Flow
Ceiling Concealed Duct(Middle Static) _ 21
Indoor Units
Note:1. The above table shows the correlation between the air rates and E.S.P.
2. The above table shows the available E.S.P. range.
3.
If the E.S.P. of the installed indoor is less than the lowest value(as mention in the table), indoor components
can be failed.
ARNU24GM1A4
(Unit: CMM)
Setting
value
Static Pressure (mmAq(Pa))
2.5(25) 4(39) 6(59) 8(78) 10(98) 12(118) 14(137) 15(147)
85 16.8 14.6 - - ----
90 18.1 15.9 - - ----
95 19.4 17.2 15.0 - ----
100 20.7 18.5 16.3 13.9 ----
105 22.0 19.8 17.7 15.3 13.0 - - -
110 23.3 21.1 19.1 16.8 14.6 - - -
115 24.6 22.4 20.5 18.3 16.3 14.2 - -
120 25.9 23.7 21.8 19.7 17.9 15.9 13.3 -
125 - 25.1 23.2 21.2 19.6 17.5 15.2 14.6
130 - - 24.6 22.7 21.2 19.2 17.1 16.3
135 - - - 24.2 22.9 20.9 19.0 18.1
140----24.5 22.6 20.9 19.9
ARNU24GM1A4
Fan Performance
85 SV 90 SV 100 SV 110 SV
120 SV
130 SV
140 SV
16
14
12
10
8
6
4
2
External Static Pressure(mm.Aq)
12.0 14.0 16.0 18.0 20.0 22.0 24.0 26.0
Air Flow (CMM)
