Fresh Air Intake Unit _ 17
Indoor Units
11. Installation
Read completely, then follow step by step.

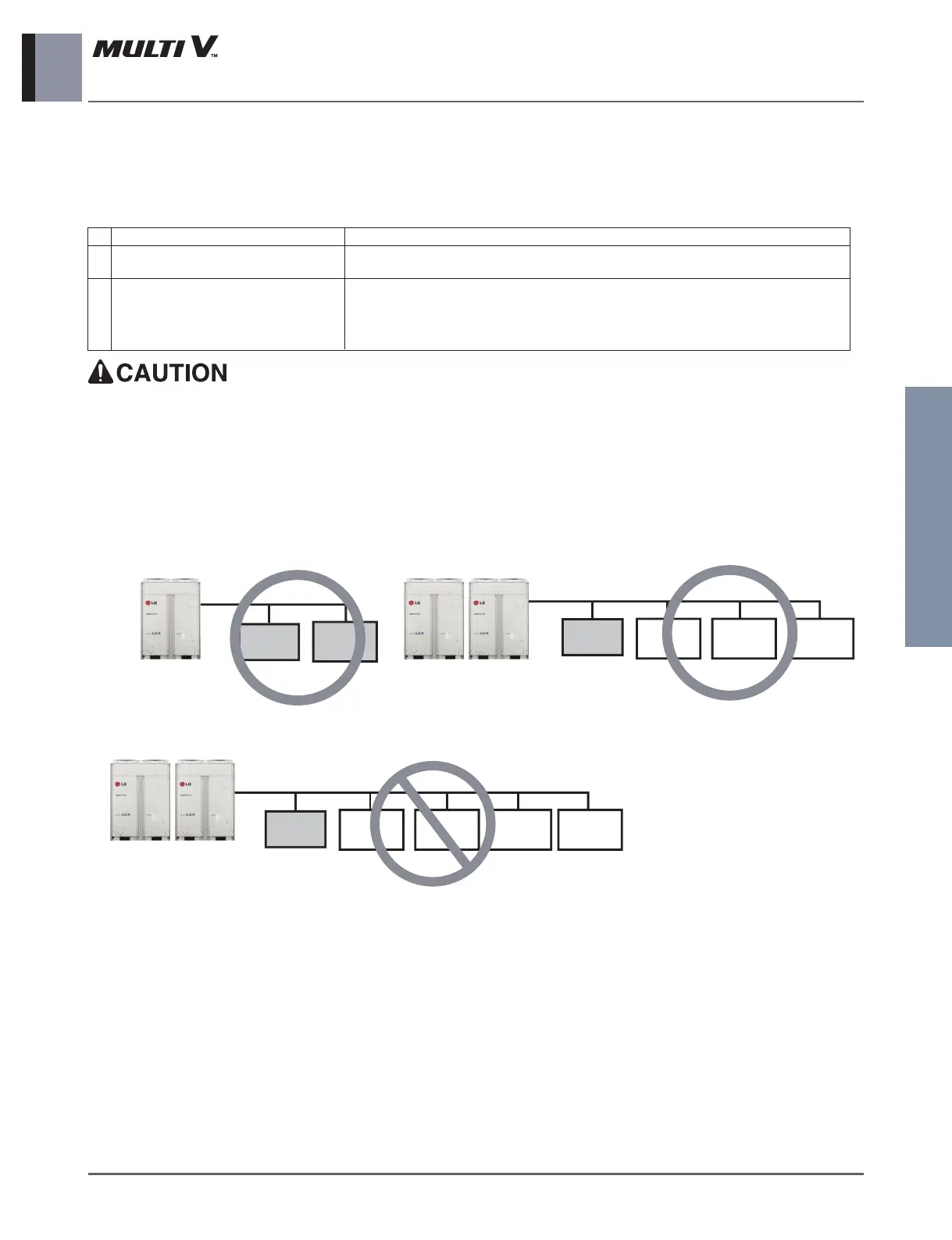

ᶀ The total capacity of indoor units exceed 100% of outdoor unit
FAU
Outdoor : 20HP
5HP
5HP 5HP 5HP
5HP 5HP 5HP 5HP 5HP
Standard Standard Standard
Outdoor : 20HP
FAU
Outdoor : 10HP
5HP 5HP
FAU
<Only Fresh Air Intake Unit install>
<Mixture Install>
<Wrong Install>
FAU
1. Fresh Air Intake Unit Combination
2. Connection of the Outdoor Unit
It is possible to connect Heat Pump Models.
It is not possible to connect Heat Recovery Models.
noitanibmoCnoitidnoC noitcennoCoN
Only Fresh Air Intake Unit installation
Mixture Installation with standard
indoor units and Fresh Intake Units
1
1) The total capacity of Fresh Air Intake Unit should be 50~100% of outdoor unit.
2) The max quantity of Fresh Air Intake unit is 4 Units.
2
1) The total capacity of indoor units (standard Indoor Unit + Fresh Air Intake Unit)
should be 50~100% of outdoor unit.
2) The total capacity of Fresh Air Intake Units should be less than 30% the total
capacity of indoor units.
Standard Standard Standard Standard
Failure to comply with the above connection conditions for installation, it can cause cooling &
heating capacity down.
* FAU : Fresh Air Intake Unit
Standard: Standard Indoor Unit
