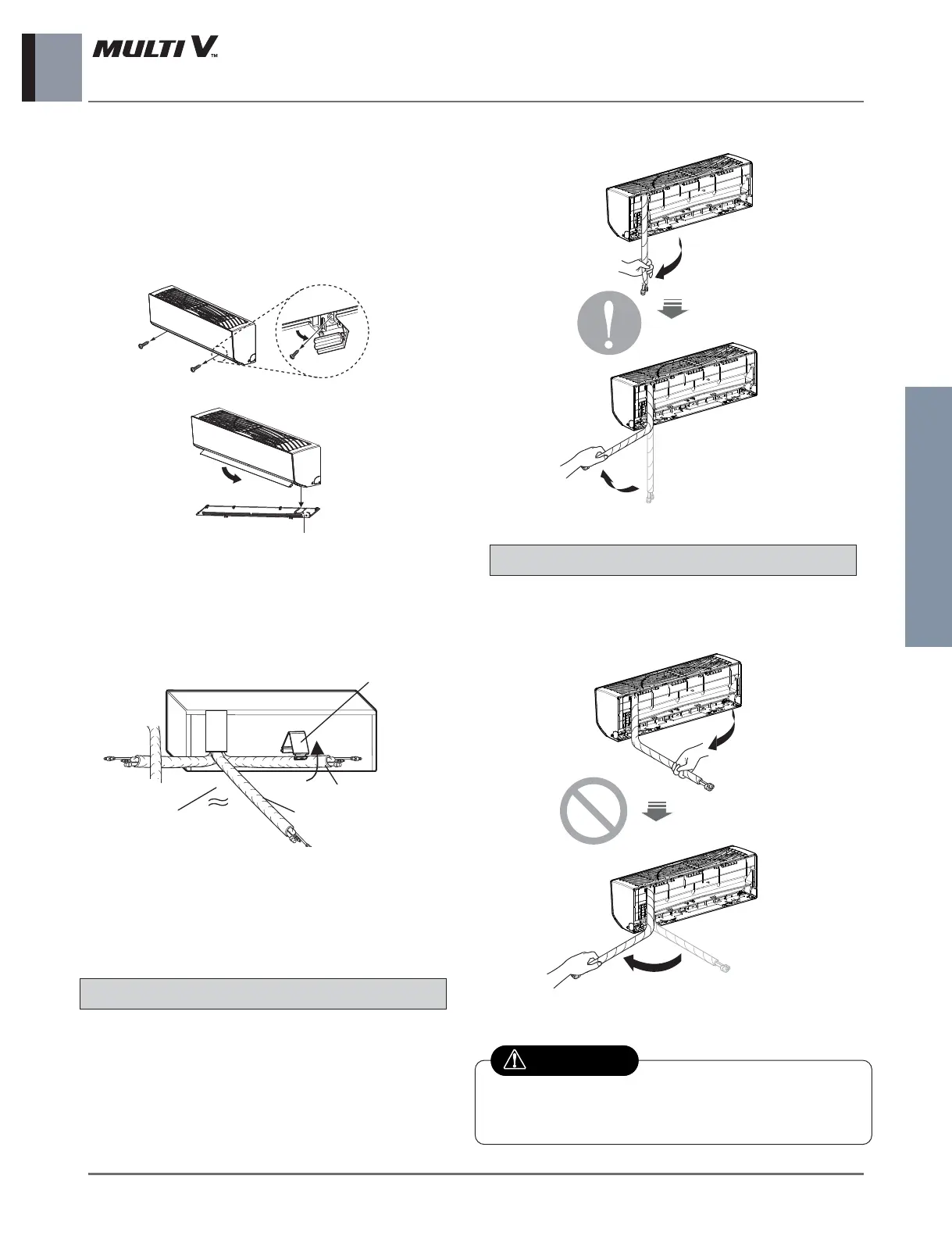

10.2 Connection of pipes and cables
Good case
Installation Information. For right piping. Follow the
instruction above.
CAUTION
h The feature can be changed according to type of model.
1. Following bending case from right to left direct-
ly may cause damage to the tubing.
h The feature can be changed according to type of
model.
1. Press on the tubing cover and unfold the tub-
ing to downward slowly. And then bend to
the left side slowly.
n Pull back the tubing holder.
n Remove pipe port cover and positioning the tubing
n Pull the screw cap at the bottom of the indoor unit
n Remove the chassis cover from the unit by loosing 2
screws
To Next Page
