Console _ 17
Indoor Units
10. Installation

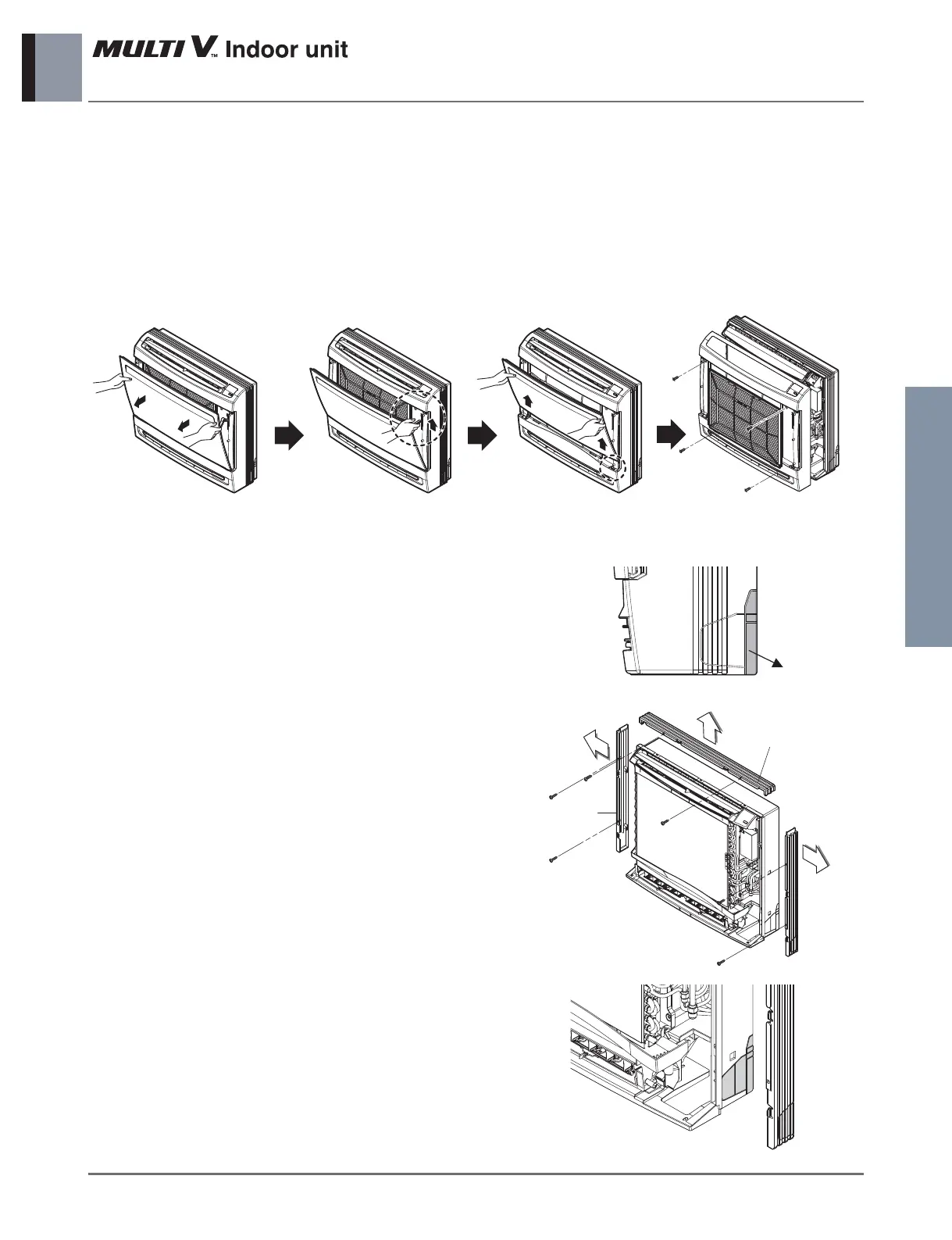

1. Preparation / Removing front panel
1. Open the front grille by pulling forward
2. Then pull out the link of grille from groove in front panel.
3. Then pull out 2 hinges of grille from grooves in front panel.
4. Then remove 4 screws, dismount the front panel while pulling it forward.
2. Preparation / For Moldings , Side Piping, and Concealed Installation
2-1 For Moldings
1. Remove the slit portions on the Rear Panel.
2-2 For Concealed Installation
1. Remove the 6 screws.
2. Remove the Upper Deco cover.
3. Remove the Side Deco covers.
2-3 For Side Piping (Reference 2-2.)
1. Remove the Deco Covers.
2. Remove the slit portions
3. Assemble the Deco Covers.
