LG MULTI V ARNU12GTRA4 - Page 484

Console _ 19
Indoor Units
10. Installation

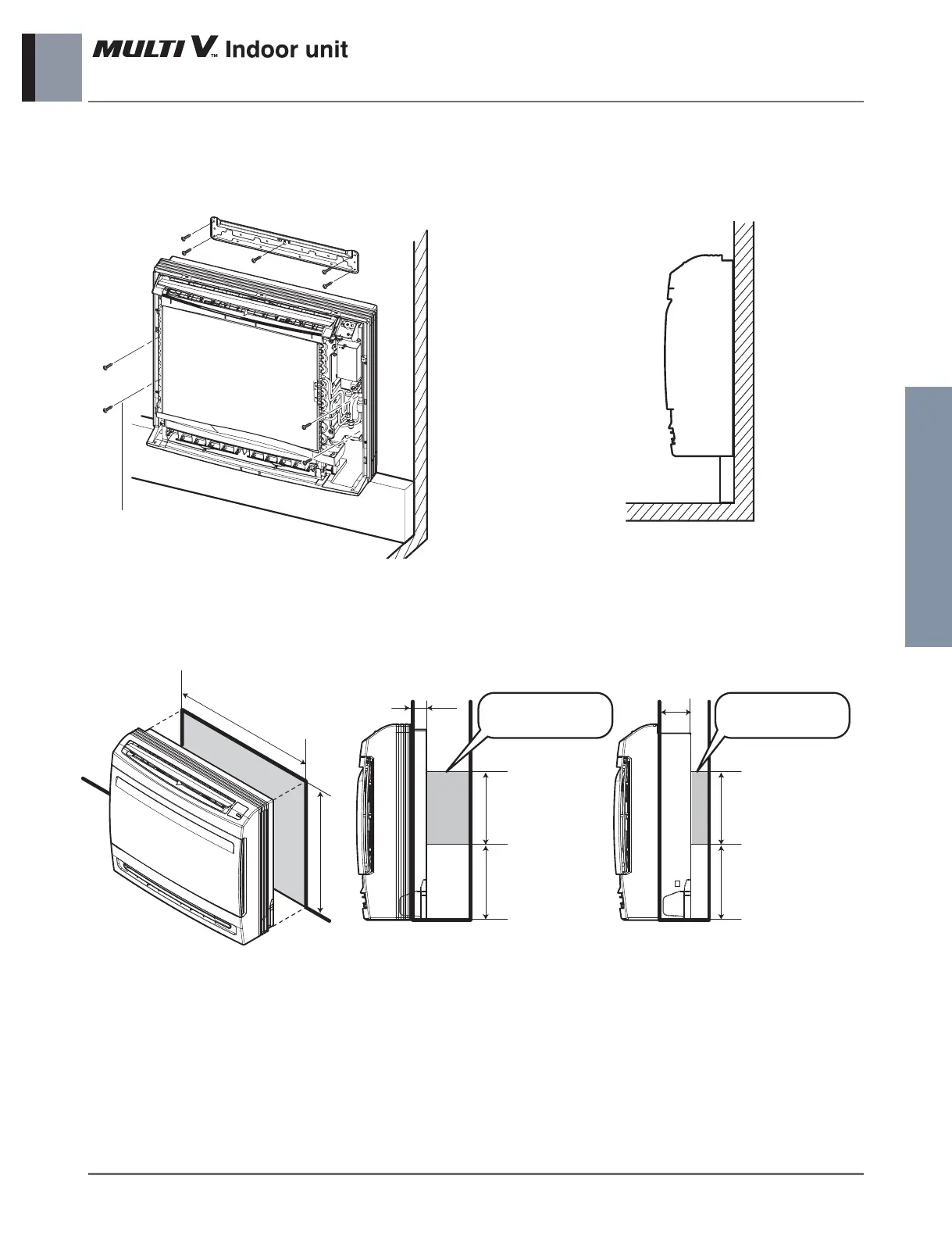

4-2 Installation on the Wall
1. Fix up the installation plate using 5 screws and the indoor unit using 4 screws.
2. The installation plate should be fixed on a wall which can support the weight of the indoor unit.
Installation Plate
Molding
4 screw (M4*25L)
4-3 Half concealed installation.
1. Make a wall hole of the size shown Fig-1.
670
45
585
200
150
Wall
Hole
Supplemental plate
(Field supply)
200
150
95
Supplemental plate
(Field supply)
1) Normal concealed 2) Deep concealed
(Unit : mm)
<Fig - 1>
