LG MULTI V ARNU12GTRA4

Indoor unit
Compact Model _ 5
Indoor Units
Heat Exchanger
Turbo Fan
Th3
Th1
Th2
lndoor unit
EEV
:Heating
:Cooling
Filter
Filter
Refrigerant pipe connection port diameter
[Unit: mm(inch)]
LOC. Description
Th1 Room thermistor
Th2 Pipe in thermistor
Th3 Pipe out thermistor
TR Chassis
Model Gas Liquid
ARNU09GTR*4 Ø12.7(1/2) Ø6.35(1/4)
ARNU15GTR*4 Ø12.7(1/2) Ø6.35(1/4)

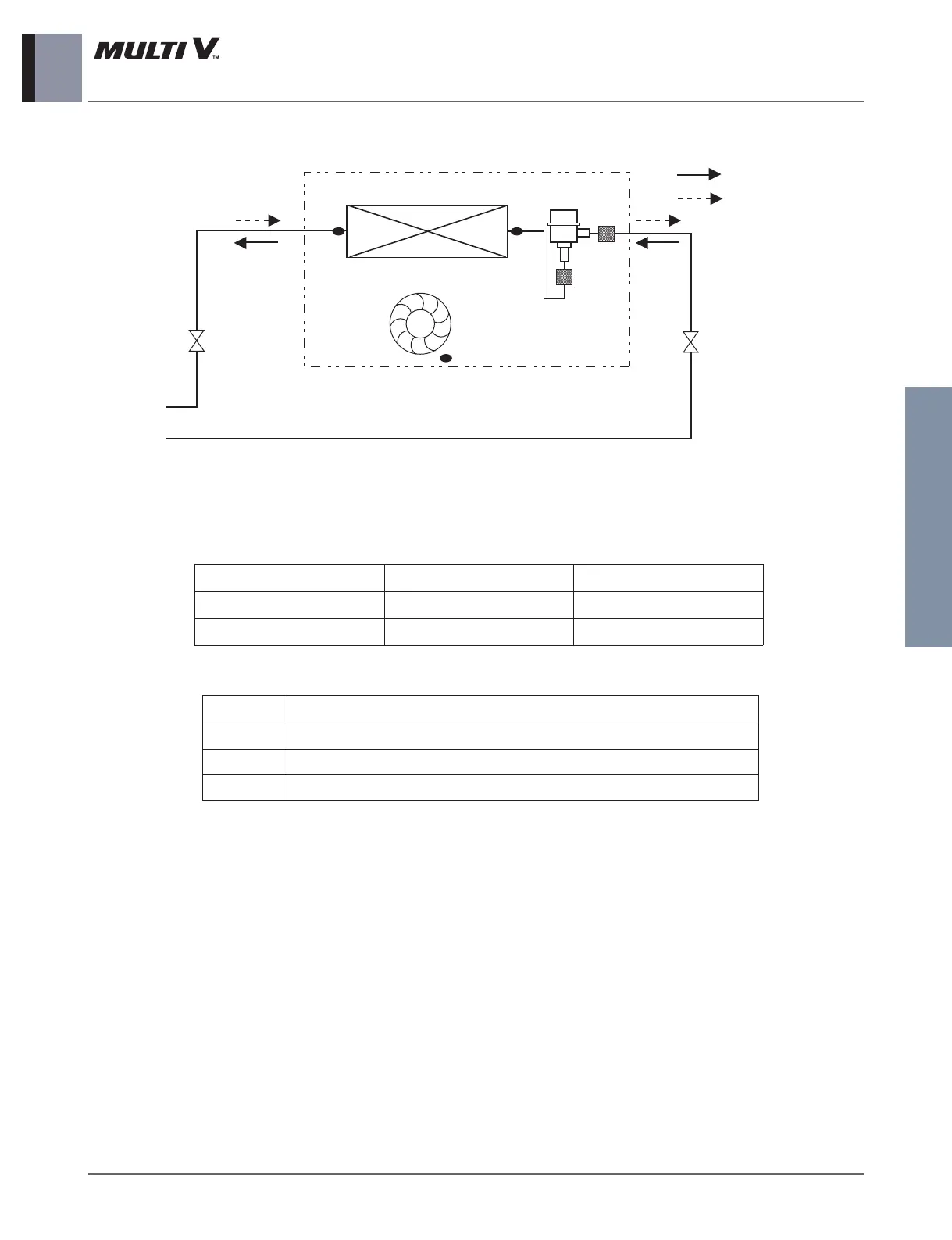

4. Piping Diagrams
