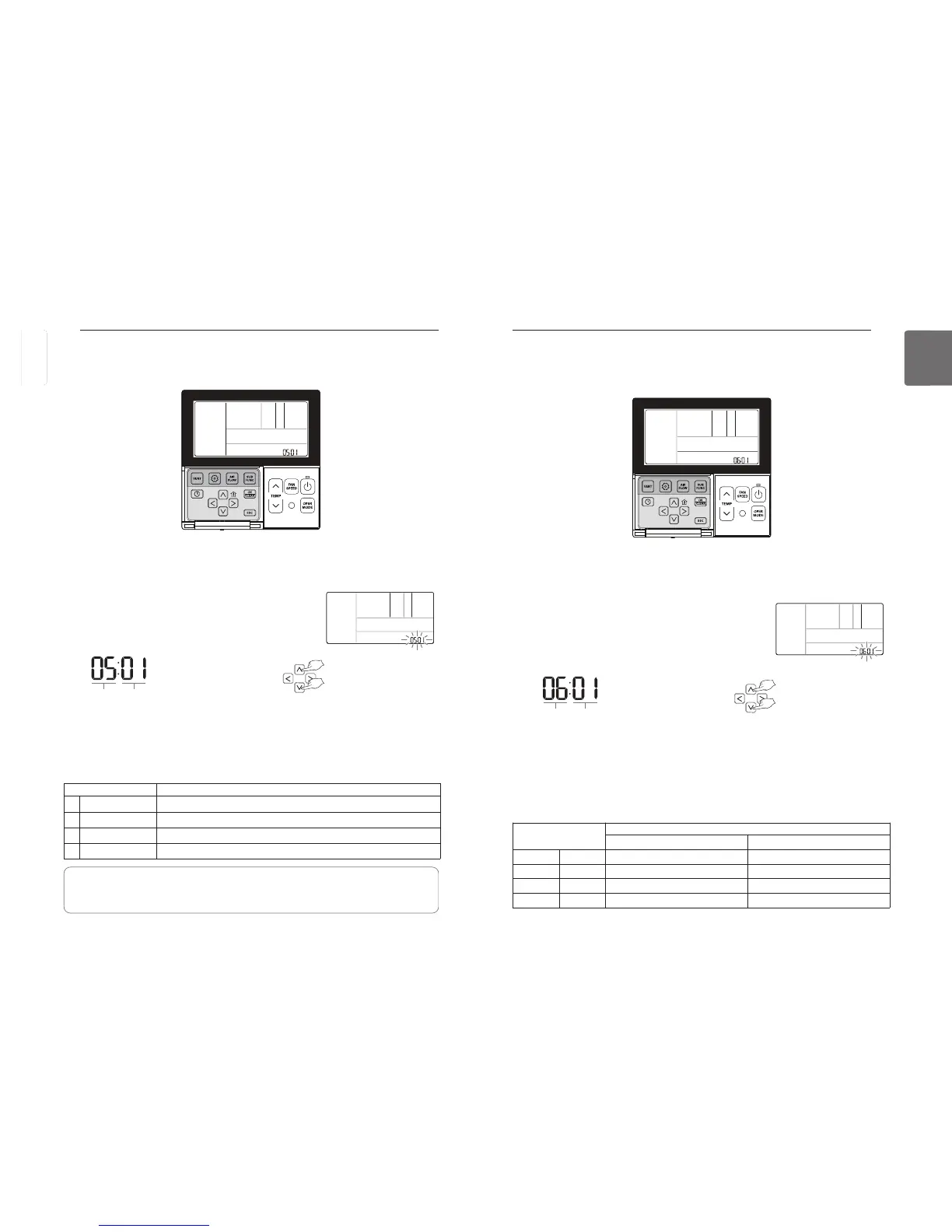

Installer Setting – Static Pressure Setting
Selecting the static pressure is only available for duct products.
For other products, the static pressure selection cannot be set.
Press and hold
B
button for more than 3 seconds to enter the installer settings mode.
- If pressing only once briefly, it will enter the user settings mode.
Make sure to press and hold for more than 3 seconds.
Press
B
button repeatedly to move to the static pressure selec-
tion in the menu as below.
Select the level of static pressure using
FG
button.
Press
K
button to save the setting.
Press
L
button to exit.
 If no button is selected for about 25 seconds after setup, it exits the setup mode automatically.
 If Set button is not selected before you exit, the changes will not apply.
Code value for
static pressure
Set value
❈ Set value for static pressure
01 : V-H
02 : F-H
03 : V-L
04 : F-L
Pressure selection
Function
Zone state ESP standard value
01 V - H Variable High
02 F - H Fixed High
03 V - L Variable Low
04 F - L Fixed Low
<Static Pressure Setting Table>
Installer Setting – Ceiling Height Selection
This function is to adjust the level of fan speed according to the height of ceiling for ceiling type
product.
Press and hold
B
button for more than 3 seconds to enter the installer settings mode.
- If pressing only once briefly, it will enter the user settings mode.
Make sure to press and hold for more than 3 seconds.
Move to Ceiling Height Selection in the menu using
B
and then,
it displays as below.
Select the height of ceiling using
FG
button.
Press
K
button to save the setting.
Press
L
button to exit.
 If no button is selected for about 25 seconds after setup, it exits the setup mode automatically.
 If Set button is not selected before you exit, the changes will not apply.
Code value for
Ceiling height
Set value
❈ Set value for ceiling height
01 : Low
02 : Medium
03 : High
04 : Very high
Ceiling Height Level Function
01 Low Operate the indoor fan speed at one level below the average fan speed.
02 Medium Operate the indoor fan speed at the average fan speed.
03 High Operate the indoor fan speed at one level above the average fan speed.
04 Very high Operate the indoor fan speed at two levels above the average fan speed.
• The ceiling height selection settings are limited to some product.
• The very high ceiling height function may not be available for some Indoor Unit.
• See the product manual for more details.
