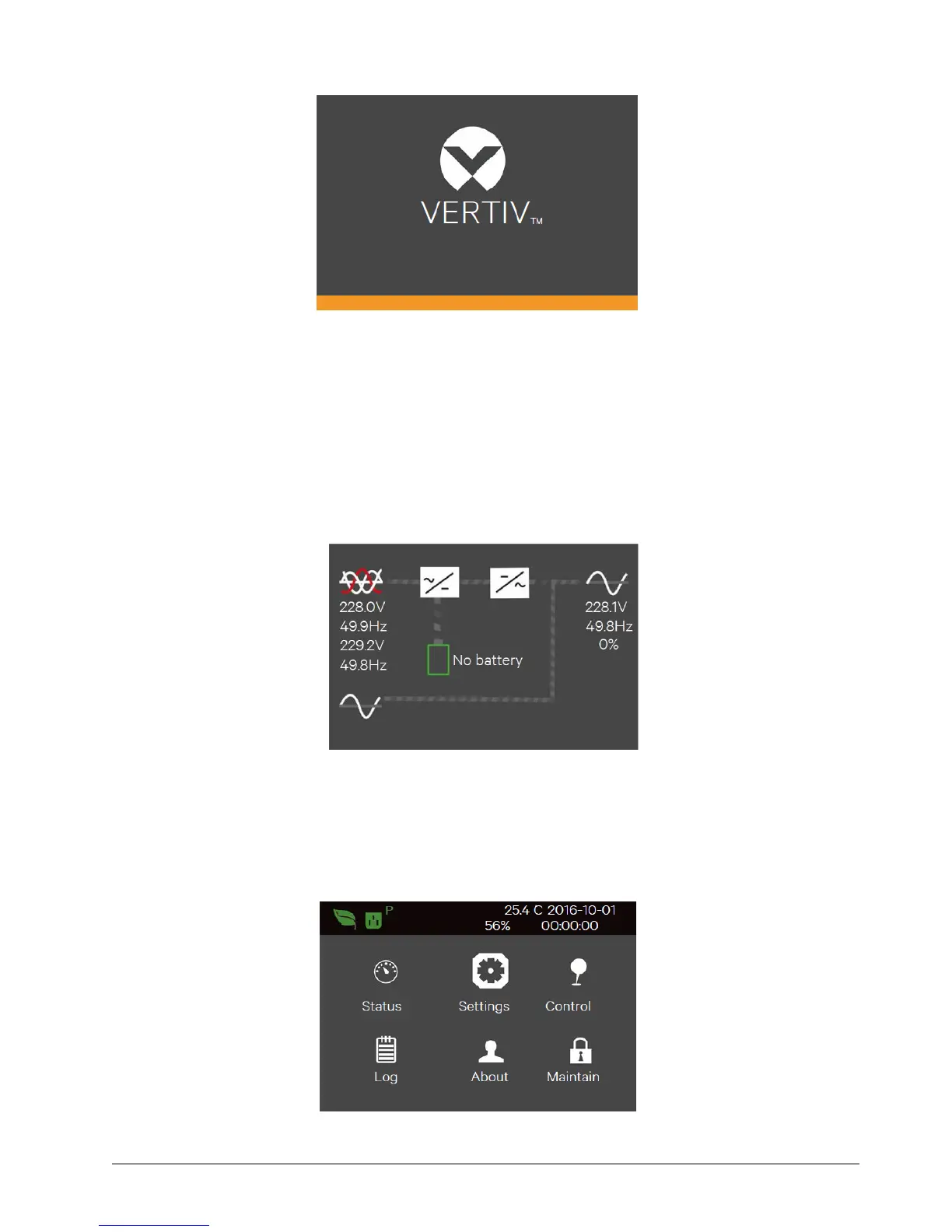

Figure 4-12 Start Screen
4.4.2 Flow Screen
After the self-test of the UPS, the flow screen shown in Figure 4-13 will appear.
The flow screen is the total status view of the UPS, includes input, bypass, rectifier, battery, inverter and output, etc.
The working modes with color display while the invalid modes with gray display.
Figure 4-13 Flow Screen
4.4.3 Main Menu Screen
The main menu screen is composed of six icons: Status, Settings, Control, Log, About, Maintain. As shown in Figure
4-14.
Figure 4-14 Main Menu Screen
