Liebert S600 - LCD Menu Structure; LCD Screen Types

Vertiv|Liebert® S600 10kVA ~ 20kVA UPS | User Manual 43

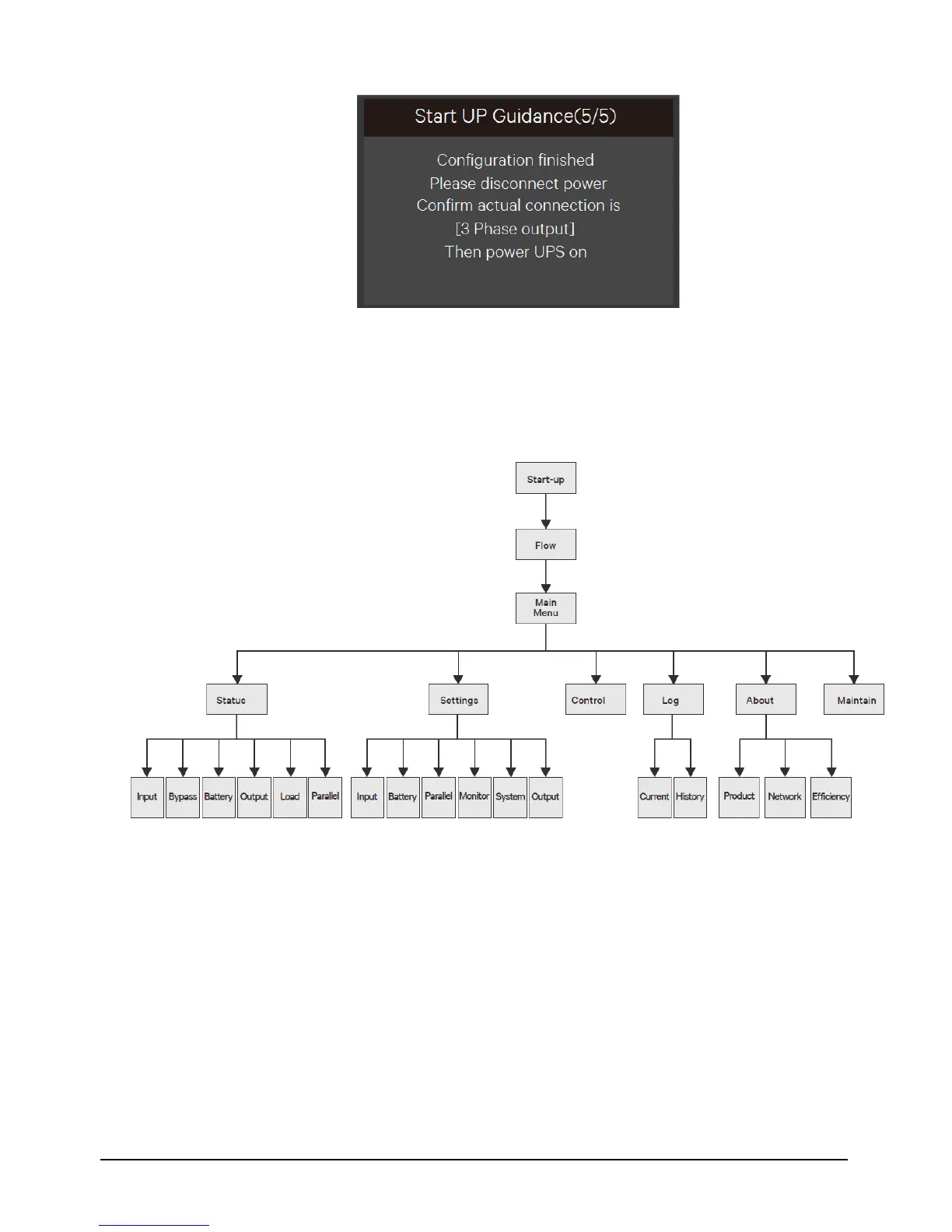

Figure 4-10 Initial start-up guidance (5)
4.3 LCD Menu Structure
Figure 4-11 LCD Menu Structure
4.4 LCD Screen Types
4.4.1 Start Screen
Upon UPS start-up, the UPS executes the system self-test, and the start screen will appear and remain for about 10
seconds, as shown in Figure 4-12.
