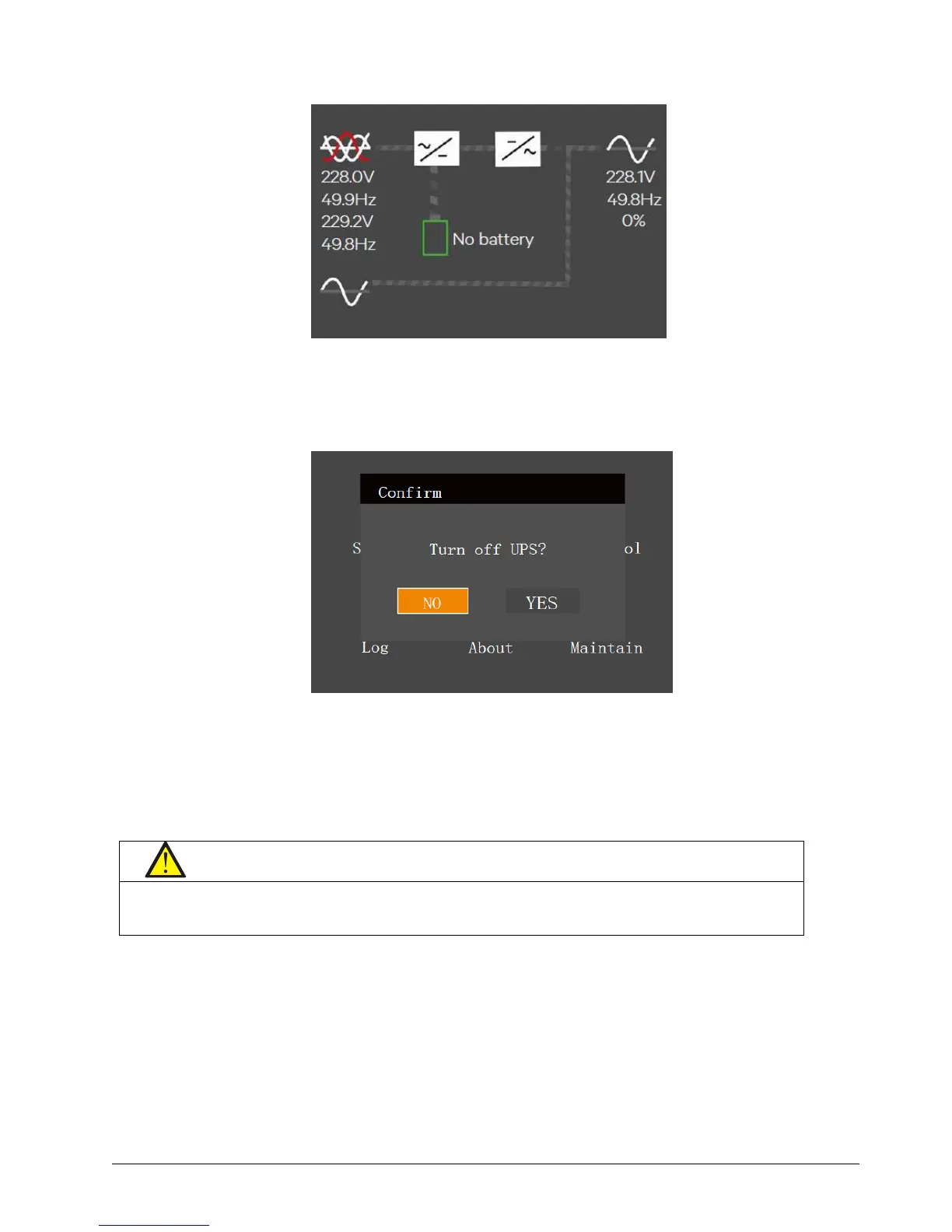

Figure 5-2 Bypass to inverter Mode
If the ECO turned on, the interface shown in Figure 5-6 will appear. Select 'YES' to shut down the UPS output.
Figure 5-3 ECO turned on interface Mode
5.4.2 Transfer from Inverter Mode to Maintenance Bypass
When the UPS is running in Normal mode, you can use this procedure to make the load transfer from inverter
output to maintenance bypass.
1. Through the LCD settings page, change the Dry connect 3 to 'Maintain mode'. See Figure 5-7.
1. Before performing this procedure, you should check the LCD information first, and make sure, the bypass
is normal and synchronizes with the inverter. Otherwise, it may result in the load power interruption for a
while.
