4.2 LightLas 532 Laser Controls and LCD Displays
4.2.1 Laser Console
All the LightLas 532 Photocoagulator’s controls and displays are located either on the
console front panel or the rear panel (refer to fig. 4.1.and 4.2). A detailed description
of each control and display is explained on the next page.
EXPLOSIONSGEFAHR
Dieses Gerat ist nicht fur den Betrieb in
explosiongefahrdeten bereichen bestimmt
exposition dangereuse au rayonnement
Complies to the requirements of
21CFR, Chapter 1, Subchapter J
connect only to with a "Hospital
d'anesthesiques inflammables
Risques d'explosion si utilise en presence
Ne pas ouvrir L'appareil risque de chocs electriques
Laser direct ou diffuse reparations par service
For grounding reliability
Gefahr eines elektrischen Schlages
GEHAUSETEILE NICHT ENTFERNEN
Wartungsarbeiten nur durch qualifizierten
accessible laser radiation. Refer servicing to
Risk of explosion if used in the presence of
Do not remove covers. Shock hazard and
qualified service personnel.
Laserstrahlung zuganglich.
flammable anesthetics.
Kundendienst.
ACHTUNG!
DANGER!
technique qualifie.
Grade receptacle".
DANGER!
FOOTSWITCH
INTERLOCK
DOOR
fuse as marked above
WARNING
Risk of fire
Replace only with
AC MAINS INPUT
50/60Hz, 400VA
100-230V ~ (Fuse:T3.15AH250V)INPUT:
Danger/Caution
DIRECT OR SCATTERED RADIATION
AVOID EYE OR SKIN EXPOSURE TO
Visible and Invisible laser radiation when open
LIO
LIO
LIGHTMED
STOP
Delivery
Key

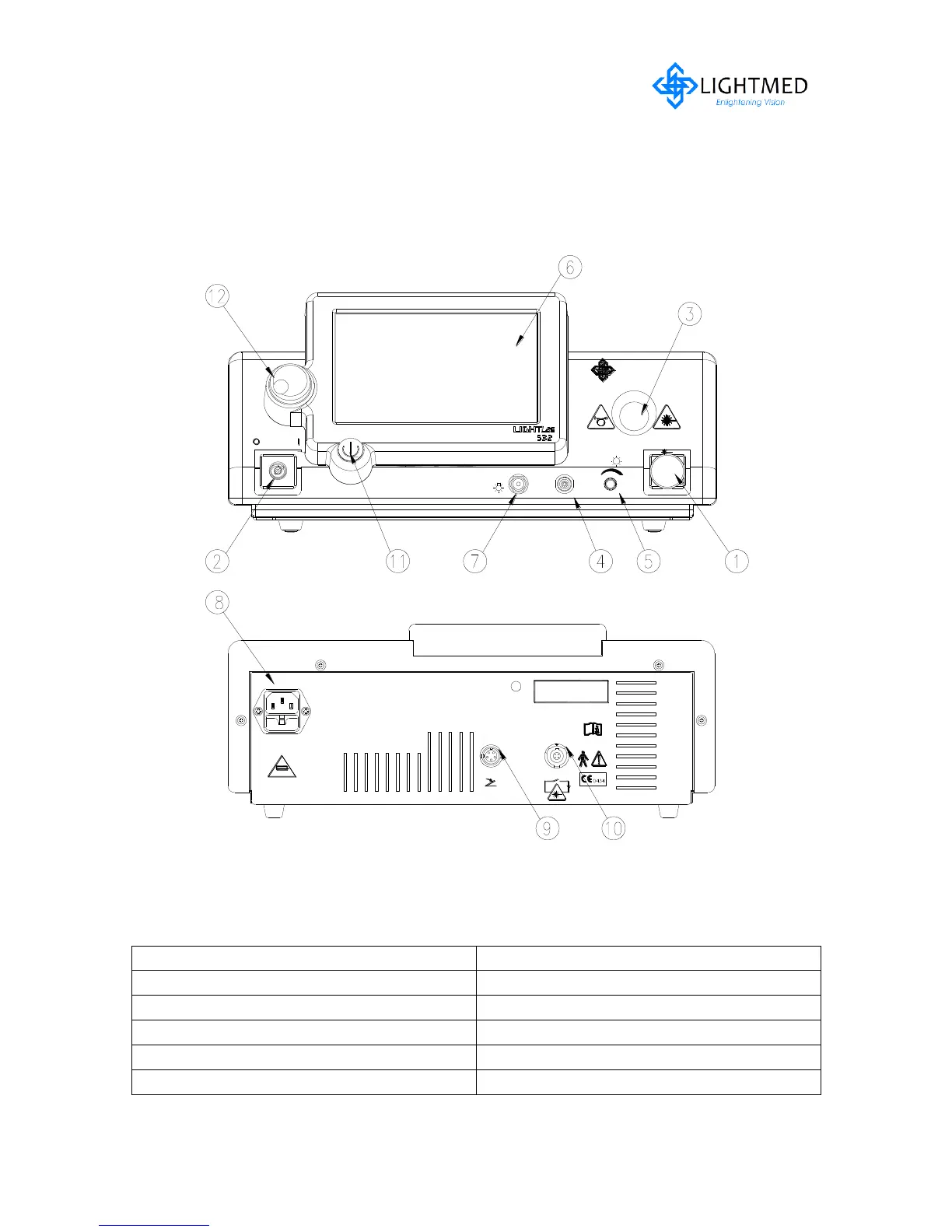

Figure 4.4
Laser Console Controls and LCD Displays
Legend
1. Emergency Stop Switch
2. Key Switch
3. Laser Aperture
4. Delivery Key Connector
5. LIO Illumination Control
6. LCD Control Panel
7. LIO Power
8. Main Power Inlet
9. Footswitch Connector
10. Remote Interlock Connector
11. LCD Control Panel Power Switch
12. Power Control Adjuster or Dial
