Lightmed LightLas 532 - Align the Keyways then Fit the Zoom Unit to the Delivery Housing; Rotate the Zoom Housing to the End Stop

LightLas 532 – Operator's Manual Rev. No 01 Page 63 of 115

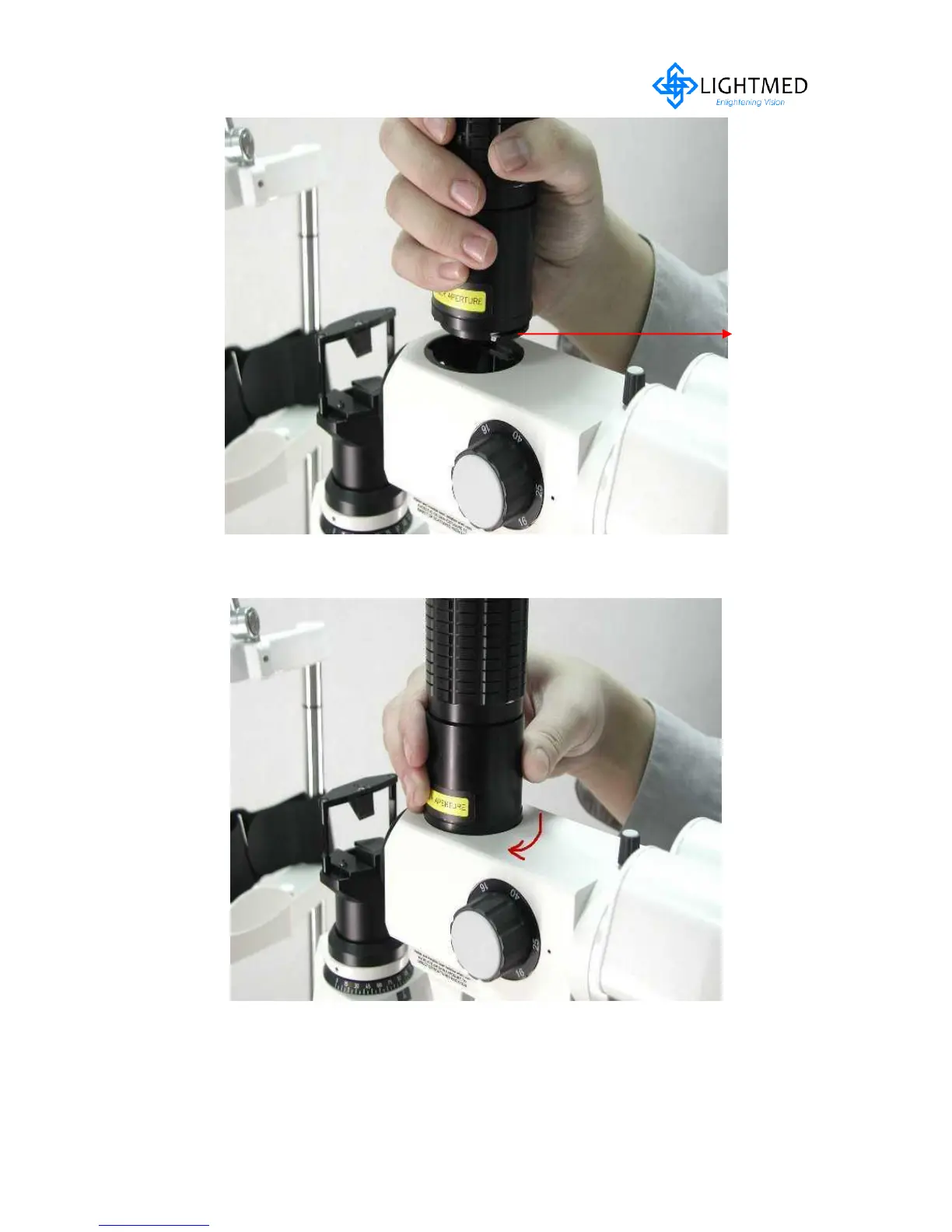

Figure 5.12 Align the keyways then fit the Zoom unit to the Delivery housing
Figure 5.13 Rotate the Zoom housing to the end stop
Large Keyway Slot
