10. Clamp the fiber support arm into its holder

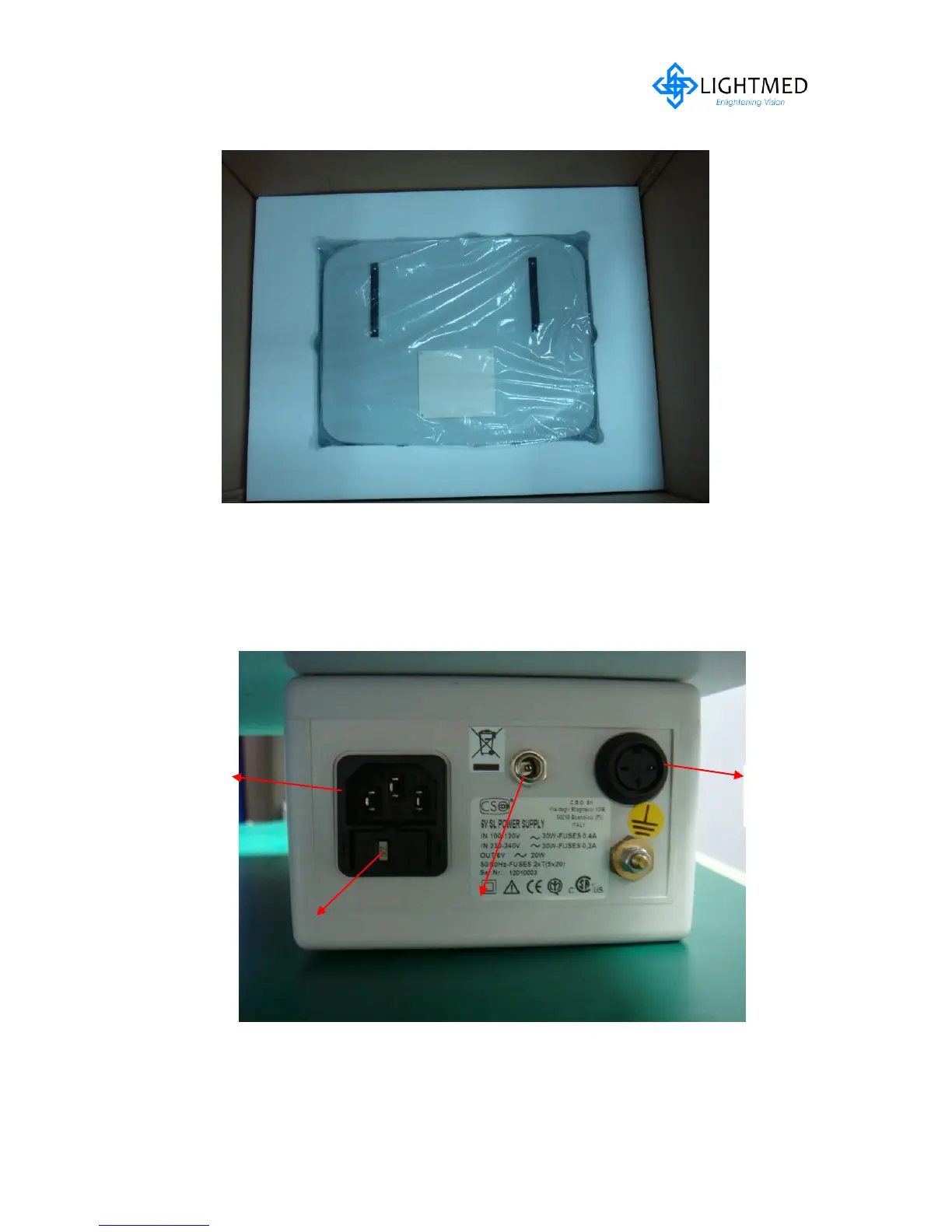

Figure 5.4 Slitlamp table top ass'y
Note: The table top can be accommodated in two types of stand that the Lightmed
manufacturer such as, ‘T’ and ‘C’ types of table stand. All appropriate installation
guides are inserted in the packaging .
Figure 5.5 (a) Rear view box connection
Voltage rate setting
Slitlamp power
source connection
Fixation lamp connection
Power source
connection
