LightLas 532 – Operator's Manual Rev. No 01 Page 65 of 115
3. Attach the micromanipulator joystick to the LDU main body for the old version
type only (refer to fig. 5.16a-c)
4. Proceed to pre-check / final alignment section on page 81-84

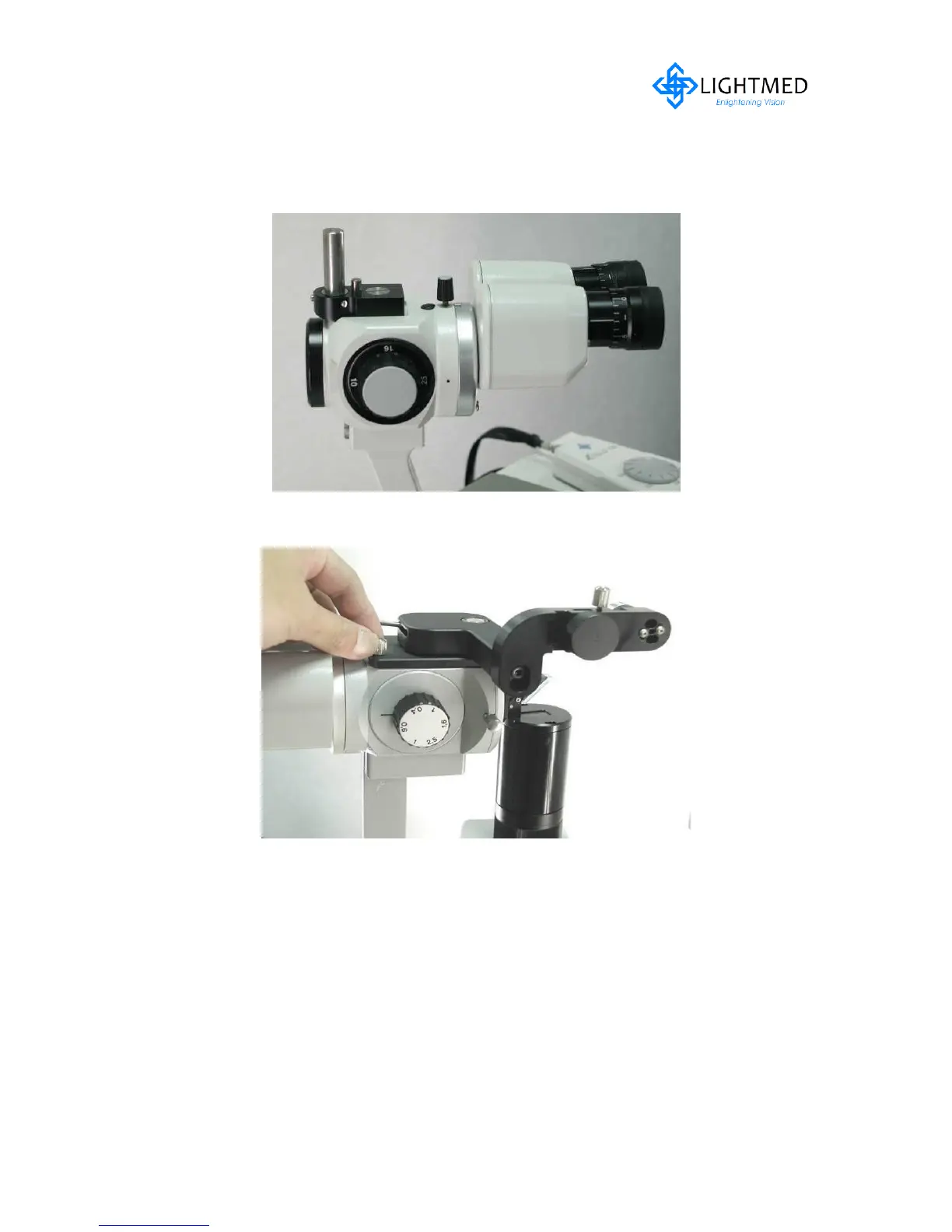

Figure 5.15 (a) Haag Streit
Attaching Tonometer mount ready for Attachment LDU
Figure 5.15 (b) Zeiss 30SL
Attaching the Tonometer mount and Attachment LDU Mounting Arm
