4.2.2 LCD Display Panel

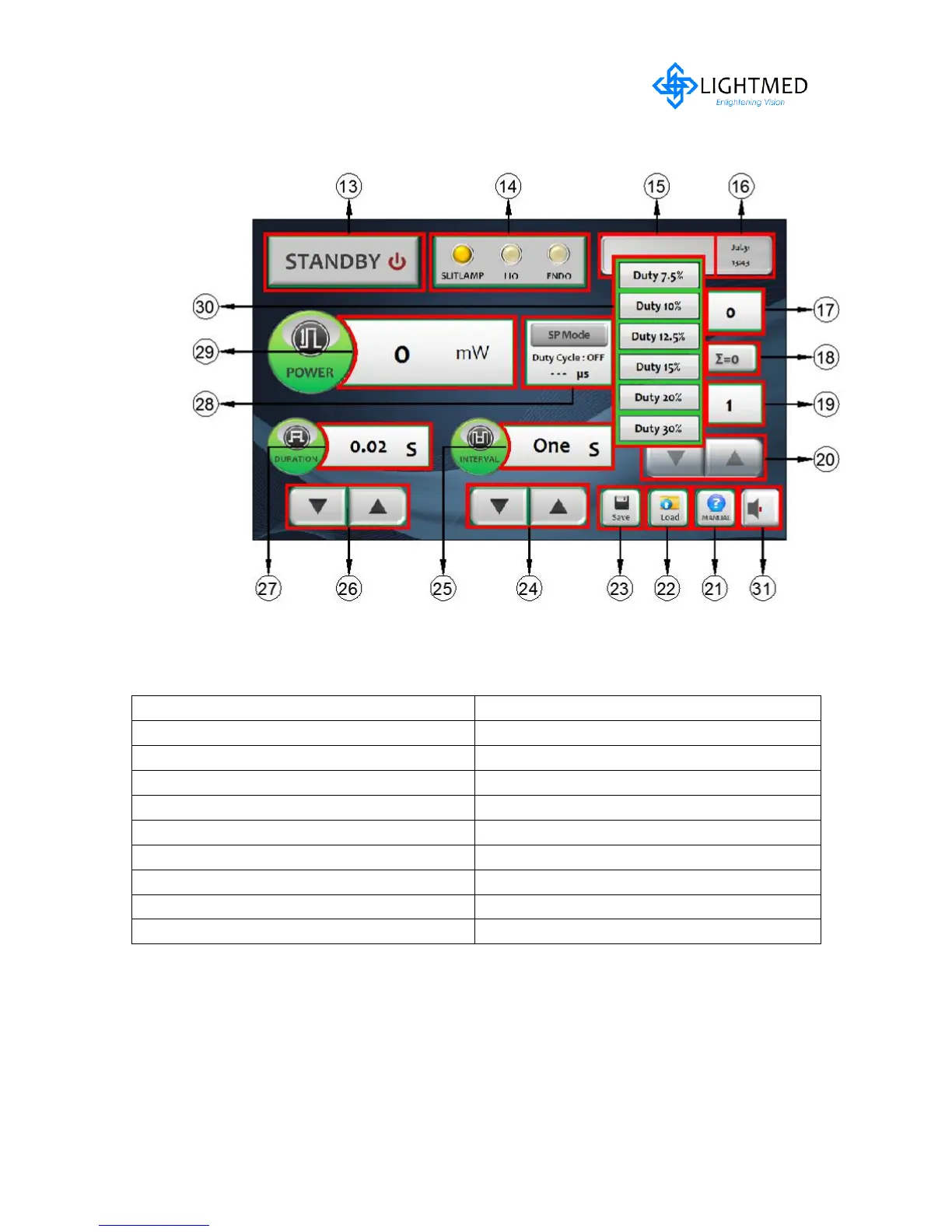

Figure 4.5
LCD Panel Display and Control
Legend
13. Mode Indication (TREAT / STANDBY)
14. Type of Delivering System Indicator
15. User Configuration Indication
16. Date and Time Indicator
17. Total Laser Shot Counter Display
18. Counter Reset Switch
19. Aiming Beam Intensity Indicator Display
20. Aiming Beam Intensity Setting Switches
21. Manual Inquiry
22. Loading Profile Inquiry
23. Saving Inquiry
24. Repeat Interval Setting Switches
25. Repeat Interval Display
26. Exposure Duration Setting Switches
27. Exposure Duration Display
28. SP Mode & Selection Display Icon
29. Preset Power Display
30. SP Mode Selection Icon
31. Buzzer Control Icon
