LightLas 532 – Operator's Manual Rev. No 01 Page 64 of 115
5.4.1B Attachment Slitlamp Delivery Unit
Prior to install the Attachment Slitlamp delivery unit, ensure all the corrected setup
and equipment are in placed to proceed the installation steps.
System Part(s):
Tonometer Mounting block (Haag Streit style / Zeiss 30SL / SYL9000)
Attachment arm (Haag Streit style / Zeiss 30SL / SYL9000)
Mounting screws (Haag Streit style / Zeiss 30SL / SYL9000)
Safety Filters (only for combination system)
Micromanipulator joystick
New Modified Illumination Tower (Zeiss 30 SL type only)
Procedures:
1. Place the appropriate mounting post into the magnifier ass’y and secure with the
correct mounting screw (refer to fig. 5.15a-c)
2. Swing the slitlamp tower aside prior to fit the appropriate whole attachment body
into the mounting block (refer to fig. 5.16a-c)
If this is the Zeiss 30SL attachment LDU type (refer to fig. 5.14a-b), a minor
modification required prior move on to the next step:
2a. Place a target rod
2b. Turn on the slitlamp and set aperture setting to the smallest
2c. Mark on the aperture spot size with pencil
2d. Remove the old illumination tower and replace with newly modified one
2e. Verify the new tower against the mark on target rod aperture spot and align
and lock if it is confirmed
2f. Align the spot position by adjusting the mirror if required

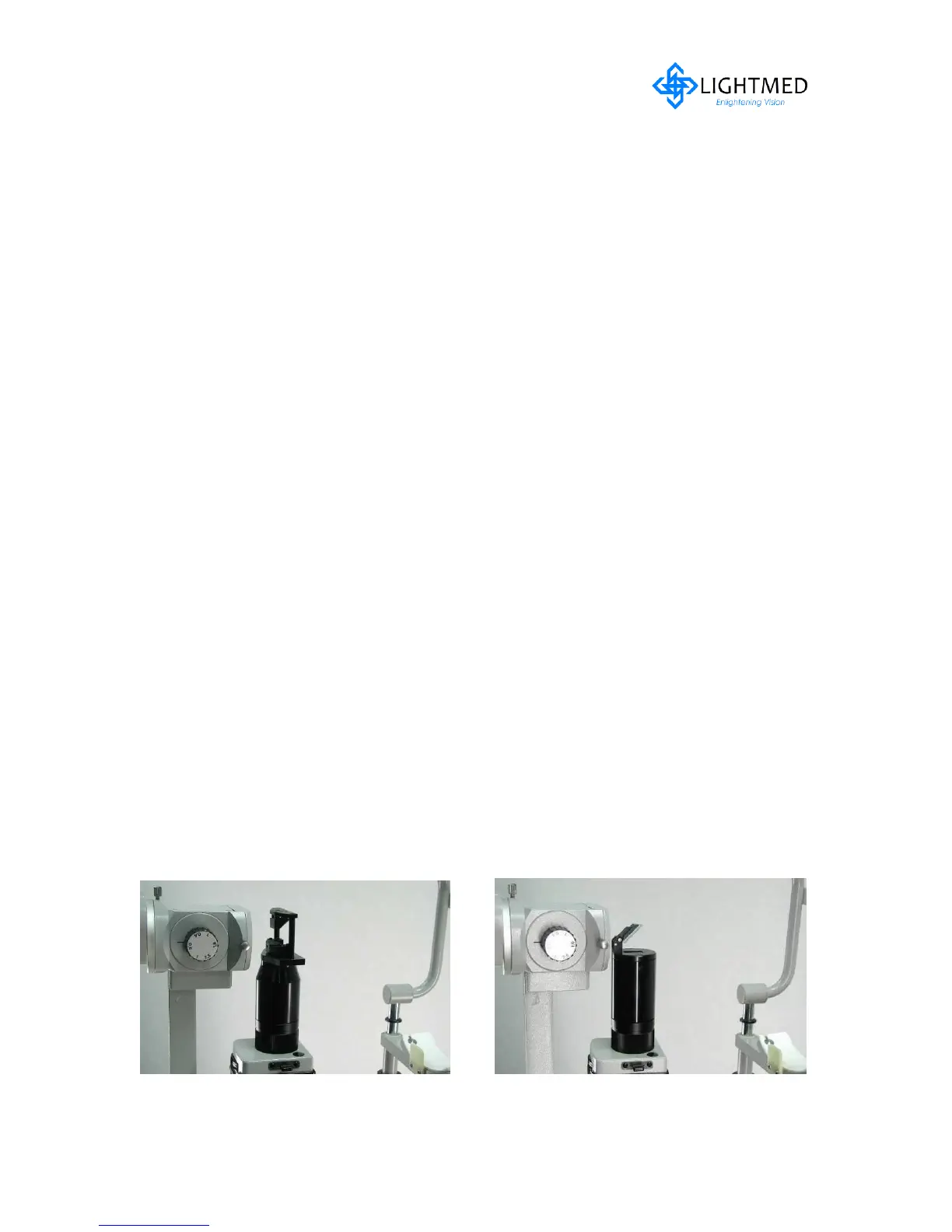

Figure 5.14 (a) Figure 5.14 (b)
Original Illumination Tower New modified Illumination Tower fitted
