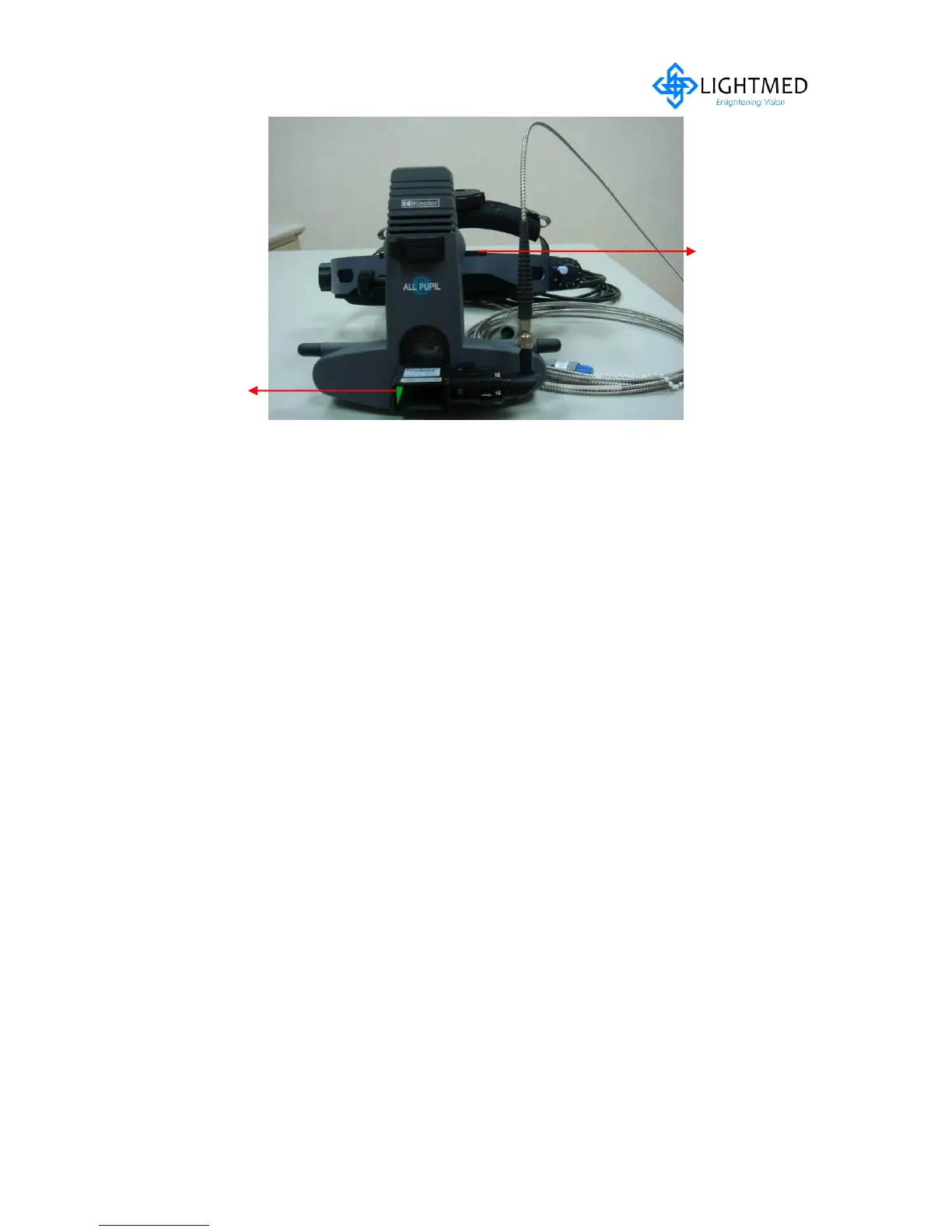

Figure 5.31 (b) LIO Intensity Control Knob
5. Verify the spot size or zoom system is accordingly (from smallest to
largest size)
6. Ensure the different light aperture setting is also functioned accordingly
(refer to fig. 5.31b )
7. Ensure aiming spot light is able to tilt in up/down position (refer to fig.
5.31b )
5.5.2.1 Endoprobes
The Endoprobes are sterilized single use devices so it is not possible to do any testing
of them at installation time. It is recommended that if the doctor is to use
Endoprobes that one unit be used as a reference for checking the Console operation
and for Calibration testing.
Light Aperture
Setting Control
Aiming spot
light up/down
