Linde E25 - Page 107

Service Training
Section 2.6
Page 53

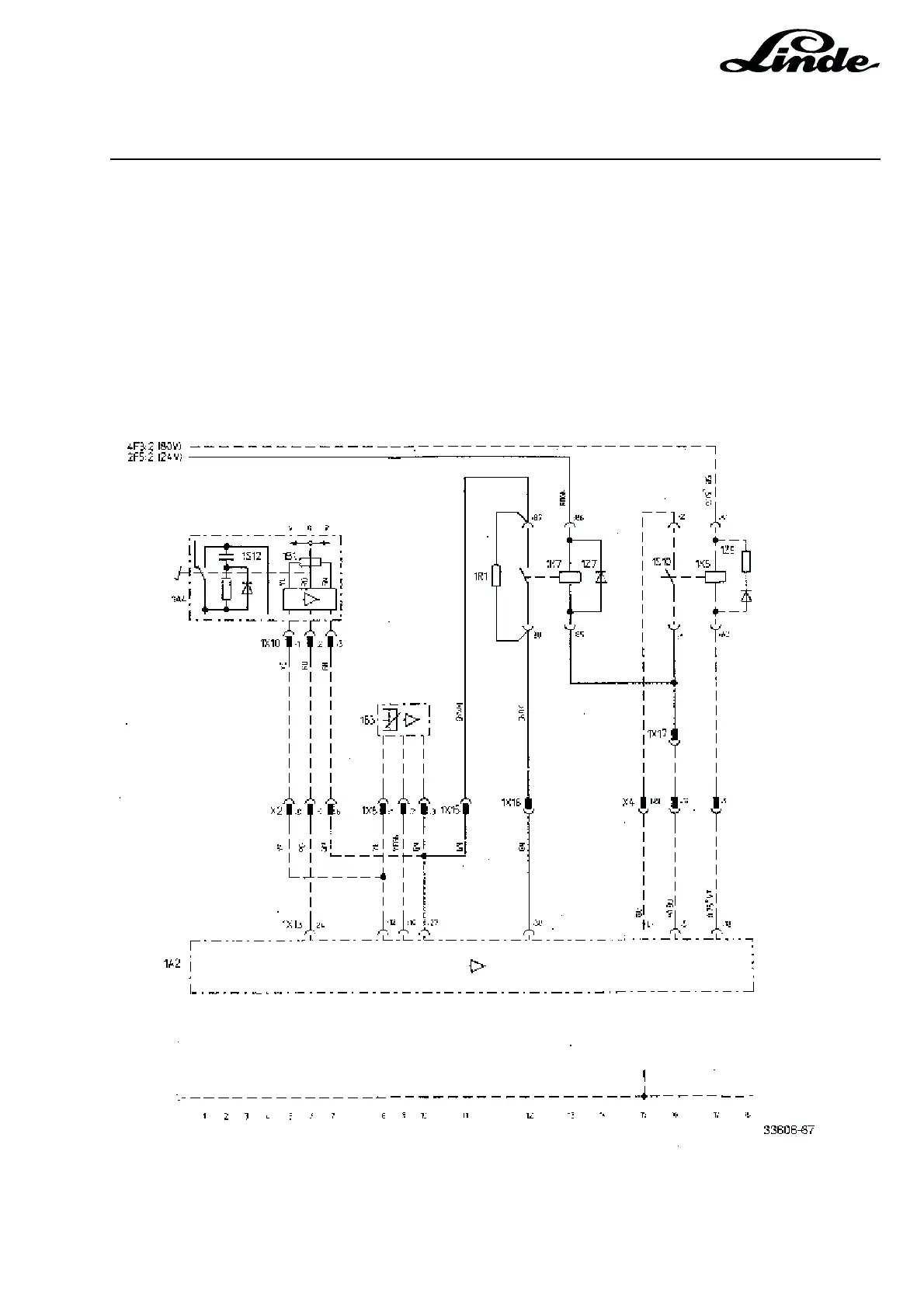

1R1 Resistor
1K7 Relay 24 V
NOTE: The components marked with a broken line are already installed in the truck.
Speed Resistance
6 km/h 26,1 kW
7 km/h 24,9 kW
8 km/h 24,3 kW
9 km/h 23,7 kW
10 km/h 23,2 kW
11 km/h 22,1 kW
12 km/h 21,5 kW
13 km/h 21,0 kW
14 km/h 20,0 kW
15 km/h 18,2 kW
