2.6.6.4.1 MODIFICATION TO SINGLE-PEDAL MODEL
- Modify the traction control to the single-pedal version.
- Remove the steering column cover.
- Disconnect the blue cable on terminal 1X9:2 and plug it on the unused terminal 1X9:4.
- Install directional switch 1S13 on the steering column.

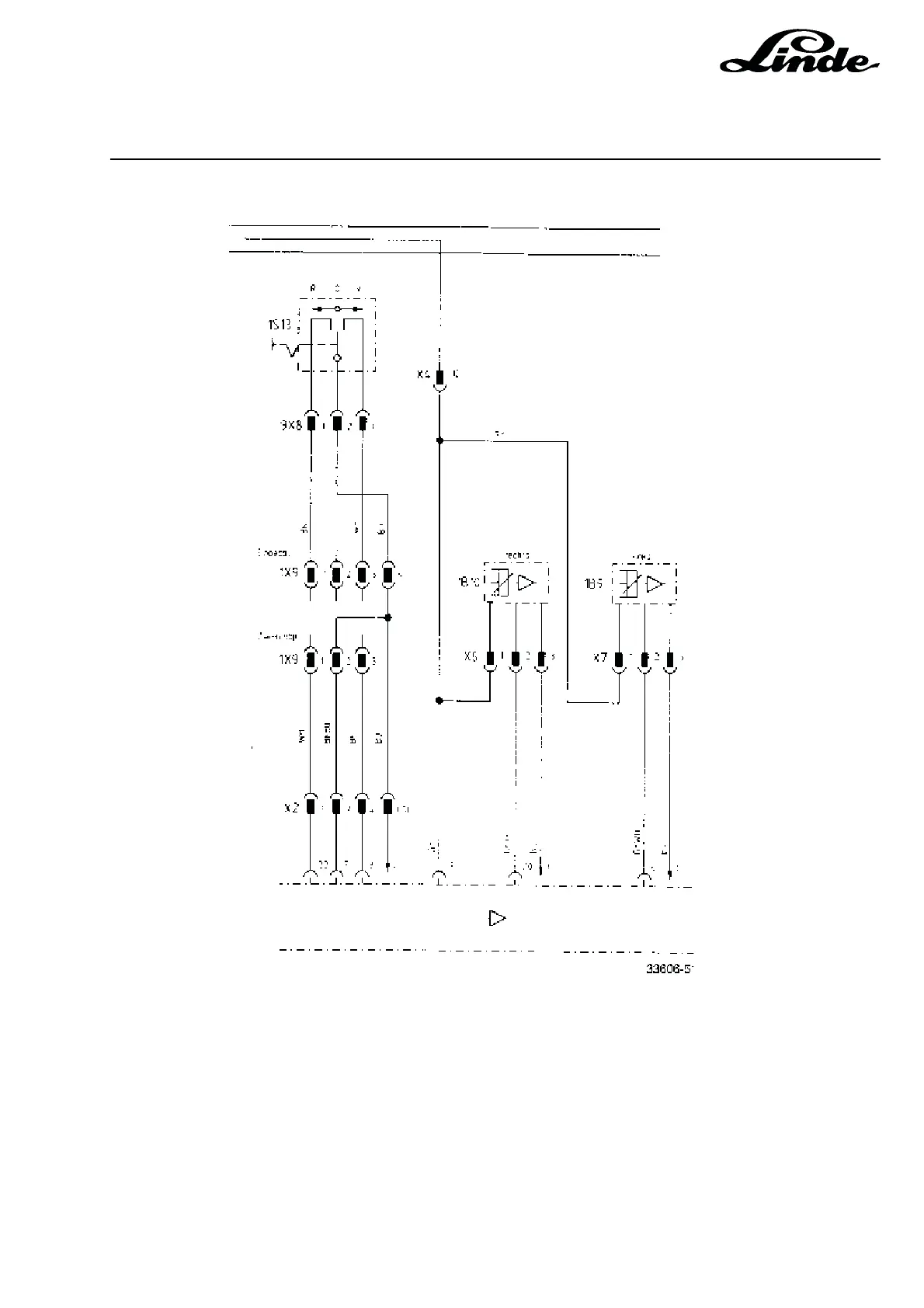

- Connect directional switch 1S13 to flat connector 1X9 according to the wiring diagram.
NOTE: From series 7/95, two indicator lights in the instrument show the preselected direction of travel.
They are controlled directly via the two terminals :1 and :3 on plug 1X9.
