Service Training
Section 2.6
Page 25
2.6.3.5 CONTROL CURRENT FUSES IN MODEL E 25 / E 30

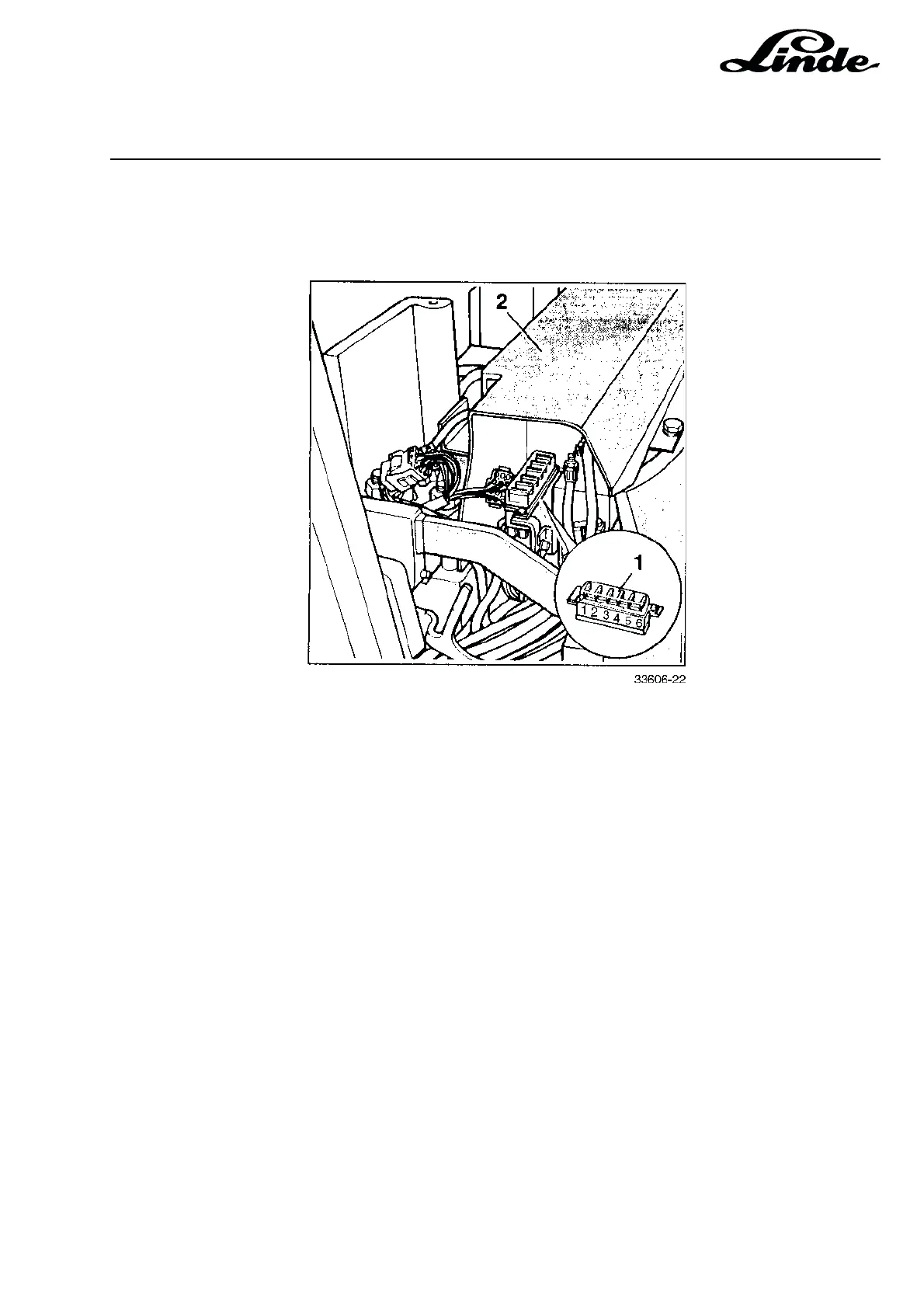

Remove the plastic cover (2) to gain access to the control current fuses (1).
1 1F2 15A Main control fuse
2 6F1 15A Combined instrument
3 4F3 15A Horn, circuit breaker and regenerative current contactor
4 1F4 5A Traction control, curve sensors
5 2F5 5A Control of working hydraulics, steering
6 1F6 5A Fan motors
CAUTION: Use only genuine Linde replacement fuses (high voltage version).
