Linde E25 - Reverse Direction of Travel

Service Training
Section 2.6
Page 43

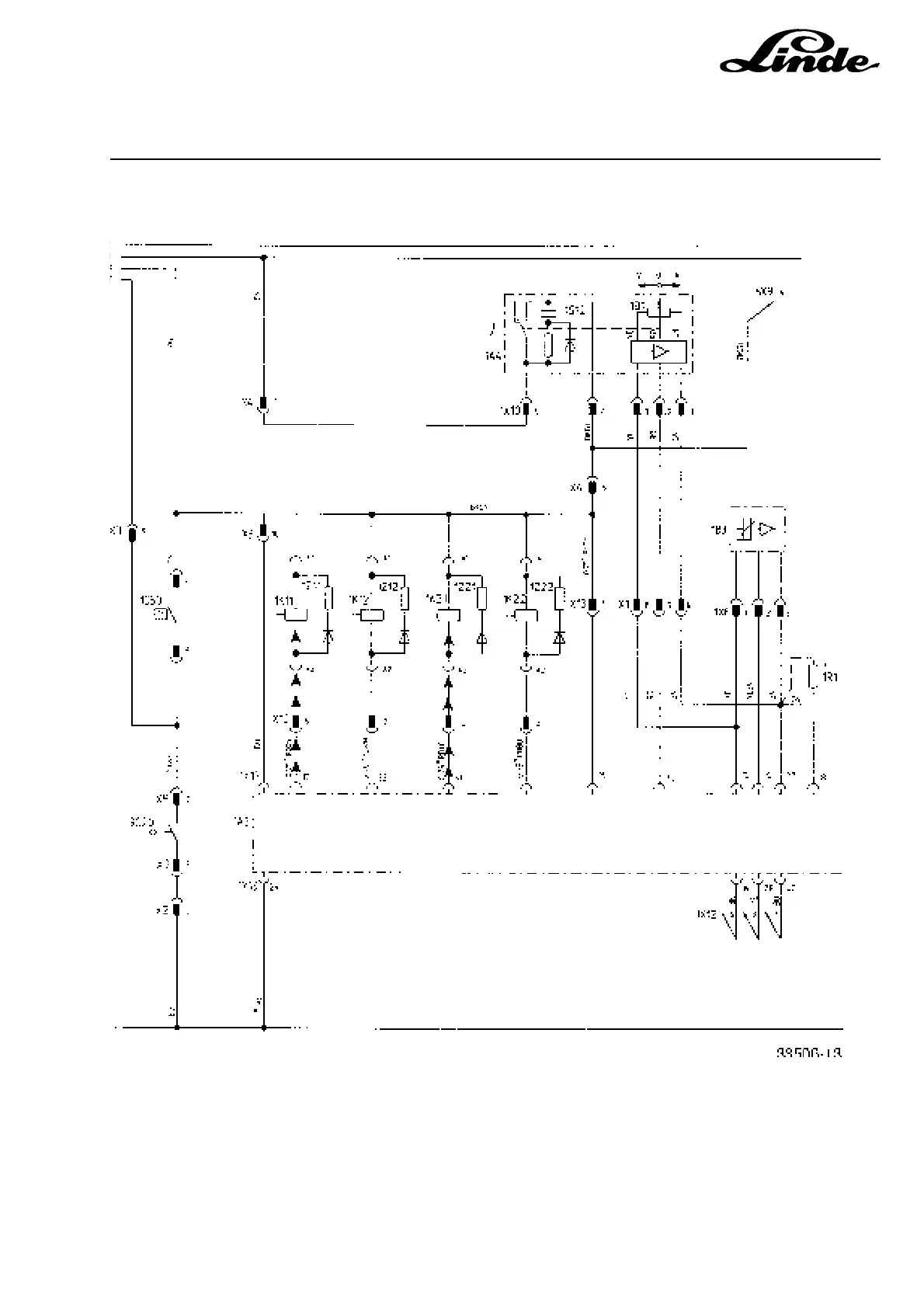

2.6.6.3.2 REVERSE DIRECTION OF TRAVEL
When the accelerator pedal for reverse travel is depressed, the accelerator sensor output voltage at terminal
1X13:24 is over 7.5 Volt. The two transistors for reverse travel now apply battery negative to contactors 1K11
(right-hand motor) and 1K21 (left-hand motor).
