Linde E25 - Power Supply

Service Training
Section 2.6
Page 36
When key switch S1 is turned on, the voltage converter is connected to the primary side of battery positive.
The electronic traction control unit is supplied with 24 Volt at 1X13:13 via connector X8:3 and fuse 1F4.
Battery negative is connected to the electronic traction control unit via the auxiliary source terminal 1A1 of
the compact module.

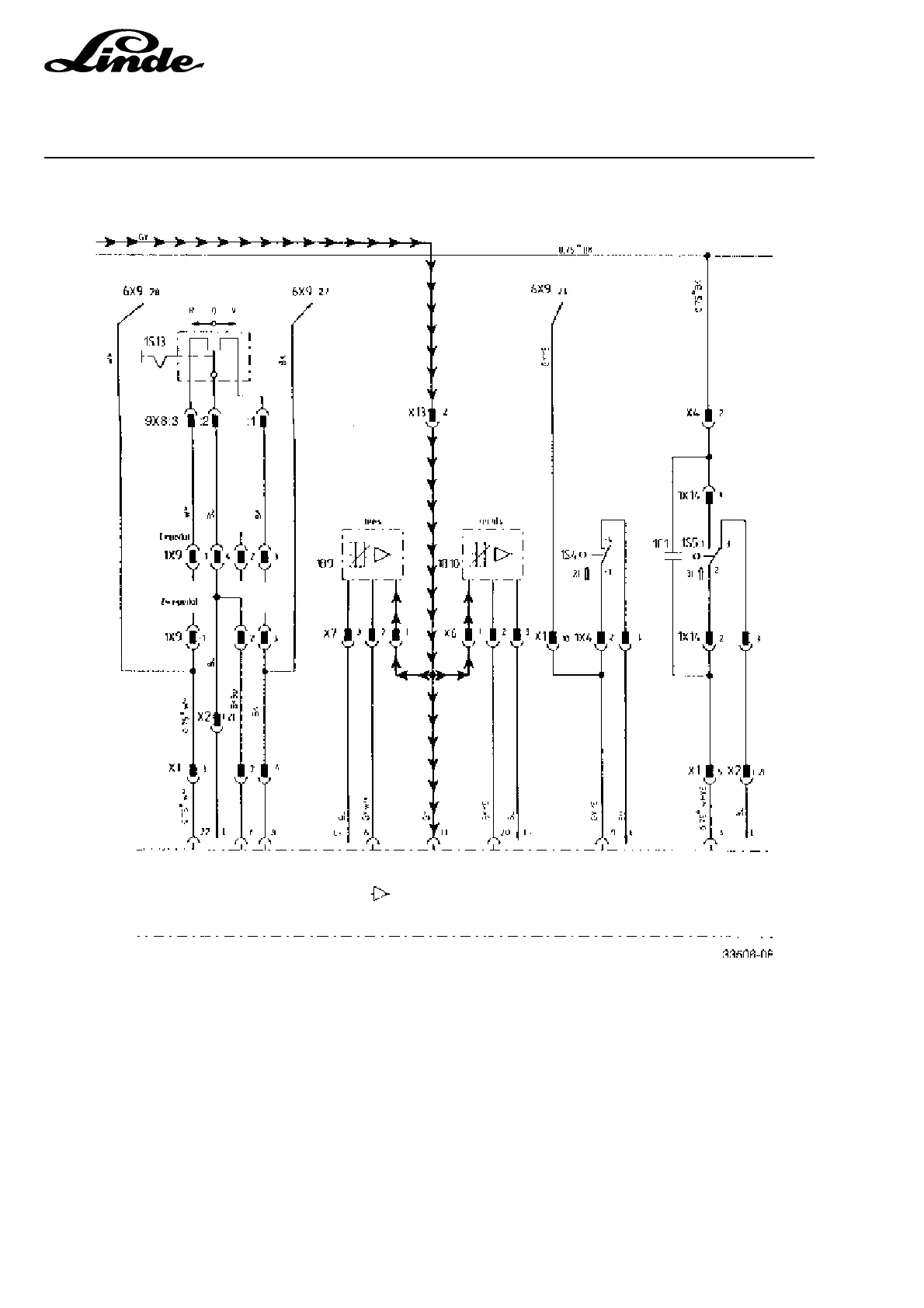

24 V from voltage converter U1
2.6.6.1 POWER SUPPLY
