Linde E25 - Installing the Planetary Hub Reduction Gearbox on the Traction Motor

Service Training
Section 2.2
Page 7

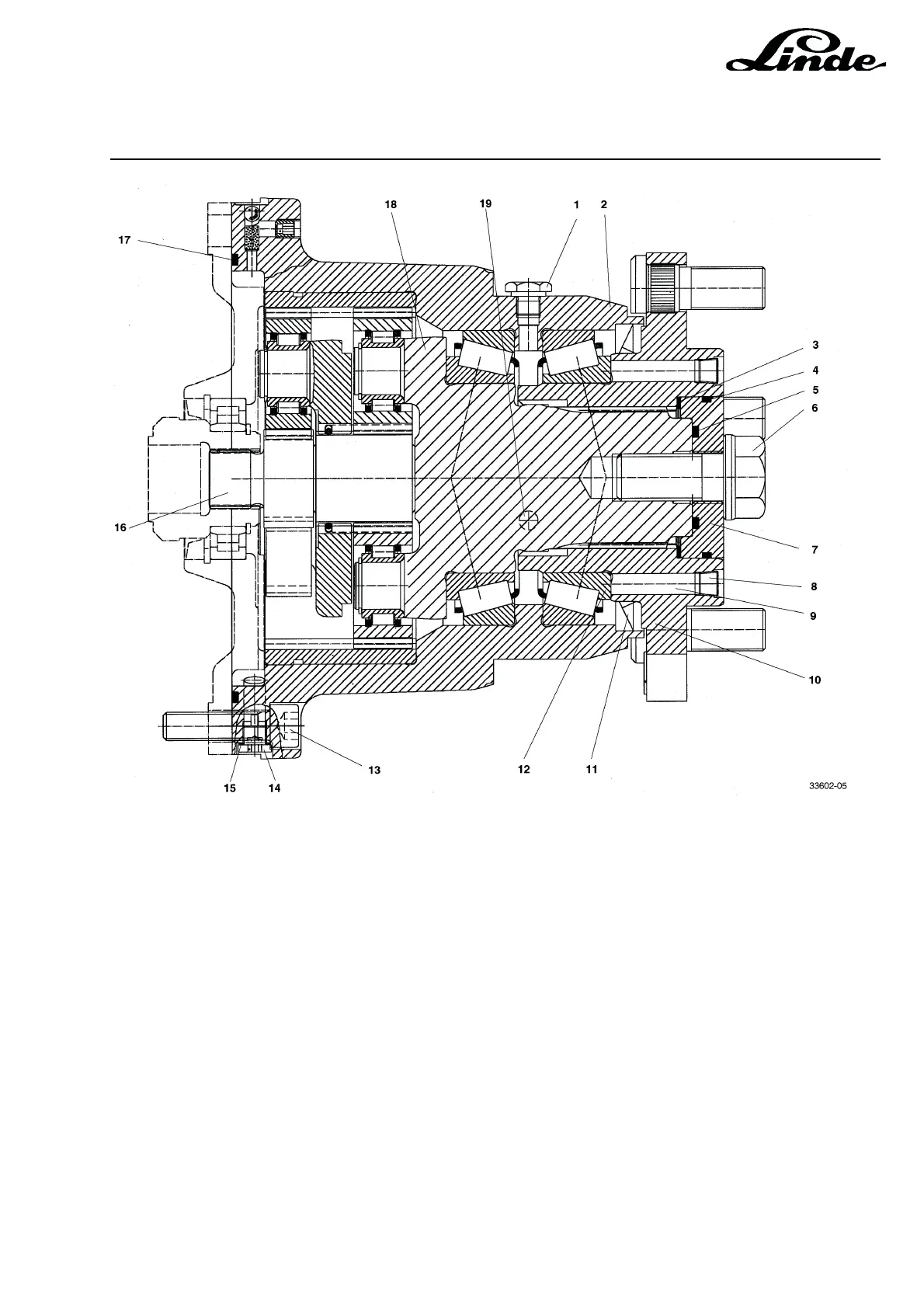

1 Plug
2 Housing
3 Shim
4 O-ring
5 O-ring
6 Hexagon head screw
7 Washer
8 Plug
9 Hole
10 Flange
11 Shaft sealing ring
12 Bearing inner race
13 Socket head screw
14 Oil drain plug
15 Sealing ring
16 Sun gear
17 O-ring
18 Planetary carrier
19 Plug
2.2.3.4 INSTALLING THE PLANETARY HUB REDUCTION GEARBOX ON THE TRACTION MOTOR
- Install the O-ring (17) in the housing.
- Position the planetary hub reduction gearbox on the bearing plate with the plug (14) showing down, being
sure that the holes are in alignment.
- When installing the gearbox, take care that the sun gear (16) meshes with the internal toothing of the motor
shaft without damage.
- Install the 14 socket head screws (13) and torque them to 86 Nm.
- Install the oil drain plug (14) and copper sealing ring (15) and torque to 18 Nm.
- Fill 250 ml of gear oil SAE 85W/90 into the filler plug bore.
- Install the plug (1) and tighten to 18 Nm.
