Linde E25 - Power Module for Lift Control

Service Training
Section 2.6
Page 4

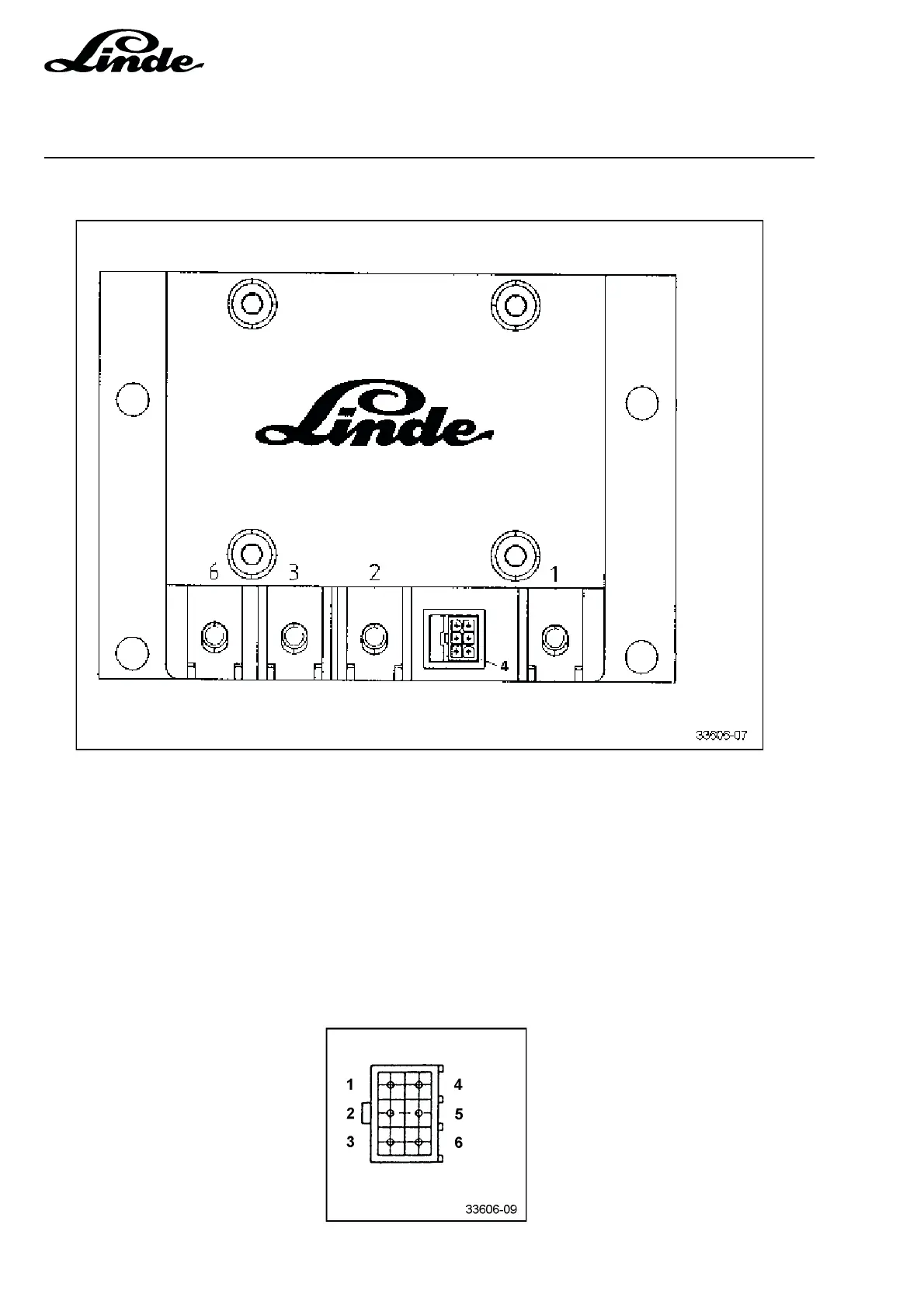

2.6.1.2 POWER MODULE FOR LIFT CONTROL
Main terminals:
1 Source
2 Drain
3 Anode terminal of freewheel diode
6 Cathode terminal of freewheel diode
Connector (4)
1 Auxiliary source S
2 Not used
3 Gate
4 Not used
5 Not used
6 Auxiliary drain D
