Linde E25 - Page 59

To Next Page

To Previous Page

Service Training

Section 2.6

Page 5

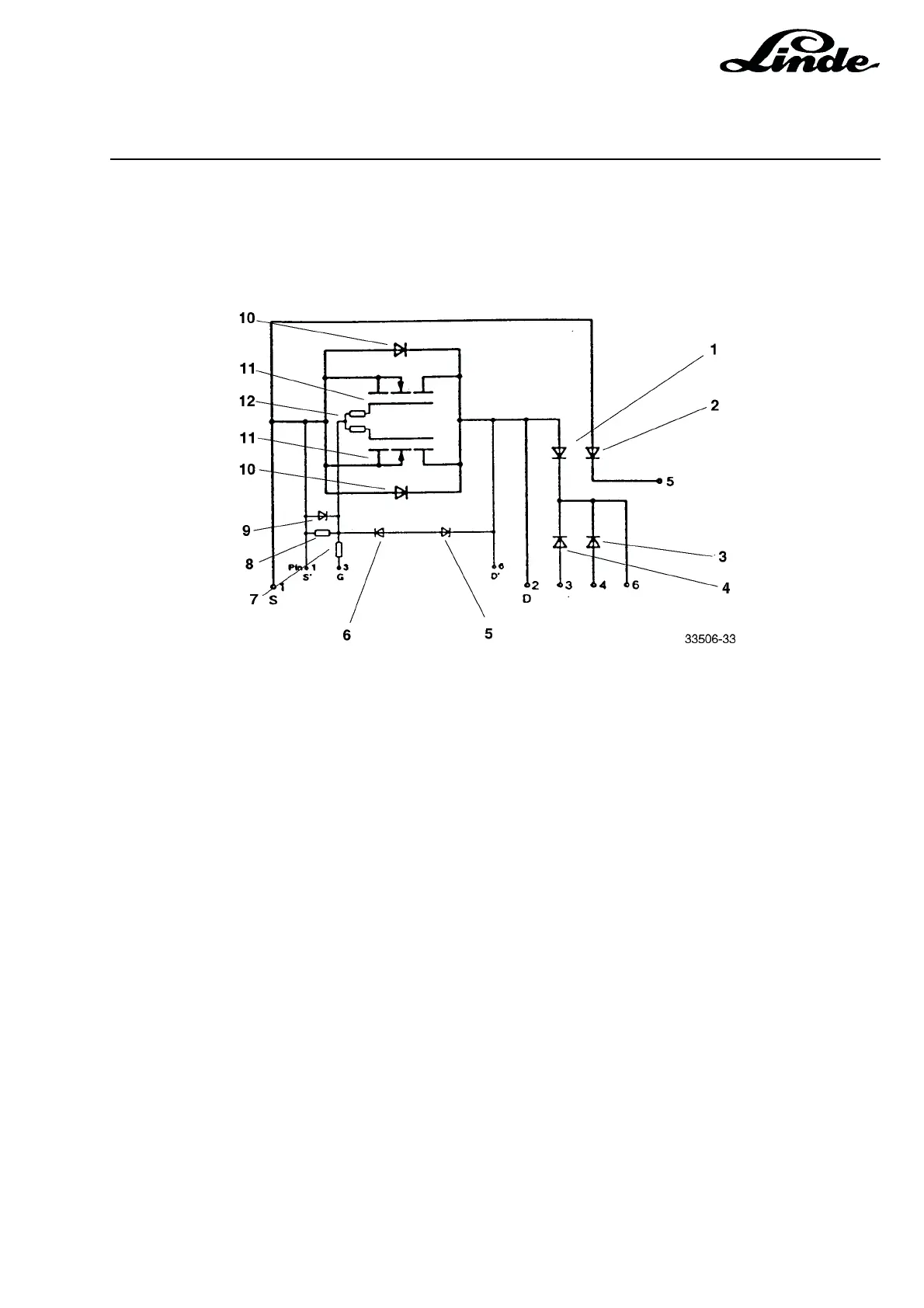

1 Freewheel diode

2 Braking diode (not used)

3 Zener diode

4 Diode

5 Ballast Zener diode

6 Leakage resistor

7 Zener diode

8 Protective diode

9 MOSFET transistor

10 Gate ballast resistor

Specifications:

Voltage: 80 V

Max. current: 350 A at 70 °C
