Linde E25 - Compact Power Module; Traction Power Module

Service Training
Section 2.6
Page 2
2.6.1 COMPACT POWER MODULE
2.6.1.1 TRACTION POWER MODULE

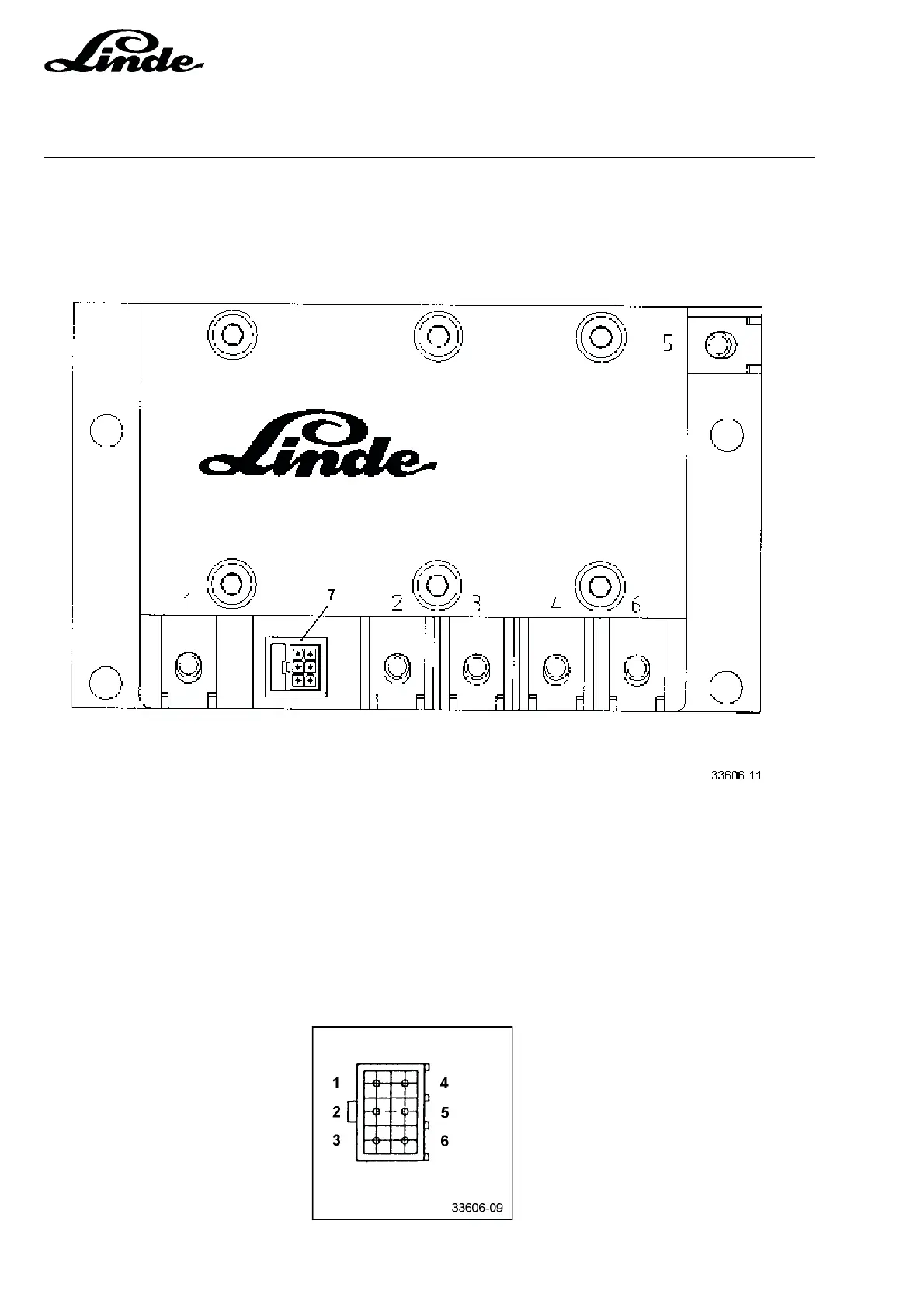

Main terminals:
1 Source
2 Drain
3 Anode of brake diode 1V51 (for motor 1M1)
4 Anode of brake diode 1V52 (for motor 1M2)
5 Anode of regenerative current diode 1V53
6 Cathode terminals of freewheel and brake diodes
Connector (7)
1 Auxiliary source S
2 Not used
3 Gate
4 Not used
5 Not used
6 Auxiliary drain D
