Linde E25 - Fuses; Main Circuit Fuses in Model E 20; Main Circuit Fuses in Model E 25; E 30

Service Training
Section 2.6
Page 22

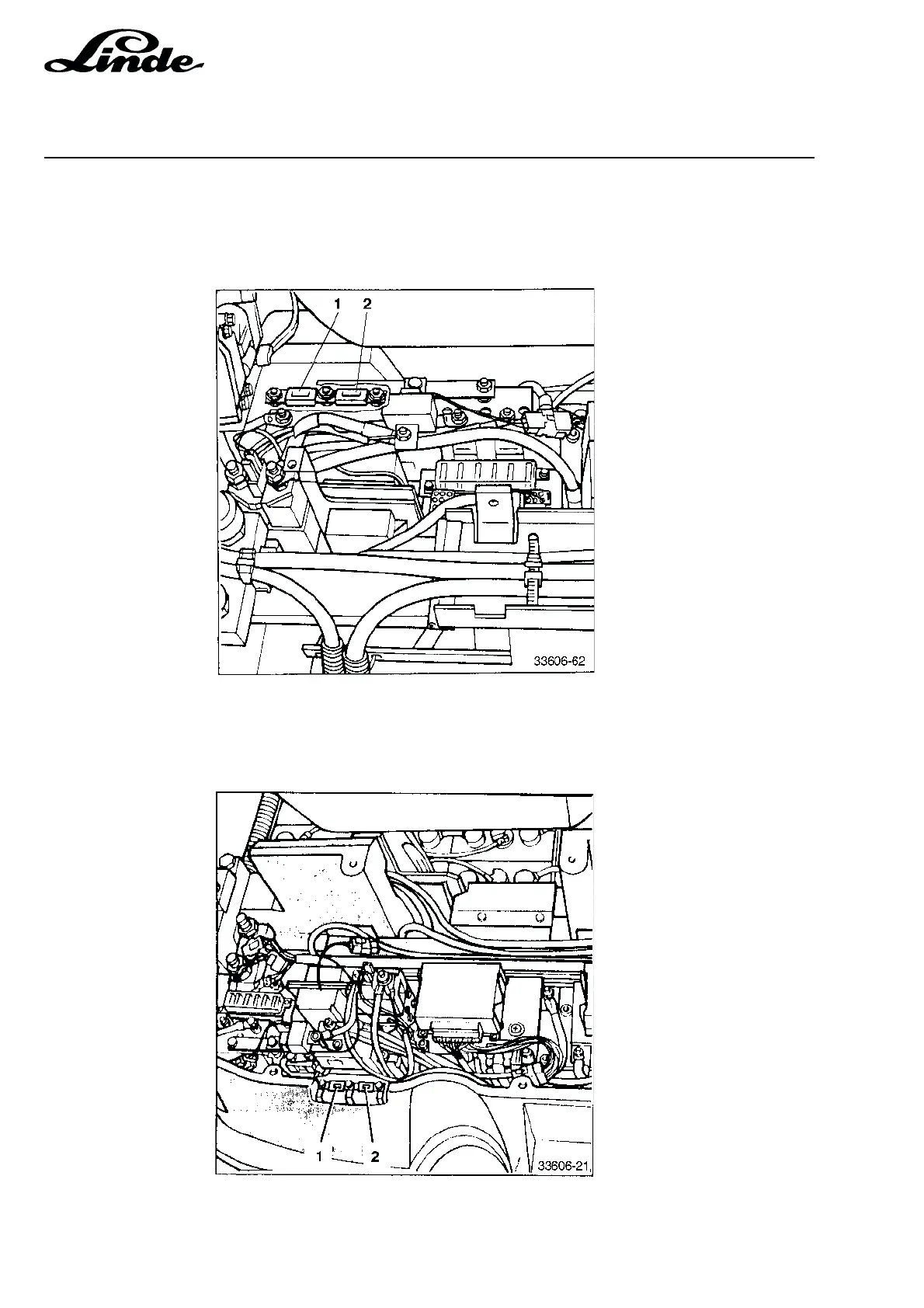

1 Main circuit fuse for traction motors 1F1, 355 A
2 Main circuit fuse for pump motor 2F1, 250 A
3 Main circuit fuse for regenerative braking 1F3, 100 A, located on mounting plate for RH diode 1V1
2.6.3.2 MAIN CIRCUIT FUSES IN MODEL E 25 / E 30
1 Main circuit fuse for pump motor 2F1, 250 A
2 Main circuit fuse for traction motors 1F1, 355 A
3 Main circuit fuse for regenerative braking 1F3, 100 A, located on mounting plate for RH diode 1V1
2.6.3 FUSES
2.6.3.1 MAIN CIRCUIT FUSES IN MODEL E 20
Remove the cover to gain access to the main circuit fuses.
