Linde E25 - Page 25

Service Training
Section 2.2
Page 9

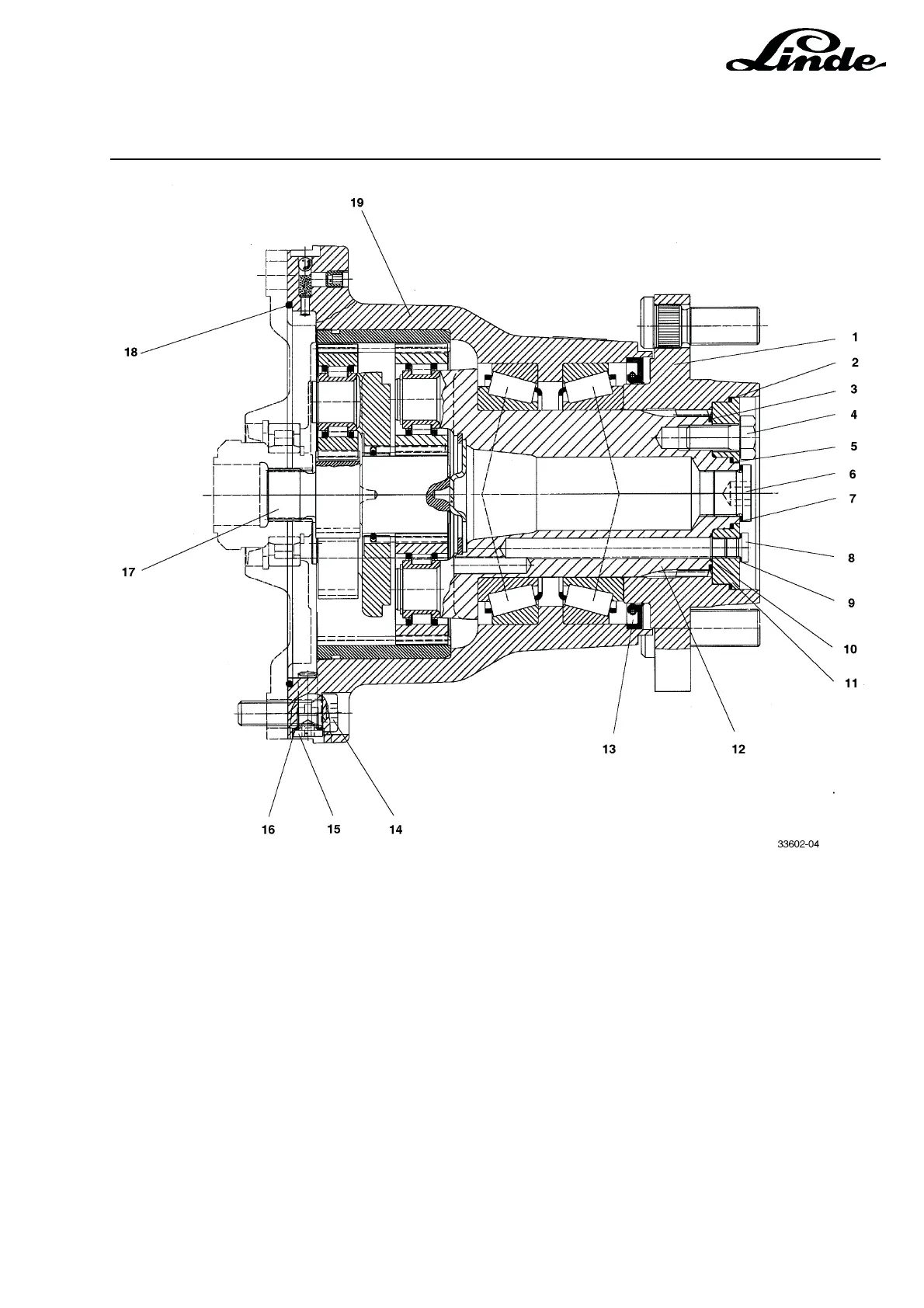

1 Flange
2 O-ring
3 O-ring
4 Hexagon head screw
5 O-ring
6 Plug
7 Sealing ring
8 Plug
9 Sealing ring
10 O-ring
11 Washer
12 Planetary carrier
13 Shaft sealing ring
14 Socket head screw
15 Oil drain plug
16 Sealing ring
17 Sun gear
18 O-ring
19 Housing
