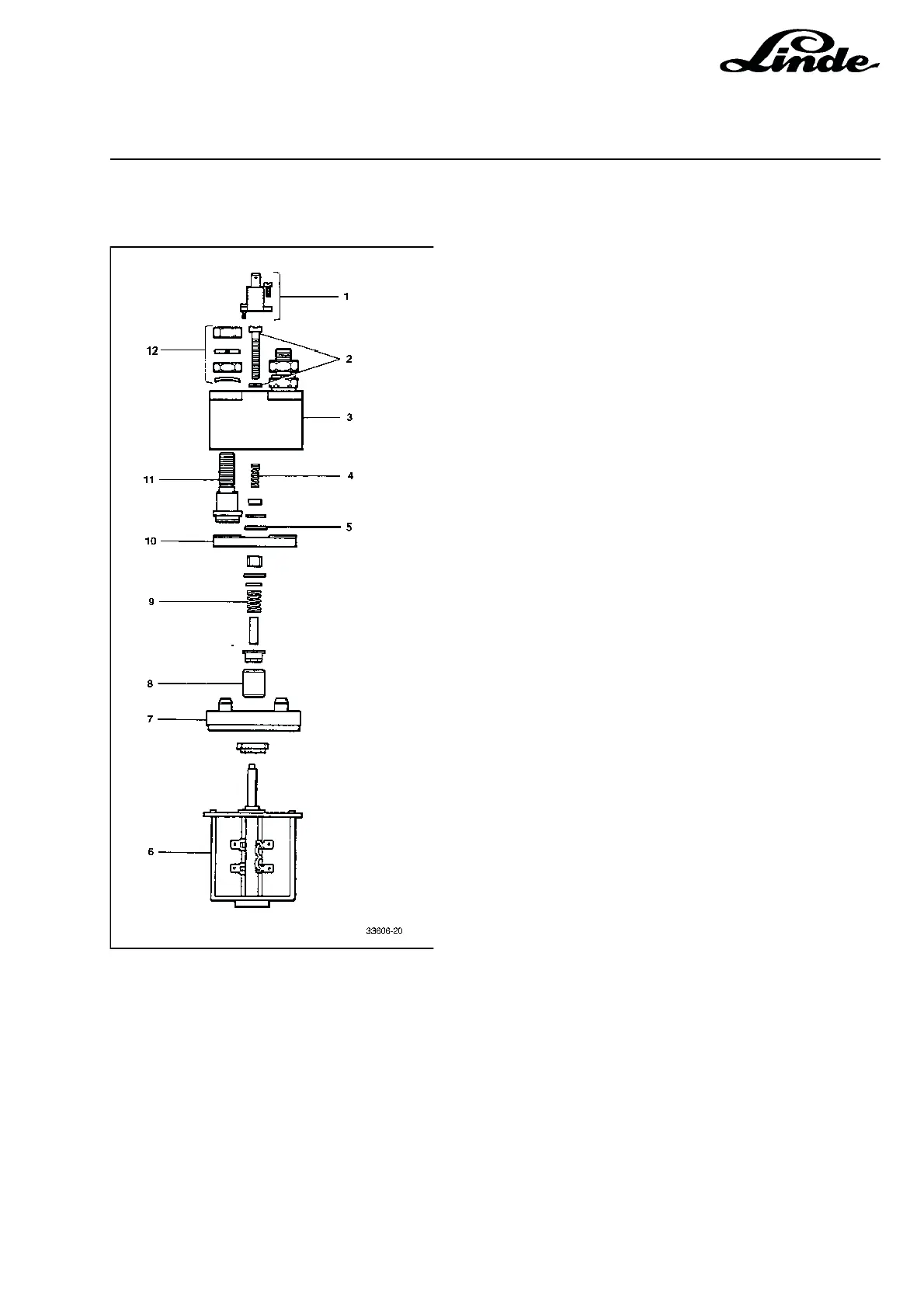

1 Microswitch
2 Screws and washers
3 Cover
4 Spring
5 Washer
6 Coil
7 Plastic part
8 Guide
9 Spring
10 Tip plate
11 Fixed tip
12 Nuts and washers
REPLACING THE CONTACTOR TIPS
- Remove the hexagonal nuts (12) and washers, disconnect the electric cables.
- Remove the microswitch from the regenerative braking contactor.
- Remove the Phillips screws (2) and washers and take off the cover (3). (Note the position of the + mark.)
- Remove the movable tip (4, 5, 9 and 10)).
- Remove the tip plates (10).
- Renew the plastic part (7).
- Install new tip plate (10).
- Install new movable tip (4, 5, 9 and 10).
- Install the cover (3), ensuring that the + mark is correctly positioned.
- Install the electric cables.
NOTE: The contactor tip kit consists of items 4, 5, 7, 9, and 10.
