Operation 4
Working under load
Working under load
Before taking up a load

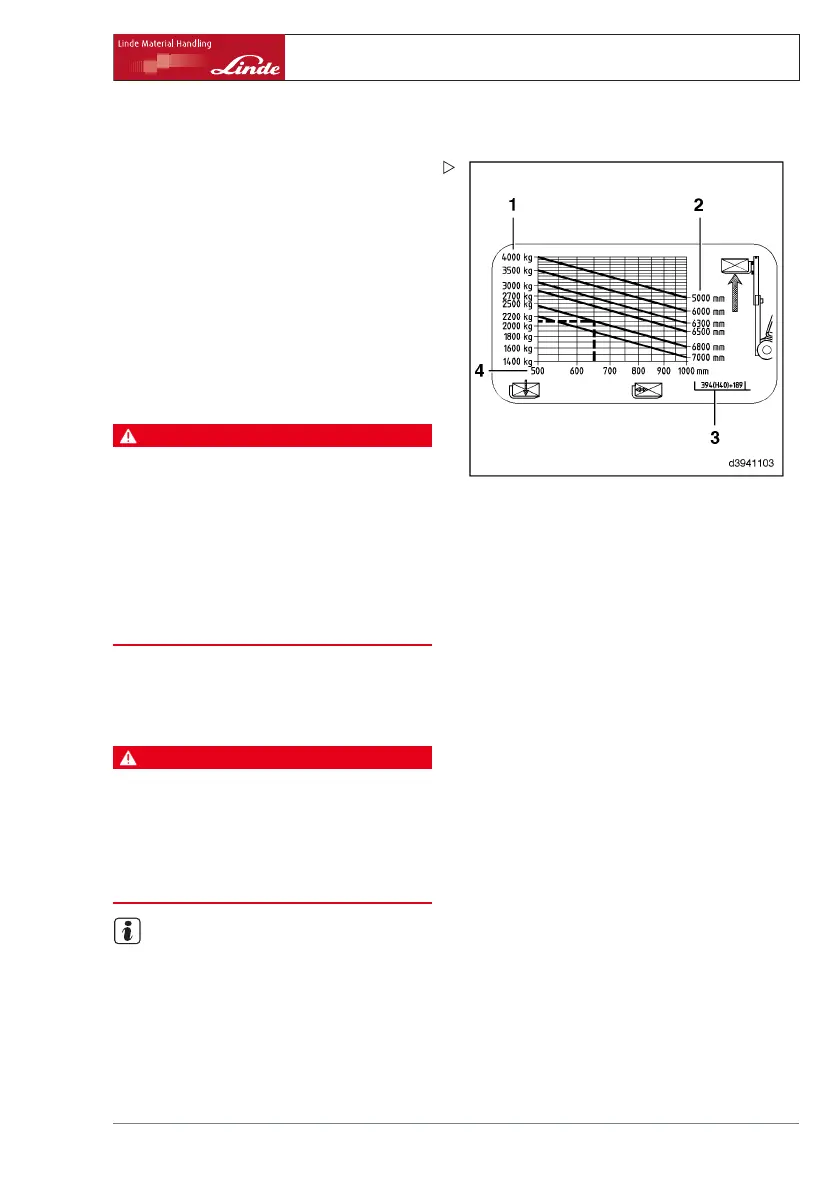

Before taking up a load, check the load
capacity diagram above the switch console
on the top right in the overhead guard.
1
Max. weight of permissible loads in
kg
2
Height of lift in mm
3
Series designation of truck with max.
load capacity and lift mast series
4
Distance between load centre of
gravity and fork back in mm
DANGER
The residual load capacity of a truck is determined
by the lift mast type (standard, duplex, triplex), the
lift height of the installed mast, the tyres on the
front axle, the use of attachments or additional
equipment and the backwards tilt restriction. If one
of these parameters is changed, this can have a
considerable effect on the residual load capacity.
For some conversions, the new residual load
capacity of the truck must be determined and
the load capacity diagram must be changed as
necessary. Contact your authorised dealer.
The max. permissible load is determined
by the distance between the load centre of
gravity and the back of the fork arms, and the
lift height.
DANGER
The values specified in the load capacity diagram
and capacity rating plate apply to compact homo-
genous loads and must not be exceeded, as this
will impair the stability of the truck and the rigidity of
theforkarmsandliftmast.
When using attachments, observe the capacity
rating plate for each attachment.
NOTE
Observe the load restriction and consult your
authorised dealer.
•
before transporting off-centre or swinging
loads
•
Before transporting loads with the lift mast
tilted forward or the load not close to the
ground
Operating Instructions – 394 807 10 01 EN – 07/2011 91
